This set enables an artemis Gen.1 to be upgraded to TRINITY 2.includes:K2.0042636 1x TRH-2, TRINITY 2 Head, 16pin, X-BodyK2.0042631 1x TRH-2 Ring Main Cable, Standard, 0,65m/25.5inK2.0040347 1x DUB-3, Dovetail Utility Base / 3K2.0041201 1x Stabilizer Adapter Mount SAM-ZeroK2.0039443 1x Cam Pwr Gen.2, ALEXA 35, Mini, AMIRA, 24 V, 8-pinK2.0039448 1x Cam Pwr Gen.2, 4-pin XLR, 12 VK2.0041984 1x 12G HD SDI BNC Cable, 0,63m/25inK2.0010569 1x Gimbal Handle Extender for 1.8in GimbalK2.0040332 1x Post Main Cable, 3B, 16pinK2.0038249 1x TST-2, ARTEMIS Top Stage, Gen. 2, 16 pinK2.0037739 1x BHM-2, Battery Hanger Module, Gen.2K2.0037771 1x Power Cable, BHM-2 to TST, 12V, 24V, Bat. DataK2.0041327 1x Support Rods 305mm, 12in, 19mmK2.0040790 1x Support Rods 120mm, 4.7in, 19mmK2.0037757 1x Hinge for Battery Hanger Module, Gen.2, 19mm rodsK2.0039300 2x BMS-2, Battery Mounting Base, Gen.2, (naked)K2.0036377 1x TPD-2, TRINITY Pendulum Gen. 2K2.0033569 4x Counterweight, CW-1, 150grK2.0041090 1x RCP-3, Remote Control PanelK2.0042837 1x CSS Clamp Bridge 52, 19mmK2.0043883 1x RCP-3, FS Can Bus Cable, 25cm/10inNOTETo complete the initial order, at least one of the mandatory battery mounting, joystick and monitor sets must be ordered. The customer can only put the system into operation if the basic set and the battery, joystick and monitor sets were ordered and delivered together.Mandatory battery sets: K0.0044355, K0.0044356, K0.0044357Mandatory joystick sets: K0.0044362, K0.0044363Mandatory monitor sets:K0.0048722, K0.0048707, K0.0048742
This set enables an ARTEMIS 2 to be upgraded to TRINITY 2.includes:K2.0042636 1x TRH-2, TRINITY 2 Head, 16pin, X-BodyK2.0042631 1x TRH-2 Ring Main Cable, Standard, 0,65m/25.5inK2.0040347 1x DUB-3, Dovetail Utility Base / 3K2.0041201 1x Stabilizer Adapter Mount SAM-ZeroK2.0039443 1x Cam Pwr Gen.2, ALEXA 35, Mini, AMIRA, 24 V, 8-pinK2.0039448 1x Cam Pwr Gen.2, 4-pin XLR, 12 VK2.0041984 1x 12G HD SDI BNC Cable, 0,63m/25inO5.15642.0 1x Hex Key 3mm/0.11inK2.0010569 1x Gimbal Handle Extender for 1.8in GimbalK2.0036377 1x TPD-2, TRINITY Pendulum Gen. 2K2.0033569 4x Counterweight, CW-1, 150grK2.0041090 1x RCP-3, Remote Control PanelK2.0042837 1x CSS Clamp Bridge 52, 19mmK2.0043883 1x RCP-3, FS Can Bus Cable, 25cm/10inNOTETo complete the initial order, at least one of the mandatory joystick and monitor/monitor mounting sets must be ordered.The customer can only put the system into operation if the basic set and the joystick and monitor/monitor mounting sets were ordered and delivered together.Mandatory joystick sets:Master Grip TRINITY 2, One Controller Set (K0.0044362)Master Grip TRINITY 2, Two Controllers Set (K0.0044363) Mandatory monitor sets:5in Transvideo Starlite Monitor Set, TRINITY 2 (K0.0048722)5in Small HD Cine 5 Monitor Set, TRINITY 2 (K0.0048707)Universal Monitor Mounting Set, TRINITY 2 (K0.0048742)
360 EVO upgrade option for existing SRH-3 systems.includes:K2.0050593 1x 360 EVO Upgrade for SRH-3K2.0039443 1x Cam Pwr Gen.2, ALEXA 35, Mini, AMIRA, 24 V, 8-pinK2.0039448 1x Cam Pwr Gen.2, 4-pin XLR, 12 VK2.0042681 1x TRH-2 Ring Main Cable, Long, 0,75m/29.5inNOTEThe upgrade can only be carried out by a local ARRI service.
360 EVO upgrade option for existing SRH-360 systems.includes:K2.0050591 1x 360 EVO Upgrade for SRH-360K2.0039443 1x Cam Pwr Gen.2, ALEXA 35, Mini, AMIRA, 24 V, 8-pinK2.0039448 1x Cam Pwr Gen.2, 4-pin XLR, 12 VK2.0042681 1x TRH-2 Ring Main Cable, Long, 0,75m/29.5inNOTEThe upgrade can only be carried out by a local ARRI service.
Ready to work set, based on the second-generation ARRI digital encoder head, DEH-2.Including LBUS controllers, like the OCU-1 for focus and the Master Grip for zoom.As also all needed cables and brackets and mounts.The high-resolution ARRI encoded head for VR, AR and ARRI’s Mixed Reality productions and applications is equipped with absolute encoders providing 4 million counts per turn for both Pan and Tilt. The integrated LBUS communication supports fast and easy system integration in the CSS workflow.An exceptional new fluid module in both Pan and Tilt modes ensures smooth movements, with perfect starts and stops, the drag system allows a wide variety from almost freewheeling in fast action movements to maximum resistance for perfect long focal shoots. Counterbalance performs perfect balance at any angle from 0 to +/- 90 degrees.All operating knobs and levers are conveniently located and easy to reach, with a special care for ergonomics.Includes:K2.0044672 1x DEH-2, Digital Encoder Head 2K2.0020002 1x Operator Control Unit OCU-1 Basic SetK2.0020003 1x OCU-1 Rosette BracketK2.0009493 1x Master Grip Right Rocker MRR-1K2.0048586 2x Cartoni special pan bar 20mmK2.0012919 2x Handgrip Pan Bar Adapter 20mmK2.0006752 2x Cable LBUS - LBUS (0.8m/2.6ft)K2.0006753 2x Cable LBUS - LBUS (1.5m/5ft)Interfaces: 2 x LBUS / 1 x BiSSWeight: 10.5 kg / 23 lbsMinimum Payload Capacity: 3 kg / 7 lbsMaximum Payload Capacity: 30 kg / 66 lbsBowl Diameter: FlatFluid Drag: ContinuousCounterbalance: ContinuousPan Range: 360 degreeTilt Range: +/- 90 degreeTemperature Range: -40 degree - +60 degree / -40 degree F - 140 degree F
Ready to work set, based on the second-generation ARRI digital encoder head, DEH-2.Including LBUS controllers, like the OCU-1 for focus and the Master Grip for zoom.As also all needed cables and brackets and mounts.The high-resolution ARRI encoded head for VR, AR and ARRI’s Mixed Reality productions and applications is equipped with absolute encoders providing 4 million counts per turn for both Pan and Tilt. The integrated LBUS communication supports fast and easy system integration in the CSS workflow.An exceptional new fluid module in both Pan and Tilt modes ensures smooth movements, with perfect starts and stops, the drag system allows a wide variety from almost freewheeling in fast action movements to maximum resistance for perfect long focal shoots. Counterbalance performs perfect balance at any angle from 0 to +/- 90 degrees.All operating knobs and levers are conveniently located and easy to reach, with a special care for ergonomics.Includes:K2.0044672 1x DEH-2, Digital Encoder Head 2K2.0020002 1x Operator Control Unit OCU-1 Basic SetK2.0020003 1x OCU-1 Rosette BracketK2.0009490 1x Master Grip Left Rocker MLR-1K2.0048586 2x Cartoni special pan bar 20mmK2.0012919 2x Handgrip Pan Bar Adapter 20mmK2.0006752 2x Cable LBUS - LBUS (0.8m/2.6ft)K2.0006753 2x Cable LBUS - LBUS (1.5m/5ft)Interfaces: 2 x LBUS / 1 x BiSSWeight: 10.5 kg / 23 lbsMinimum Payload Capacity: 3 kg / 7 lbsMaximum Payload Capacity: 30 kg / 66 lbsBowl Diameter: FlatFluid Drag: ContinuousCounterbalance: ContinuousPan Range: 360 degreeTilt Range: +/- 90 degreeTemperature Range: -40 degree - +60 degree / -40 degree F - 140 degree F
The TRINITY 2 system provides the user with numerous creative opportunities. With the introduction of the new Pan Axis Module, not only the creative but also the economic possibilities for the user and film production are enhanced by a novel feature. As the name suggests, the Pan Axis Module expands the two-axis TRINITY 2 into a compact, powerful and therefore fully fledged three-axis remote head.includes:K2.0050764 1x TRINITY 2 Pan Axis ModuleK2.0050770 1x Communication Cable, TRINITY 2 Pan AxisK2.0040332 1x Post Main Cable, 3B, 16pinK2.0019298 1x SRH Mitchell Mount, MetricK2.0019302 1x SRH FS CAN Bus Cable, 10m/32.8ftK2.0019306 1x SRH High-Capacity Battery Power Cable, 12V/24V, 0.5m/1.64ftK2.0021427 1x SRH High-Capacity Battery Power Cable 24V, 3-pin XLR, 10m/33ftK2.0021428 1x SRH High-Capacity Battery Power Cable 12V, 4-pin XLR, 10m/33ftK2.0038756 1x Wrench for SRH Castle Nut, Mitchell MountNOTEThe TRINITY 2 Pan Axis Module can only be used with an existing TRINITY 2 head after it has been upgraded with a new additional communication socket panel interface (K2.0050768).
Second generation ARRI digital encoder head, DEH-2.The high-resolution ARRI encoded head for VR, AR and ARRI’s Mixed Reality productions and applications is equipped with absolute encoders providing 4 million counts per turn for both Pan and Tilt. The integrated LBUS communication supports fast and easy system integration in the CSS workflow.An exceptional new fluid module in both Pan and Tilt modes ensures smooth movements, with perfect starts and stops, the drag system allows a wide variety from almost freewheeling in fast action movements to maximum resistance for perfect long focal shoots. Counterbalance performs perfect balance at any angle from 0 to +/- 90 degrees.All operating knobs and levers are conveniently located and easy to reach, with a special care for ergonomics.Interfaces: 2 x LBUS / 1 x BiSSWeight: 10.5 kg / 23 lbsMinimum Payload Capacity: 3 kg / 7 lbsMaximum Payload Capacity: 30 kg / 66 lbsBowl Diameter: FlatFluid Drag: ContinuousCounterbalance: ContinuousPan Range: 360 degreeTilt Range: +/- 90 degreeTemperature Range: -40 degree - +60 degree / -40 degree F - 140 degree F
This set enables an artemis Gen.1 to be upgraded to ARTEMIS 2.includes:K2.0041201 1x Stabilizer Adapter Mount SAM-ZeroK2.0039443 1x Cam Pwr Gen.2, ALEXA 35, Mini, AMIRA, 24 V, 8-pinK2.0039448 1x Cam Pwr Gen.2, 4-pin XLR, 12 VK2.0041984 1x 12G HD SDI BNC Cable, 0,63m/25inK2.0038249 1x TST-2, ARTEMIS Top Stage, Gen. 2, 16 pinK2.0040332 1x Post Main Cable, 3B, 16pinK2.0039975 1x BST-2, ARTEMIS 2 Bottom Stage, 16pinK2.0037739 1x BHM-2, Battery Hanger Module, Gen.2K2.0037771 1x Power Cable, BHM-2 to TST, 12V, 24V, Bat. DataK2.0041327 1x Support Rods 305mm, 12in, 19mmK2.0040790 1x Support Rods 120mm, 4.7in, 19mmK2.0037757 1x Hinge for Battery Hanger Module, Gen.2, 19mm rodsK2.0039300 2x BMS-2, Battery Mounting Base, Gen.2, (naked)O5.15642.0 1x Hex Key 3mm/0.11inNOTETo complete the initial order, at least one of the mandatory battery mounting must be ordered. The customer can only put the system into operation if the basic set and the battery were ordered and delivered together.Mandatory battery sets:Gold Mount for BMS-1 / BMS-2, Set (K0.0044355)V-Mount for BMS-1 / BMS-2, Set (K0.0044356)B-Mount for BMS-2, Set (K0.0044357) Recommended optional monitor sets: 7in Transvideo Stargate Monitor Set (K0.0044370)7in Small HD 703 Monitor Set (K0.0044371)
The ARRI Digital Encoder Head is the perfect way to intuitively control the Stabilized Remote Head 360 EVO and SRH-3 and SRH-360. The DEH-1 was specially manufactured according to ARRI specifications, with features such as special damping performance and adjustable pan bars. The DEH-1 uses LBUS communication to control the 360 EVO and SRH-3 and the SRH-360, especially for broadcast applications, but the LBUS also enables the use of Master Grips and the OCU-1 to control focus and zoom. With the DEH-1, you can control all functions of the remote head, as well as focus and zoom, using a single cable.includes:K2.0022594 1x DEH-1 Digital Encoder HeadK2.0009363 1x Master Grip Left Wheel MLW-1K2.0009493 1x Master Grip Right Rocker MRR-1K2.0012919 2x Handgrip Pan Bar Adapter 20mmK2.0006752 1x Cable LBUS - LBUS (0.8m/2.6ft)K2.0006753 1x Cable LBUS - LBUS (1.5m/5ft)NOTELeft side: Master Grip Wheel (focus)Right side: Master Grip Zoom Rocker (zoom)
The ARRI Digital Encoder Head is the perfect way to intuitively control the Stabilized Remote Head 360 EVO and SRH-3 and SRH-360. The DEH-1 was specially manufactured according to ARRI specifications, with features such as special damping performance and adjustable pan bars. The DEH-1 uses LBUS communication to control the 360 EVO and SRH-3 and the SRH-360, especially for broadcast applications, but the LBUS also enables the use of Master Grips and the OCU-1 to control focus and zoom. With the DEH-1, you can control all functions of the remote head, as well as focus and zoom, using a single cable.includes:K2.0022594 1x DEH-1 Digital Encoder HeadK2.0009494 1x Master Grip Right Wheel MRW-1K2.0009490 1x Master Grip Left Rocker MLR-1K2.0012919 2x Handgrip Pan Bar Adapter 20mmK2.0006752 1x Cable LBUS - LBUS (0.8m/2.6ft)K2.0006753 2x Cable LBUS - LBUS (1.5m/5ft)NOTELeft side: Master Grip Zoom Rocker (zoom)Right side: Master Grip Wheel (focus)

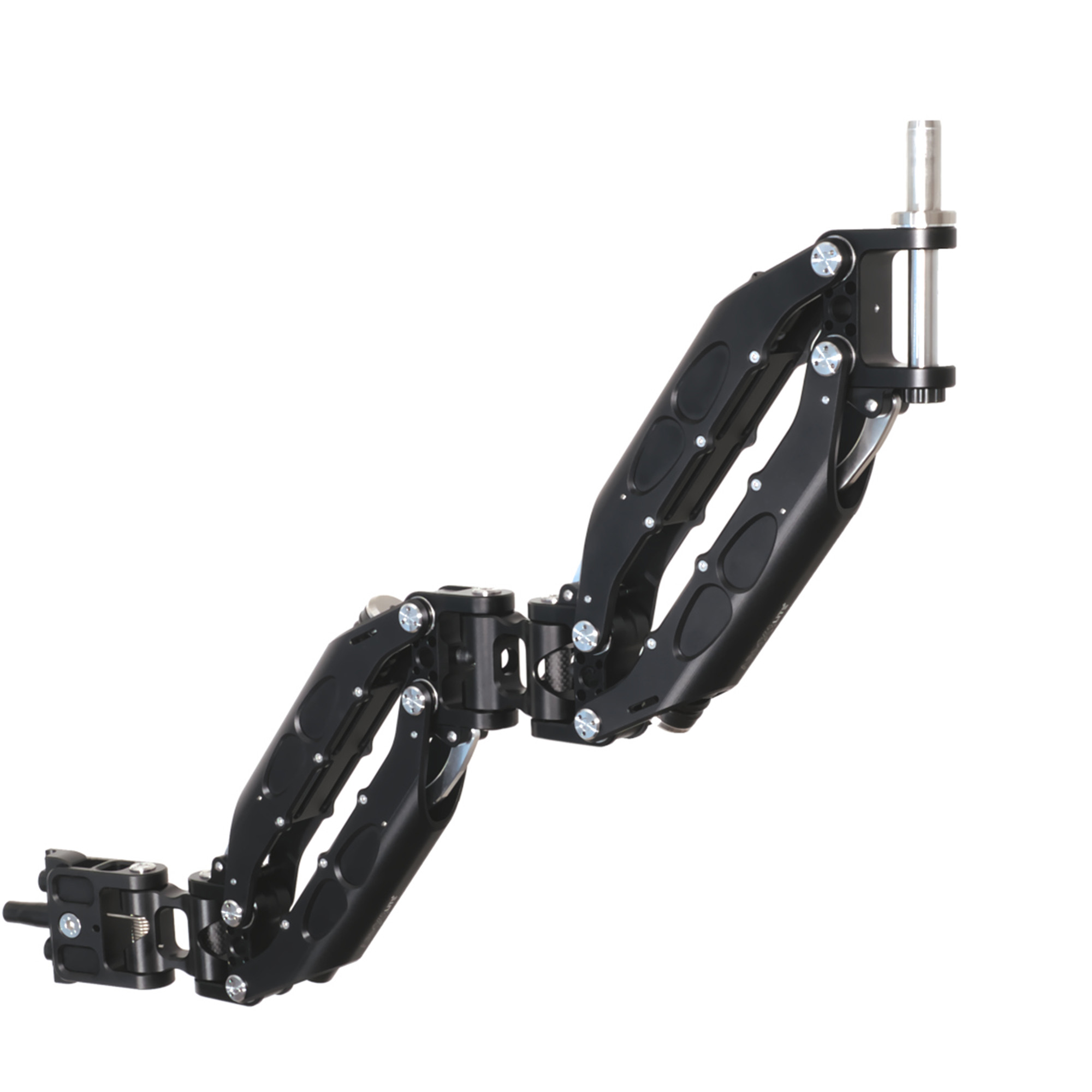

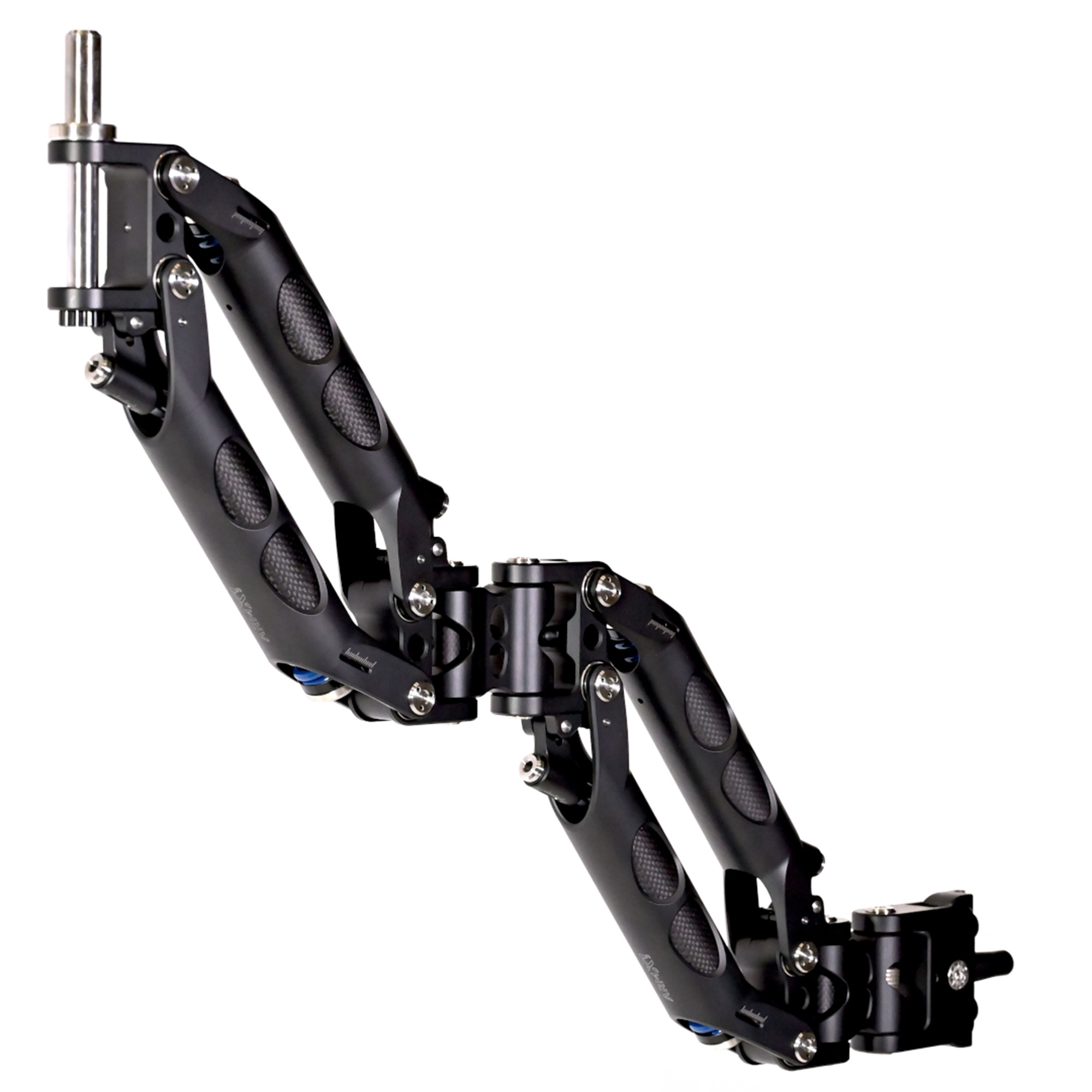

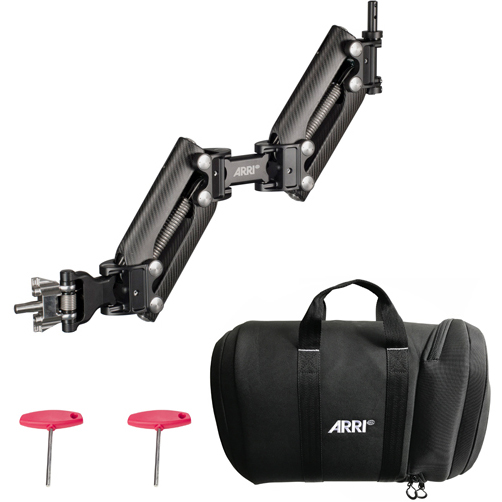

The ARTEMIS carbon spring arms offer a lightweight and optimized, state-of-the-art design. The absolutely friction-free ball bearings placed in the extremely stiff and torsion-free carbon fiber bones guarantee a prompt and smooth reaction of the arm. With a weight of only 4.5 kg/9.9 lb, the ARTEMIS carbon spring arms offer the best payload-to-weight ratio on the market. With standard industrial arm-to-vest connector.includes:K2.0010331 1x ARTEMIS Carbon Spring Arm, 23kg/50.7lbK2.0010435 1x Hex Key 6mm/1.4inK2.0010463 1x ARTEMIS Arm Soft BagK2.0010434 1x Hex Key 4mm/5.32inCapacity: 23kg/50.7lb
The ARRI Digital Encoder Head is the perfect way to intuitively control the Stabilized Remote Head 360 EVO and SRH-3 and SRH-360. The DEH-1 was specially manufactured according to ARRI specifications, with features such as special damping performance and adjustable pan bars. The DEH-1 uses LBUS communication to control the 360 EVO and SRH-3 and the SRH-360, especially for broadcast applications, but the LBUS also enables the use of Master Grips and the OCU-1 to control focus and zoom. With the DEH-1, you can control all functions of the remote head, as well as focus and zoom, using a single cable.includes:K2.0022594 1x DEH-1 Digital Encoder HeadK2.0020002 1x Operator Control Unit OCU-1 Basic SetK2.0020003 1x OCU-1 Rosette BracketK2.0009490 1x Master Grip Left Rocker MLR-1K2.0012919 2x Handgrip Pan Bar Adapter 20mmK2.0006752 1x Cable LBUS - LBUS (0.8m/2.6ft)K2.0006753 2x Cable LBUS - LBUS (1.5m/5ft)NOTELeft side: Master Grip Zoom Rocker (zoom) Right side: OCU-1 (focus)
The ARRI Digital Encoder Head is the perfect way to intuitively control the Stabilized Remote Head 360 EVO and SRH-3 and SRH-360. The DEH-1 was specially manufactured according to ARRI specifications, with features such as special damping performance and adjustable pan bars. The DEH-1 uses LBUS communication to control the 360 EVO and SRH-3 and the SRH-360, especially for broadcast applications, but the LBUS also enables the use of Master Grips and the OCU-1 to control focus and zoom. With the DEH-1, you can control all functions of the remote head, as well as focus and zoom, using a single cable.includes:K2.0022594 1x DEH-1 Digital Encoder HeadK2.0020002 1x Operator Control Unit OCU-1 Basic SetK2.0020003 1x OCU-1 Rosette BracketK2.0009493 1x Master Grip Right Rocker MRR-1K2.0012919 2x Handgrip Pan Bar Adapter 20mmK2.0006752 1x Cable LBUS - LBUS (0.8m/2.6ft)K2.0006753 2x Cable LBUS - LBUS (1.5m/5ft)NOTE: Left side: OCU-1 (focus) Right side: Master Grip Zoom Rocker (zoom)
The ARRI Digital Encoder Head is the perfect way to intuitively control the Stabilized Remote Head 360 EVO and SRH-3 and SRH-360. The DEH-1 was specially manufactured according to ARRI specifications, with features such as special damping performance and adjustable pan bars. The DEH-1 uses LBUS communication to control the 360 EVO and SRH-3 and the SRH-360, especially for broadcast applications, but the LBUS also enables the use of Master Grips and the OCU-1 to control focus and zoom. With the DEH-1, you can control all functions of the remote head, as well as focus and zoom, using a single cable.NOTE Only LBUS communication. No cables included.
The TRINITY 2 to ARTEMIS 2 Live conversion kits enable existing TRINITY 2 operators to convert their TRINITY 2 into a lightweight ARTEMIS 2 Live incl. a 7 inch monitor set if required.includes:K2.0039975 1x BST-2, ARTEMIS 2 Bottom Stage, 16pinK2.0052045 1x BHM-3 Artemis Live Battery Hanger PlateK2.0049885 3x CCB-2, CSS Clamp Bridge-2, 52, 19mmK2.0041765 1x SmallHD 703 MonitorK2.0052172 1x Monitor Yoke SmallHD 7inK2.0050835 1x MMA-2 Monitor Mounting Adapter 2K2.0041984 1x 12G HD SDI BNC Cable, 0,63m/25inK2.0041723 1x Monitor Power, 12V, Lemo 0B 2-pin to 0B 2-pinK2.0010436 1x Hex Key 2mmNOTEWhen ordering the TRINITY 2 ARTEMIS 2 Live Conversion Set, incl. 7-inch Monitor, the following components are mandatory and need to be ordered separately:K2.0052057 Power Cable 12V/12V In - 12V Hot Swap Out, BHM K2.0052139 Power Cable 12V/12V In - 12V/24V Out, BHMK2.0052140 Power Cable 12V/24V In - 12V/24V Out, BHM
If you already own a TRINITY Gen.1 and would like to make it broadcast-friendly, contact our service office in Munich. They will upgrade your stabilizer into a TRINITY Live and give you the option of booking the Master Grip TRINITY upgrade at the same time.NOTEThe upgrade can only be carried out by a local ARRI service. Suggested price plus labor cost.
This special LBUS upgrade allows the use of the MGT-2 Joystick with the TRINITY Gen. 1.As the MGT-2 has two joysticks, tilt and zoom can be controlled independently of each other.Either a c-force mini motor (KK.0040344) or the LCUBE Cube (KK.0024836) can be used for the zoom.Includes:K2.0048648 1x Adapter 19mm with 1/4in threadK2.0041089 1x MGT-2, Master Grip TRINITY 2, two controllersK2.0048700 1x Articulating arm, 5inK2.0043861 1x TRINITY 2 Joystick Cable, 75cm/29.5inK2.0038998 1x MTG Monitor Pwr, Lemo 0B, 2-pinK2.0038999 1x MTG Monitor Pwr, Lemo 0B, 5-pinK2.0014804 1x TRINITY BNC Cable for Joystick Main CableNOTEThe upgrade can only be carried out by a local ARRI service.Suggested price plus labor cost.
The external radio module offers reliable wireless communication over 900 MHz between the remote control and the Stabilized Remote Head 360 EVO and SRH-3 and SRH-360. The range of up to 3000 m/6560 ft. Is based on so-called channel hopping.includes:K2.0037425 2x ERM-900, SRH, Single ModuleK2.0033765 2x ERM-900 Rubber Duck AntennaK2.0033762 2x SRH FS CAN Bus Cable, 1m/3.2ftK2.0033761 1x ERM Power Cable, ERM-2400 & ERM-900Range: Up to 3000 meter / 6560 ftFor 360 EVO and SRH-3 and SRH-360
Set including a 7in SmallHD 703 monitor and all needed adapters.includes:K2.0041765 1x SmallHD 703 MonitorK2.0042710 1x K2.0041723 1x Monitor Power, 12V, Lemo 0B 2-pin to 0B 2-pinK2.0041984 1x 12G HD SDI BNC Cable, 0,63m/25inK2.0042710 1x Monitor Bracket, Gen.2, 7in, SmallHDARTEMIS 2, artemis Gen.1 NOTE To complete the initial order, it is recommended to order one of the monitor sets or monitor brackets.
The Battery Hanger Module Gen.2, BHM-2 is a future-proof, high-performance power supply for ARTEMIS and TRINITY camera stabilization systems. Regardless of the batteries used, whether 12 V or 24 V, the BHM-2 always supplies 12 V and 24 V for the camera and the accessories as required. If 12 V batteries are used, 24 V will be transformed from the 12 V, should 24 V power be required. It works the same way if only 24 V batteries are connected, then the needed 12 V power supply is down-transformed from the 24 V. With the BHM-2, up to three batteries (V-Mount, B-Mount and Gold Mount) can be connected to the BHM-2 and their power can be bundled. Since all batteries always work together, the intelligent battery management enables extremely long runtimes for the entire system, even with high consumption. This means that even very small and light batteries can be used, without having to worry about the overall life of the batteries. If the Battery Hanger Module BHM-2 is used with a TRINITY 2, the BHM-2 always supplies the necessary 24 V for the motors and at the same time 12 V for the control electronics.includes:K2.0037739 1x BHM-2, Battery Hanger Module, Gen.2K2.0037771 1x Power Cable, BHM-2 to TST, 12V, 24V, Bat. DataK2.0041327 1x Support Rods 305mm, 12in, 19mmK2.0040790 1x Support Rods 120mm, 4.7in, 19mmK2.0037757 1x Hinge for Battery Hanger Module, Gen.2, 19mm rodsNOTEUpgrade for artemis Gen.1 when using BST-1 (K2.0039977) Upgrade for TRINITY Gen.1 when using TST-1 (K2.0039687)For ARTEMIS 2, TRINITY 2 and artemis Gen.1 and TRINITY Gen.1 after adding other components
An ERM-2400 LCS set of radio modules basically extends an LCS/LBUS/EXT (CAN bus) cable connection over air. As such, it can connect ARRI and cmotion hand units to cameras and motor controllers and they behave as if they were hardwired, but with an exceptionally great wireless range (up to 1,000 m/3,280 ft).includes:K2.0037440 2x ERM-2400,LCS, Single ModuleK2.0033763 2x ERM-2400 Rubber Duck AntennaK2.0036900 2x ERM LCS to FS CAN Bus Adapter Cable, 0.2m/0.65ftK2.0036903 2x ERM LBUS to FS CAN Bus Adapter Cable, 0.2m/0.65ftK2.0036901 1x ERM EXT. to FS CAN Bus Adapter Cable, 0.2m/0.65ftK2.0036902 1x ERM D-Tap Pwr Cable, 0B Lemo 2-pin to D-Tap, 1m/3.2ftK2.0033762 2x SRH FS CAN Bus Cable, 1m/3.2ftCompatibility:The ERM-2400 LCS module is compatible with equipment supporting LCS, EXT and LBUS protocols. A pair of ERM-2400 LCS modules can replace a cabled connection between two devices, for example:• WCU-4 or SXU-1 and ALEXA Plus camera (LCS socket)• WCU-4 or SXU-1 and ALEXA Mini camera (EXT socket)• WCU-4 or SXU-1 and ALEXA Mini LF camera (EXT socket)• WCU-4 or SXU-1 and UMC-4 (LCS socket)• Master Grip or OCU-1 and cforce motor• cmotion cPRO hand unit and cforce motor• ARRI Wheels DRW-1 and Digital Encoder Head DEH-1NOTEThe OCU-1 override function is not supported with ERM-2400 LCS, because override is not possible in hardwired mode neither.NOTEThe basic set is only supplied with adapter cables.Recommended and required optional extension cables:SRH FS CAN Bus Cable, 10m/32.8ft (K2.0019302)SRH FS CAN Bus Cable, 25m/82ft (K2.0019301)SRH FS CAN Bus Coupler, 0.2m/0.65ft (K2.0019300)For 360 EVO, SRH-3, SRH-360, TRINITY 2
The vibration isolator for the SRH remote head series combines excellent isolation from dynamic impulses, shocks, and vibrations in an extremely compact and rigid design. Four polymer damping elements absorb unwanted vertical and angular movements in the roll and tilt axes, but keep the pivot axis defined and stable. Therefore, the torque power for the pan axis can be maxed out when needed. The polymer elements are located between two of the three layers of the isolator and can easily be adapted to the requirements of each shot with four knurled adjustment nuts. The vibration isolator for the SRH series allows two types of mounting on the SRH remote heads. With the so-called direct mounting, the vibration isolator can be mounted directly on the base plate of the SRH remote control head, whereby the vibration isolator or the attachment to the crane remains as close as possible to the remote head. In this way, the leverage and the associated load change of the remote head can be kept as low as possible, especially when the remote head is mounted on vehicles. The second way is to use the included classic Mitchell mount adapter. The adapter allows fast changes from a crane to a dolly or to an ISO dampener.includes:K2.0041912 1x Vibration Isolator for SRH, Gen. 2, imperialK2.0041922 1x SRH Mitchell Mount Castle Nut, ImperialK2.0038756 1x Wrench for SRH Castle Nut, Mitchell MountK2.0038758 1x Case for Vibration Isolator for SRH, Gen 2NOTEImperial treadFor 360 EVO and SRH-3 and SRH-360
ARTEMIS 2 Live Conversion Set, incl. 7-inch Monitor enable existing ARTEMIS 2 operators to convert their ARTEMIS 2 into a lightweight ARTEMIS 2 Live incl. a 7 inch monitor set if required. The conversion can be done in a few minutes and gives the CSS owner / operator more flexibility to better manage the creative task.includes:K2.0052045 1x BHM-3 Artemis Live Battery Hanger PlateK2.0049885 3x CCB-2, CSS Clamp Bridge-2, 52, 19mmO5.15642.0 1x Hex Key 3mm/0.11inK2.0041765 1x SmallHD 703 MonitorK2.0052172 1x Monitor Yoke SmallHD 7inK2.0050835 1x MMA-2 Monitor Mounting Adapter 2K2.0041984 1x 12G HD SDI BNC Cable, 0,63m/25inK2.0041723 1x Monitor Power, 12V, Lemo 0B 2-pin to 0B 2-pinK2.0010436 1x Hex Key 2mmNOTEWhen ordering the ARTEMIS 2 Live Conversion Set, incl. 7-inch Monitor, the following components are mandatory and need to be ordered separately:K2.0052057 Power Cable 12V/12V In - 12V Hot Swap Out, BHM K2.0052139 Power Cable 12V/12V In - 12V/24V Out, BHMK2.0052140 Power Cable 12V/24V In - 12V/24V Out, BHM
The vibration isolator for the SRH remote head series combines excellent isolation from dynamic impulses, shocks, and vibrations in an extremely compact and rigid design. Four polymer damping elements absorb unwanted vertical and angular movements in the roll and tilt axes, but keep the pivot axis defined and stable. Therefore, the torque power for the pan axis can be maxed out when needed. The polymer elements are located between two of the three layers of the isolator and can easily be adapted to the requirements of each shot with four knurled adjustment nuts. The vibration isolator for the SRH series allows two types of mounting on the SRH remote heads. With the so-called direct mounting, the vibration isolator can be mounted directly on the base plate of the SRH remote control head, whereby the vibration isolator or the attachment to the crane remains as close as possible to the remote head. In this way, the leverage and the associated load change of the remote head can be kept as low as possible, especially when the remote head is mounted on vehicles. The second way is to use the included classic Mitchell mount adapter. The adapter allows fast changes from a crane to a dolly or to an ISO dampener.includes:K2.0038752 1x Vibration Isolator for SRH, Gen. 2, MetricK2.0024106 1x SRH Mitchell Mount Castle Nut, MetricK2.0038756 1x Wrench for SRH Castle Nut, Mitchell MountK2.0038758 1x Case for Vibration Isolator for SRH, Gen 2NOTEMetric threadFor 360 EVO and SRH-3 and SRH-360
The external radio module offers reliable wireless communication over 2.4 GHz between the remote control and the Stabilized Remote Head 360 EVO and SRH-3 and SRH-360. The range of up to 1000 m/3280 ft. is based on so-called channel hopping.includes:K2.0037428 2x ERM-2400, SRH, Single ModuleK2.0033763 2x ERM-2400 Rubber Duck AntennaK2.0033762 2x SRH FS CAN Bus Cable, 1m/3.2ftK2.0033761 1x ERM Power Cable, ERM-2400 & ERM-900Range: Up to 1000 meter / 3280 ft.For 360 EVO, SRH-3, SRH-360, TRINITY 2
7in 3G-SDI Hyper Bright monitor with up to 3200 nits. IPS screen with protection glass and special anti-reflective coating. Adaptive Backlight Management to always offer the best brightness based on outer environment. The center of gravity is perfectly balanced with the new monitor yoke. The new MMA-1 allows the monitor yoke to be mounted directly to the center post.includes:K2.0052052 1x SM7 Pro 3G Monitor, 7in, 3200 NitsK2.0051225 1x Monitor Yoke SM7 ProK2.0051654 1x MMA-1, Main Monitor Mounting AdapterK2.0041984 1x 12G HD SDI BNC Cable, 0,63m/25inK2.0041723 1x Monitor Power, 12V, Lemo 0B 2-pin to 0B 2-pin
New LBUS based Micro Force joystick for TRINITY 2, with two joysticks and six freely assignable buttons.NOTETwo joysticks, six buttonsincludes:K2.0041089 1x MGT-2, Master Grip TRINITY 2, two controllersK2.0044234 1x 12G HD SDI BNC Cable, 0,84m/33inK2.0043861 1x TRINITY 2 Joystick Cable, 75cm/29.5inK2.0038998 1x MTG Monitor Pwr, Lemo 0B, 2-pinK2.0038999 1x MTG Monitor Pwr, Lemo 0B, 5-pinNOTETo complete the initial order, at least one of the mandatory joystick sets must be ordered.
7in 3G-SDI Hyper Bright monitor with up to 3200 nits. IPS screen with protection glass and special anti-reflective coating. Adaptive Backlight Management to always offer the best brightness based on outer environment. The center of gravity is perfectly balanced with the new monitor yoke. The new MMA-2 allows the monitor yoke to be mounted directly onto the 19mm rods. This results in a very low center of gravity and weight distribution for perfect dynamic balance.includes:K2.0052052 1x SM7 Pro 3G Monitor, 7in, 3200 NitsK2.0051225 1x Monitor Yoke SM7 ProK2.0050835 1x MMA-2 Monitor Mounting Adapter 2K2.0049885 1x CCB-2, CSS Clamp Bridge-2, 52, 19mmK2.0041984 1x 12G HD SDI BNC Cable, 0,63m/25inK2.0041723 1x Monitor Power, 12V, Lemo 0B 2-pin to 0B 2-pin
This set combines the new EJS-1 external joystick and the new External Jog-Wheels plus all needed cables and mounting brackets.The EJS-1 external joystick uses the so-called broadcast joystick, known from the SRH-360 & 360 EVO. In addition to pan and tilt, the broadcast joystick offers the option of assigning roll or zoom to the joystick. A button on the upper part of the joystick can be used to trigger pre-programmed functions.In order to provide the operator with additional options to dial in values more quickly and to provide greater flexibility in recalling preprogrammed functions, the external jog-wheels EJW-1 provide three encoder knobs. As usual, both controllers are connected (daisy-chained) to the TRINITY 2 remote control panel (RCP-3) via LBUS cables and can be addressed using the new CSS EVO GUI 3.0 immediately.includes:K2.0049229 1x EJS-1, External Joystick, BroadcastK2.0049230 1x EJW-1, External Jog-WheelsK2.0006750 2x Cable LBUS - LBUS (0.3m/1ft)K2.0042837 2x CSS Clamp Bridge 52, 19mmK2.0047854 1x NATO Accessory Rail NAR-60K2.0049419 1x NATO Rail Clamp NRC-3
Highly adjustable and modular vest. Only extreme comfortable and modern fabrics are used for the ARTEMIS vest. Fits any operator with a height from 1.5m up to 2.1m / 4.9ft up to 6.56ftWeight: 4.5kg/9.9lbWith standard industrial vest-to-arm connector
The CCP Live is based on the CCP-1 and has been expanded to include a HDMI downconverter, an HD SDI video out socket and a Tally out socket.This allows the operator to get a direct monitor video feed from the camera even when both video outputs are used for 2 x 6G video.The additional 1080 HD SDI video signal allows a control monitor to be connected to the camera if both video out sockets are already in use.If the camera is integrated into a multi-cam setup, the TALLY Gen. 2 system can be controlled via the Tally Out socket.Including:K2.0001967 1x L-BracketK2.0046784 1x CCP-LiveK2.0047286 1x Clamp 3/8in for RAB-1K2.0009337 1x Cable ALEXA Mini to CCP-1 0,5m/19inK2.0009367 1x Cable ALEXA Mini to MVF-1 0,5m/19inK2.0047301 1x Tally Trigger CCP-Live1080 HD SDI video downconverter.
The new ARTEMIS 2 top stage combines a very compact design with extremely high overall rigidity and a future-proof modular design. The conversion to the SAM dovetail plate standard enables a significantly higher rigidity of the dovetail bracket, which has been improved even further by a completely newly developed clamping mechanism. The new clamping mechanism allows the SAM dovetail plate to be picked up from above, as well as from behind or from the front. The new design allows fore and aft to be adjusted from both sides, as well as side-to-side positioning.High-capacity 12 V/24 V, 2 x 12G video, battery data, LBUS through, CAN Bus through, tally, 16-pinFor ARTEMIS 2, TRINITY 2
New LBUS-based Microforce joystick for TRINITY 2, with one joystick and three freely assignable buttons.NOTEOne joystick, three buttonsincludes:K2.0041091 1x MGT-1, Master Grip TRINITY 2, one controllerK2.0044234 1x 12G HD SDI BNC Cable, 0,84m/33inK2.0043861 1x TRINITY 2 Joystick Cable, 75cm/29.5inK2.0038998 1x MTG Monitor Pwr, Lemo 0B, 2-pinK2.0038999 1x MTG Monitor Pwr, Lemo 0B, 5-pinNOTETo complete the initial order, at least one of the mandatory joystick sets must be ordered.
The TRINITY 2 to ARTEMIS 2 Live conversion kits enable existing TRINITY 2 operators to convert their TRINITY 2 into a lightweight ARTEMIS 2 Live if required.includes:K2.0039975 1x BST-2, ARTEMIS 2 Bottom Stage, 16pinK2.0052045 1x BHM-3 Artemis Live Battery Hanger PlateK2.0049885 2x CCB-2, CSS Clamp Bridge-2, 52, 19mmO5.15642.0 1x Hex Key 3mm/0.11inNOTEWhen ordering the TRINITY 2 ARTEMIS 2 Live Conversion Set, the following components are mandatory and need to be ordered separately:K2.0052057 Power Cable 12V/12V In - 12V Hot Swap Out, BHM K2.0052139 Power Cable 12V/12V In - 12V/24V Out, BHMK2.0052140 Power Cable 12V/24V In - 12V/24V Out, BHM
The new ARTEMIS 2 top stage combines a very compact design with extremely high overall rigidity and a future-proof modular design. The conversion to the SAM dovetail plate standard enables a significantly higher rigidity of the dovetail bracket, which has been improved even further by a completely newly developed clamping mechanism. The new clamping mechanism allows the SAM dovetail plate to be picked up from above, as well as from behind or from the front. The new design allows fore and aft to be adjusted from both sides, as well as side-to-side positioning.High-capacity 12 V/24 V, 2 x 4G video, tally, 10-pinNOTEUpgrade for artemis Gen.1 with Lemo 3B 10-pin and two video lines Recommended power cable: K2.0039443 Cam Pwr Gen.2, ALEXA 35, Mini, AMIRA, 24 V, 8-pinK2.0039446 Cam Pwr Gen. 2, Alexa LF, 24V, 2-pin FischerFor artemis Gen.1
Set of digital high-resolution controllers for adjusting focus via a focus wheel and zoom via a zoom rocker, based on the LBUS protocol. This allows users to control focus and zoom via LBUS with cforce mini motors, or through the LCUBE CUB-2. Both controllers can also be freely assigned to other functions like iris, roll axis, etc.includes:K2.0019291 1x Focus Knob for SRH Remote Control PanelK2.0019292 1x Zoom Rocker for SRH Remote Control PanelNOTEBoth controllers can be installed by the operator himself, no additional service is required.For 360 EVO and SRH-3 and SRH-360 remote control panel.
The new ARTEMIS 2 bottom stage combines a very compact design with extremely high overall rigidity and a future-proof modular design. The conversion to the SAM dovetail plate standard enables a significantly higher rigidity of the dovetail bracket, which has been improved even further by a completely newly developed clamping mechanism. The new clamping mechanism allows the SAM dovetail plate to be picked up from above, as well as from behind or from the front.High-capacity 12 V/24 V, 2 x4G video, tally, 10-pinNOTE Upgrade for artemis Gen.1 with Lemo 3B 10-pin and two video linesFor artemis Gen.1
The known ARRI wheels have also been optimized for the new type of mounting. The new mounting base with No-Tool Clamp allows the user to place the ARRI Wheel in any desired position. Equiped with the bigger 160 wheels.
includes:
K2.0019319 1x DRW-1 Module
K2.0051672 1x Hand Wheel 160 complete
K2.0019318 1x DRW-1 Modul Mounting Bracket
K2.0051132 1x DRW-1 Mounting Base 2
K2.0042837 1x CSS Clamp Bridge 52, 19mm
For:
TRINITY 2, 360 EVO, SRH-360, SRH-3
The Digital Encoder Pedals use LBUS communication to easily integrate into the 360 EVO and SRH-3 and SRH-360 workflows. The Digital Encoder Pedals are the most precise way to control the Stabilized Remote Head 360 EVO and SRH-3 and SRH-360.includes:K2.0039147 1x DEP-1, Host PedalK2.0039149 1x DEP-1, Client PedalK2.0001637 1x Cable RS - RS/PWR IN (0.5m/1.6ft)
ARTEMIS gimbal for 1.8in ARTEMIS center posts, super-low friction, patented self-centering mechanism, no-tool gimbal clamp.NOTEFor ARTEMIS and TRINITY systems with a 1.8in center post and with the 1.8in Gimbal Adapter Set f. Volt Post (K0.0040291) for the Volt Post and M2 Post.
The new ARTEMIS 2 bottom stage combines a very compact design with extremely high overall rigidity and a future-proof modular design. The conversion to the SAM dovetail plate standard enables a significantly higher rigidity of the dovetail bracket, which has been improved even further by a completely newly developed clamping mechanism. The new clamping mechanism allows the SAM dovetail plate to be picked up from above, as well as from behind or from the front.High-capacity 12 V/24 V, 2 x 12G video, battery data, LBUS through, CAN Bus through, tally, 16-pinFor ARTEMIS 2, TRINITY 2
Additional third wheel set for the DRW-1 Digital Remote Wheels, Two Wheels Set KK.0021212includes:K2.0019319 1x DRW-1 ModuleN2.25004.A 1x Hand Wheel 150 completeK2.0006751 1x Cable LBUS - LBUS (0.5m/1.5ft)
The known ARRI wheels have also been optimized for the new type of mounting. The new mounting base with No-Tool Clamp allows the user to place the ARRI Wheel in any desired position.Equiped with the smaller 150mm wheels.includes:K2.0051132 1x DRW-1 Mounting Base 2KK.0021211 1x DRW-1 Digital Remote Wheel, Third Wheel SetK2.0042837 1x CSS Clamp Bridge 52, 19mmFor:TRINITY 2, 360 EVO, SRH-360, SRH-3
This special carbon post is required to use the M2 Volt (trademark) Gimbal with ARTEMIS 2 and older artemis systems, like the Cine Broadcast and the EFP HD.In order to precisely match the dimensions of the M2 Volt Gimbal, a special carbon post was designed and manufactured and precisely ground to the outer diameter of 1.74 inches.Like the 1.8in standard two section ARTEMIS carbon Post, the version for the Volt Gimbal has a fine trim length adjustment for the torsion-free guided 1.5in inner post.The Pro Set contains all necessary cables, mounting brackets, as well as an arm post with 0.74in / 18,7mm for the Volt gimbal and a Ballance Pin for the ARTEMIS docking bracket.Telescopic length from 43 cm to 72 cm / 16.9in to 28.3inincludes:K2.0036904 1x ARTEMIS Carbon Center Post, 1.74, VoltK2.0037460 1x Volt Pwr Cable 0B 3-pin to 0B 2-pin, 0.4 m/1.3ftK2.0037912 1x SSB-3, Stabilizer System Bracket for TRINITY, MAXIMA, SAM platesK2.0040244 1x Arm Post 0.74in / 18,7mm diameter, Volt GimbalK2.0049047 1x Docking Pin Sleeves for Tiffen Volt GimbalFor ARTEMIS 2 and artemis Gen. 1
Set of two exchangeable radio modules for TRINITY 2.Point-to-point communication for connecting RCP-3 to the TRINITY 2Frequency: 2400 MHzModulation: Frequency-hopping spread spectrum (FHSS)Number of channels: 100includes:K2.0038704 1x RAT-1, Radio Adapter TRINITY 2KK.0039984 1x RF-2400 Radio Module 2400 MHz FHSS Set (2x)K2.0033763 2x ERM-2400 Rubber Duck AntennaNOTEFor TRINITY 2
This special carbon post is required to use the M2 Volt (trademark) Gimbal with ARTEMIS 2 and older artemis systems, like the Cine Broadcast and the EFP HD. In order to precisely match the dimensions of the M2 Volt Gimbal, a special carbon post was designed and manufactured and precisely ground to the outer diameter of 1.74 inches. Like the 1.8in standard two section ARTEMIS carbon Post, the version for the Volt Gimbal has a fine trim length adjustment for the torsion-free guided 1.5in inner post.The Pro Set contains all necessary cables, mounting brackets, as well as an arm post with diameter 0.74in / 18,7mm for the Volt gimbal and a ballance pin for the ARTEMIS docking bracket.Telescopic length from 43 cm to 72 cm / 16.9in to 28.3inincludes:K2.0049207 1x artemis Carbon Center Post, 1.74, Volt, Short, No Main CableK2.0037460 1x Volt Pwr Cable 0B 3-pin to 0B 2-pin, 0.4 m/1.3ftK2.0037912 1x SSB-3, Stabilizer System Bracket for TRINITY, MAXIMA, SAM platesK2.0040244 1x Arm Post 0.74in / 18,7mm diameter, Volt GimbalK2.0049047 1x Docking Pin Sleeves for Tiffen Volt Gimbal
The new Super Post, 1.8in Gen.2 is a replacement center post for the standard center post which comes with the system. The new Super Post enables the camera in the ARTEMIS and TRINITY application to be placed and moved significantly higher or lower in the set.diameter 1.8in / Inner post 1.5inMax. length 199,8cm / 6.55ftMin. length: 119cm / 3,9ftLemo 3B 16pinIncludes:K2.0041103 1x ARTEMIS Carbon Super Post, Gen.2, 1.8inK2.0041161 1x Super Post Main Cable, 3B, 16-pinFor ARTEMIS 2 and TRINITY 2
The new Super Post, 1.8in Gen.2 is a replacement center post for the standard center post which comes with the system. The new Super Post enables the camera in the ARTEMIS and TRINITY application to be placed and moved significantly higher or lower in the set.diameter 1.8in / Inner post 1.5inMax. length 199,8cm / 6.55ftMin. length: 119cm / 3,9ftLemo 3B 10pinIncluces:K2.0041993 1x Super Post Main Cable, 3B, 10-pinK2.0041103 1x ARTEMIS Carbon Super Post, Gen.2, 1.8inFor artemis Gen. 1 and TRINITY Gen. 1
The EJS-1 external joystick uses the so-called broadcast joystick, known from the SRH-360 & 360 EVO. In addition to pan and tilt, the broadcast joystick offers the option of assigning roll or zoom to the joystick. A button on the upper part of the joystick can be used to trigger pre-programmed functions.includes:K2.0049229 1x EJS-1, External Joystick, BroadcastK2.0006750 1x Cable LBUS - LBUS (0.3m/1ft)K2.0042837 1x CSS Clamp Bridge 52, 19mm
The IP box allows TCP-IP communication between the stabilisation systems: SRH-360, 360 EVO, TRINITY 2, TRINITY 2 with Pan Axis Module, as well as the remote control RCP-2, RCP-2 EVO and the RCP-3.Interfaces:Power In 2pin Lemo (7V- 36V max. 7,5W)FS CAN 4pin FischerLBUS 4pin Lemo LAN Ethernet RJ45
Upgrade set that can be used to convert an existing CCP 1 into a CCP live.NOTEThis upgrade / conversion can only be carried out by the local ARRI service.Includes:K2.0001967 1x L-BracketK2.0047286 1x Clamp 3/8in for RAB-1K2.0047754 1x CCP-Live UpgradeK2.0009337 1x Cable ALEXA Mini to CCP-1 0,5m/19inK2.0009367 1x Cable ALEXA Mini to MVF-1 0,5m/19inK2.0047301 1x Tally Trigger CCP-Live
ARTEMIS carbon fibre telescopic centre post, 1.8in, no-tool clamp, torsion-free guided 1.5in inner post, fine trim adjustmentLength from 43cm to 72cm / 16.9in to 28.3inFor ARTEMIS 2, TRINITY 2, artemis Gen. 1, TRINITY Gen. 1
New modular and extremely flexible battery mounting system. The interchangeable battery holders can be changed quickly and easily. The electrical contact to the battery body is established via the so-called pogo pins. A special coding of the pogo pins makes it possible to identify the battery type and, if present, to communicate digitally with the battery.includes.K2.0037707 3x BMS-1, Battery Mounting Base, Gen.2, (naked)K2.0040285 3x Gold Mount for BMS-1 / BMS-2Gold MountFor artemis Gen.1 and TRINITY Gen.1
New modular and extremely flexible battery mounting system. The interchangeable battery holders can be changed quickly and easily. The electrical contact to the battery body is established via the so-called pogo pins. A special coding of the pogo pins makes it possible to identify the battery type and, if present, to communicate digitally with the battery.includes:K2.0037707 3x BMS-1, Battery Mounting Base, Gen.2, (naked)K2.0040286 3x V-Mount for BMS-1 / BMS-2V-MountFor artemis Gen.1 and TRINITY Gen.1
ARTEMIS carbon fibre telescopic centre post, 1.8in, no-tool clamp, torsion-free guided 1.5in inner post, fine trim adjustment.Length from 37cm / 14,56in to 46,5cm / 18,30inFor ARTEMIS 2, TRINITY 2, artemis Gen. 1, TRINITY Gen. 1
The EJS-1 external joystick uses the so-called broadcast joystick, known from the SRH-360 & 360 EVO. In addition to pan and tilt, the broadcast joystick offers the option of assigning roll or zoom to the joystick. A button on the upper part of the joystick can be used to trigger pre-programmed functions.
The Pendulum TPD-2 is one of the most important components of the TRINITY system, with its inconspicuous mode of operation. You could also call it the drop-down generator of the TRINITY system. In the minimum configuration, the pendulum has a mass of approx. 700 g/1.54 lb, which is attached to the rotating pendulum arm. Because of gravity, this mass is always directed towards the ground. The pendulum ensures that when the TRINITY is in high mode, i.e. the camera is at the top, the lower part of the TRINITY is heavier than the upper part. If the TRINITY is now moved from top to bottom, the mass of the pendulum still points downwards and is therefore now closer to the gimbal, which represents the central axis of rotation of the system. Now the side where the camera is located becomes heavier than the opposite side of the system, causing the camera to move towards the ground as if by itself.includes:K2.0036377 1x TPD-2, TRINITY Pendulum Gen. 2K2.0033569 4x Counterweight, CW-1, 150grFor TRINITY 2, TRINITY Gen. 1
Set including Small HD Cine 5 monitor and the new articulating arm with a 19mm clamp adapter for the MGT-2. K0.0044362 & K0.0044363)NOTETo complete the initial order, at least one of the mandatory monitor or monitor mounting sets must be ordered.Includes:K2.0048548 1x SmallHD Cine 5 Monitor, 5inK2.0048648 1x Adapter 19mm with 1/4in threadK2.0048700 1x Articulating arm, 5inTRINITY 2 only!
The Microforce Joystick is a high-resolution 2-axis controller for the SRH remote control. The Microforce Joystick offers a highly precise and tactile, optimized control of the pan and tilt axis of the remote head.For 360 EVO and SRH-3 and SRH-360NOTETo complete the initial order, at least one of the mandatory joystick sets must be ordered. The controller can be installed by the operator themselves, no additional service is required.
The digital focus wheel is an additional high-resolution digital controller for the SRH remote control panel. In general, it is used to control focus via LBUS with cforce mini motors, or through the LCUBE CUB-2. But it can also be freely assigned to other functions such as iris, roll axis, etc.NOTEBoth controllers can be installed by the operator himself, no additional service is required.For 360 EVO and SRH-3 and SRH-360 remote control panel.
Set including 5in Transvideo Starlite monitor and the new articulating arm with a 19mm clamp adapter for the MGT-2. (K0.0044362 & K0.0044363)NOTETo complete the initial order, at least one of the mandatory monitor or monitor mounting sets must be ordered.Includes:K2.0006960 1x Transvideo StarliteHD5-ARRI OLED MonitorK2.0048648 1x Adapter 19mm with 1/4in threadK2.0048700 1x Articulating arm, 5inTRINITY 2 only!
The Broadcast Joystick is a high-resolution 3-axis controller for the SRH remote control. The Broadcast Joystick offers a highly precise and tactile, optimized control of the pan and tilt axis of the remote head. The third axis can be used to control zoom or the roll axis.For 360 EVO and SRH-3 and SRH-360NOTETo complete the initial order, at least one of the mandatory joystick sets must be ordered. The controller can be installed by the operator themselves, no additional service is required.
To be able to arrange and mount the TRINITY 2 remote control panel (RCP-3), as well as the joystick, the jog-wheels and the ARRI wheels quickly and flexibly to each other, we have developed a new mounting system based on 19mm tubes and no-tool clamps. The RCP-3, Controller, 19 mm mounting set uses a tool-free Mitchell mount quick release and can be attached to any flat tripod.includes:K2.0049453 1x Mitchell Wedge Lock SetK2.0050433 1x CSS Mitchell Base PlateK2.0049885 2x CCB-2, CSS Clamp Bridge-2, 52, 19mmK2.0040791 1x Support Rods 430mm, 16.9in, 19mm
Peli 1780 Case with a special foam insert that makes it possible to transport the entire TRINITY 2 system in just one case.Inner dimensions:104,4cm x 54,7cm x 37,8cm / 41.12in x 21.54in x 14.88inOuter dimensions:114cm x 64,3cm x 41,9cm / 44.90in x 25.32in x 16.50in Weight: 22,2kg / 49.00lbincludes:K2.0044439 1x Case TRINITY 2 compl. System, Pelican 1780, emptyK2.0048282 1x Foam Inlay TRINITY 2 compl. System, Pelican 1780
In order to provide the operator with additional options to dial in values more quickly and to provide greater flexibility in recalling preprogrammed functions, the external jog-wheels EJW-1 provide three encoder knobs. As usual, both controllers are connected (daisy-chained) to the TRINITY 2 remote control panel (RCP-3) via LBUS cables and can be addressed using the new CSS EVO GUI 3.0 immediately.includes:K2.0049230 1x EJW-1, External Jog-WheelsK2.0006750 1x Cable LBUS - LBUS (0.3m/1ft)K2.0042837 1x CSS Clamp Bridge 52, 19mmK2.0047854 1x NATO Accessory Rail NAR-60K2.0049419 1x NATO Rail Clamp NRC-3
Standard fully digital high-resolution 2-axis joystick for the SRH remote control. The Standard Joystick offers a highly precise and tactile, optimized control of the pan and tilt axis of the remote head.For 360 EVO and SRH-3 and SRH-360NOTETo complete the initial order, at least one of the mandatory joystick sets must be ordered. The controller can be installed by the operator themselves, no additional service is required.
Additional standard joystick module for the SRH remote control. The standard joystick is mounted on the left side of the SRH remote control.NOTEBoth controllers can be installed by the operator himself, no additional service is required.For 360 EVO and SRH-3 and SRH-360 remote control panel.
The DUB-3 is the compact version of the Dovetail Utility Base DUB-1. As with the DUB-1, the tool-free clamping mechanism of the DUB-3 TRINITY 2 allows the mounting of all available SAM dovetail plates, such as SAM Zero, SAM 1, SAM 2, etc.For TRINITY 2 and as upgrade to TRINITY Gen.1 with quick lock mechanism
The new generation of the Tally system is now fully digital. This guarantees constant luminosity in the host and client modules, regardless of whether the tally LED on the camera is bright.The set includes the Tally host and client module as well as all required cables.Includes:K2.0044490 1x Tally System Gen2 / HostK2.0044491 1x Tally System Gen2 / ClientK2.0010482 1x Tally Sensor Cable, Gen.1 & 2K2.0044146 2x Tally Gen.2 Pwr, TRH-2, Fischer 3pin to Lemo 0S 3pin, 0,75m / 29.5inK2.0044374 1x Tally Gen.2 Mon Pwr, Lemo 0B 2pin to 0B 5pin, 25cm / 9.84inK2.0044147 1x Tally Gen.2 Mon Pwr, Lemo 0B 2pin to 0B 2pin, 25cm / 9.84inFor TRINITY 2 only.
The new generation of the Tally system is now fully digital. This guarantees constant luminosity in the host and client modules, regardless of whether the tally LED on the camera is bright.The set includes the Tally host and client module as well as all required cables.Includes:K2.0044490 1x Tally System Gen2 / HostK2.0044491 1x Tally System Gen2 / ClientK2.0010482 1x Tally Sensor Cable, Gen.1 & 2K2.0044142 1x Tally Gen.2 Pwr, TST-1, Lemo 0S 3pin to 0S 3pin, 0,35m / 13.7inK2.0044260 1x Tally Gen.2 Mon Pwr, Lemo 0B 5pin to 0S 3pin, 0,25m / 9.8inK2.0044374 1x Tally Gen.2 Mon Pwr, Lemo 0B 2pin to 0B 5pin, 25cm / 9.84inK2.0044147 1x Tally Gen.2 Mon Pwr, Lemo 0B 2pin to 0B 2pin, 25cm / 9.84inFor TRINITY Gen.1 only!
The digital zoom rocker is an additional high-resolution digital controller for the SRH remote control panel. In general, it is used to control zoom via LBUS with cforce mini motors, or through the LCUBE CUB-2. But it can also be freely assigned to other functions such as roll axis, etc.NOTEBoth controllers can be installed by the operator himself, no additional service is required.For 360 EVO and SRH-3 and SRH-360 remote control panel.
Special Counterweight Bracket for the DEH-2. Once the focus and zoom controls, such as the OCU-1 & Master Grip Zoom, are attached to the pan bar of the DEH-2, the additional weight at the rear of the DEH-2 must be balanced with counterweights at the front.First attach the SSB-7 to the front of the dovetail plate on the DEH-2, and then attach the counterbalance rods to the SSB-7.In addition, power supply accessories such as the BMS-3 or Video Transmitters can be connected via standard ARRI interfaces.Includes:K2.0048281 1x Stabilizer System Bracket SSB-7K2.0043811 2x Single Support Rod 76mm, 3in, 19mmK2.0048587 2x Cartoni Counterweights Rod 22mm, 2x0,5kgRecommended accessories:BMS-3, Pro Set, V-Mount (KK.0049408) BMS-3, Pro Set, Gold-Mount (KK.0049409)Multicam Monitor bundle VMM-1 & MYS-1 (K0.0039106)
Case including foam insert for 360 EVO. The case offers protection for the 360 EVO Stabilized Remote Head, the remote control, cables and tools.Outer dimensions:83,7cm x 59cm x 48cm / 32.94in x 23.53in x 18.87inWeight incl. Foam:19Kg / 41.88lbFor 360 EVO
Docking Bracket for all ARTEMIS systems using the 1.8in post and the wide docking ring 2.5inFits C-Stands and Low-Boys with a 5/8in/15.8 mm spigot.For ARTEMIS 2, TRINITY 2, artemis Gen. 1, TRINITY Gen. 1
The new generation of the Tally system is now fully digital. This guarantees constant luminosity in the host and client modules, regardless of whether the tally LED on the camera is bright.The set includes the Tally host and client module as well as all required cables.includes:K2.0050415 1x Trinity Live Cabel MGT (1.3m/4.2ft)K2.0044490 1x Tally System Gen2 / HostK2.0044491 1x Tally System Gen2 / ClientK2.0010482 1x Tally Sensor Cable, Gen.1 & 2K2.0044142 1x Tally Gen.2 Pwr, TST-1, Lemo 0S 3pin to 0S 3pin, 0,35m / 13.7inK2.0044374 1x Tally Gen.2 Mon Pwr, Lemo 0B 2pin to 0B 5pin, 25cm / 9.84inK2.0044147 1x Tally Gen.2 Mon Pwr, Lemo 0B 2pin to 0B 2pin, 25cm / 9.84inFor TRINITY Gen.1 Live with MGT-2 Upgrade only!
The DUB-4 Dovetail Utility Base 4, is an alternative dovetail clamp mechanism for the top stage for the ARTEMIS 2. The ARTEMIS 2 Top Stage uses the SAM plates by default. However, if the ARTEMIS owner or operator prefers to continue using the old and slightly wider dovetail plates, he or she can convert the top stage of the ARTEMIS 2 to the old system using the DUB-4 Dovetail Utility Base 4.
The set is optimized for long lenses such as the Signature Zoom 65-300mm mounted to ALEXA Mini/Mini LF in ARRI CSS products.Included is a long Stabilizer Plate for CBP 450mm/18in that allows the camera to be attached and balanced to ARRI TRINITY, MAXIMA and 360 EVO, SRH-3 and SRH-360. The adjustable Stabilizer Systems Bracket SSB-2 15mm offers standard rod support for traditional 15mm Studio lens support such as the ARRI LS-10, as well as support for any optically centered accessory, such as rain deflectors, ring lights and matte boxes. The Compact Lens Support CLS-1 fits directly to the front groove of the Stabilizer Plate for CBP 450mm/18in and supports smaller zooms such as the Signature Zoom 16-32mm.Includes:K2.0038618 1x Stabilizer System Bracket SSB-2 15mmK2.0039089 1x Compact Lens Support CLS-1K2.0038536 1x Stabilizer Plate for CBP 450mm/18inK2.0038783 1x LLS-1 Lens BridgeFor TRINITY 2, ARTEMIS 2, TRINITY Gen. 1, 360 EVO, SRH-3, SRH-360, MAXIMA
The set is optimized for long lenses such as the Signature Zoom 65-300mm mounted to ALEXA Mini/Mini LF in ARRI CSS products.Included is a long Stabilizer Plate for CBP 450mm/18in that allows the camera to be attached and balanced to ARRI TRINITY, MAXIMA and 360 EVO, SRH-3 and SRH-360, an adjustable Stabilizer Systems Bracket SSB-2 19mm, which offers standard rod support for traditional 19mm Studio lens support such as the ARRI LS-9, as well as support for any optically centered accessory, such as rain deflectors, ring lights and matte boxes. The Compact Lens Support CLS-1 fits directly to the front groove of the Stabilizer Plate for CBP 450mm/18in and supports smaller zooms such as the Signature Zoom 16-32mm.Includes:K2.0038537 1x Stabilizer System Bracket SSB-2 19mmK2.0038536 1x Stabilizer Plate for CBP 450mm/18inK2.0039089 1x Compact Lens Support CLS-1K2.0038783 1x LLS-1 Lens BridgeFor TRINITY 2, ARTEMIS 2, TRINITY Gen. 1, 360 EVO, SRH-3, SRH-360, MAXIMA
The DUB-2 is a connecting piece for cameras rigged for stabilizers such as Artemis 1 as well as Tiffen or GPi Pro stabilizers. The DUB-2 allows cameras to be swiftly mounted to the back of a film cart for prep, or on a fluid head for an quick shot.
The new generation of the Tally system is now fully digital. This guarantees constant luminosity in the host and client modules, regardless of whether the tally LED on the camera is bright.The set includes the Tally host and client module as well as all required cables.Includes:K2.0044490 1x Tally System Gen2 / HostK2.0044491 1x Tally System Gen2 / ClientK2.0010482 1x Tally Sensor Cable, Gen.1 & 2K2.0044143 2x Tally Gen.2 Pwr, TST-2, Fischer 3pin to Lemo 0S 3pin, 0,35m / 13.7inFor ARTEMIS 2 only.
The new generation of the Tally system is now fully digital. This guarantees constant luminosity in the host and client modules, regardless of whether the tally LED on the camera is bright.The set includes the Tally host and client module as well as all required cables.Includes:K2.0044490 1x Tally System Gen2 / HostK2.0044491 1x Tally System Gen2 / ClientK2.0010482 1x Tally Sensor Cable, Gen.1 & 2K2.0044142 2x Tally Gen.2 Pwr, TST-1, Lemo 0S 3pin to 0S 3pin, 0,35m / 13.7inFor artemis Gen.1 only!

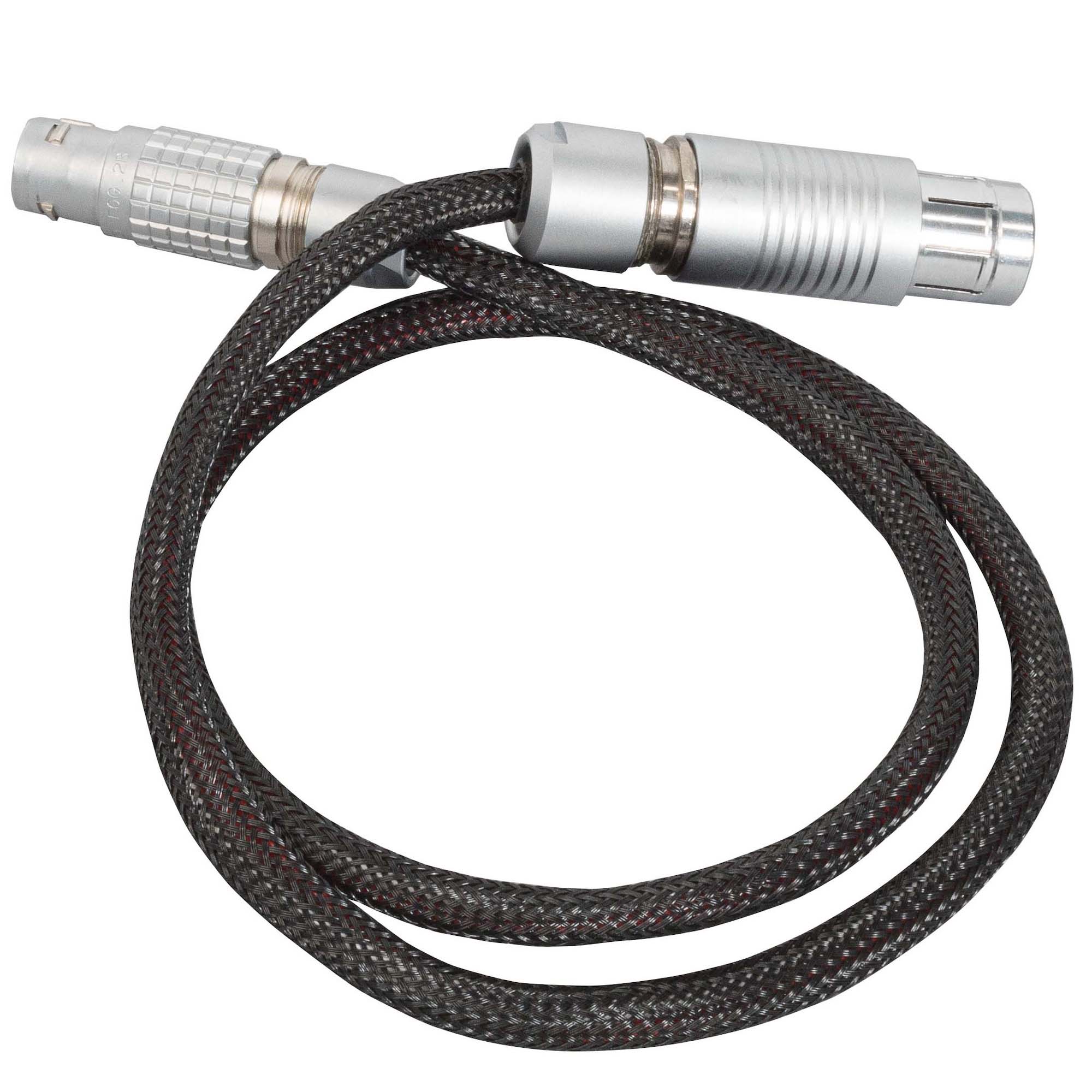

12V/24V high-capacity battery power cable set to connect a 12V/24V block battery to the 360 EVO, SRH-3 and SRH-360.includes:K2.0019306 1x SRH High-Capacity Battery Power Cable, 12V/24V, 0.5m/1.64ftK2.0021429 1x SRH High-Capacity Battery Power Cable 24V, 3-pin XLR, 20m/66ftK2.0021430 1x SRH High Capacity Battery Power Cable 12V, 4-pin XLR, 20m/66ftLength: 20m/66ftFor 360 EVO and SRH-3 and SRH-360
The Dovetail Utility Base DUB-1 allows camera rigs using ARRI CSS standard dovetails (QL-plates, SAM plates, Stabilizer Plate for CBP...) to mount to any “touch and Go 35” support for camera prep or quick switch from ARRI CSS to fluid heads. The DUB-1 features a 20mm rise to leave room for lens motor brackets and cables.Length: 144mm / 5,6inchWeight: 475g / 16,7oz
The Mitchell Wedge Lock allows quick and tool-free mounting on any flat base tripod. Simply place on the Flat Base, turn the wing screw and the Mitchell Mount is firmly clamped.The Mitchell Wedge Lock Adapter Disk is designed for use with the DRW-1 Base (KK.0021212).Set includes Mitchell Wedge Lock and Mitchell Wedge Lock adapter disk and screws:4 x 3/8 - 16 UNC x 0.875 4 x 1/4-20 UNC8 x 4 x 10 mm6 x 6 x 16 mm
The EJS-1 external joystick uses the so-called broadcast joystick, known from the SRH-360 & 360 EVO. In addition to pan and tilt, the broadcast joystick offers the option of assigning roll or zoom to the joystick. A button on the upper part of the joystick can be used to trigger pre-programmed functions.
12V/24V high-capacity battery power cable set to connect a 12V/24V block battery to the 360 EVO, SRH-3 and SRH-360.includes:K2.0019306 1x SRH High-Capacity Battery Power Cable, 12V/24V, 0.5m/1.64ftK2.0021427 1x SRH High-Capacity Battery Power Cable 24V, 3-pin XLR, 10m/33ftK2.0021428 1x SRH High-Capacity Battery Power Cable 12V, 4-pin XLR, 10m/33ftLength: 10m/33ftFor 360 EVO and SRH-3 and SRH-360
Modular center post extension to extent the 1.8in artemis center post by 21,6cm / 8.5in.diameter 1.8in, length 21,6cm / 8.5inLemo 3B 16 pinFor ARTEMIS 2 and TRINITY 2
With this monitor yoke, theTransvodeo Stargate 7in monitor can be mounted in existing monitor brackets.NOTEThe monitor yoke only fits monitor brackets from 2022!
