PCA: Mechanical Accessories - Support Systems - Mounts & Brackets

Bracket with 26 mm dovetail (insert side) interface on 15 mm rod, attaches to ARRIHEAD rosette, can be pivoted on rosette or slid along rod. For use with 26 mm shoe-mounted accessories such as UMC-3K2.52080.0 1x Adapter UMC 3/8inK2.52083.0 1x Dovetail Shoe 3/8in threador Wired Handgrip Attachments WHA-2 / WHA-3.

includes:K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0008955 1x EVF Bracket for Canon Monitor Unit

includes:K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0008624 1x EVF Bracket for Zacuto Gratical

includes:K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0010580 1x EVF Bracket for Panasonic VariCam

DSMC2 RED EVF Mounting Plate is needed for mounting.includes:K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0012522 1x EVF Bracket for RED DSMC2 viewfinder

With adjustable rod centering for all common digital cameras. Only compatible with QR-HD Cine Base Plate.

With adjustable rod centering for all common digital cameras. Only compatible with QR-HD Cine Base Plate.

includes:K2.0047643 1x NATO Accessory Rail NAR-30K2.0047854 1x NATO Accessory Rail NAR-60K2.0047631 1x NATO Accessory Rail NAR-90K2.0047771 1x NATO Rail Clamp NRC-5

Used on current ARRI cameras, this proven viewfinder bracket offers the best adjustment range and sturdiness for this type of viewfinder from the Sony FS7II/ FX9.

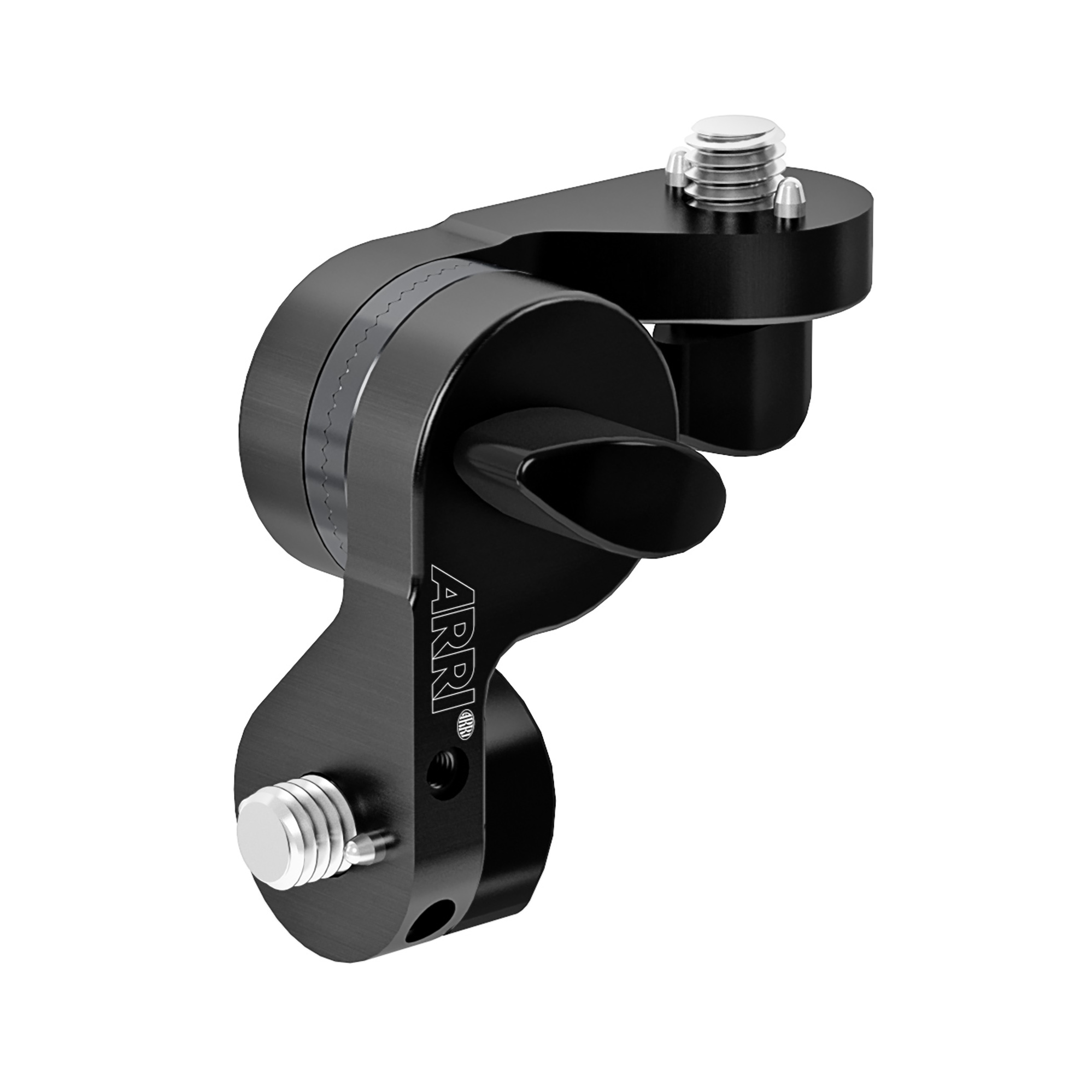

The strong hinge locks via a rosette and mounts through a standard 3/8-16 interface with removable anti-rotation pins. The ARRI Rosette Based Hinge is not limited to the Recorder and Battery Bracket, and can be used for other purposes.

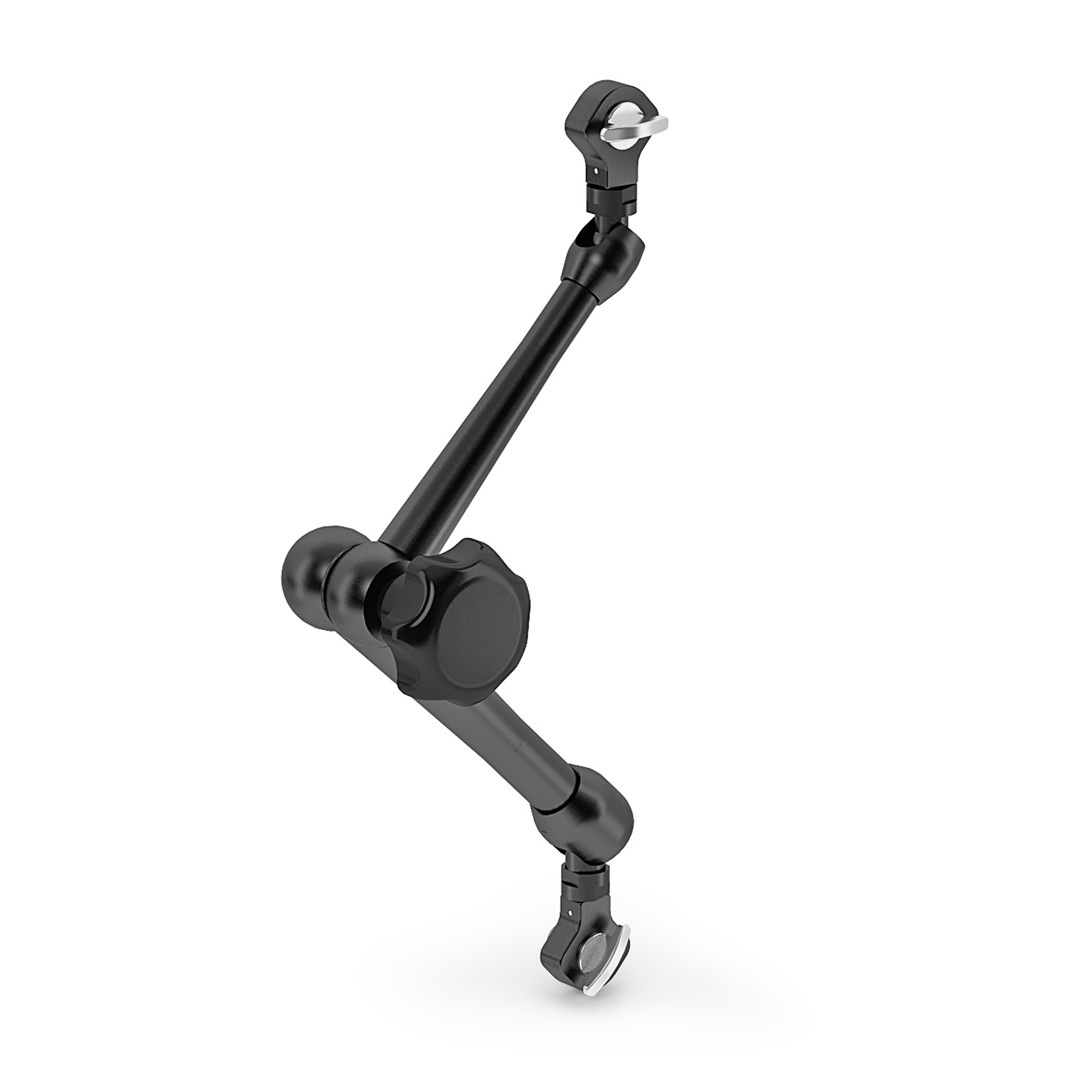

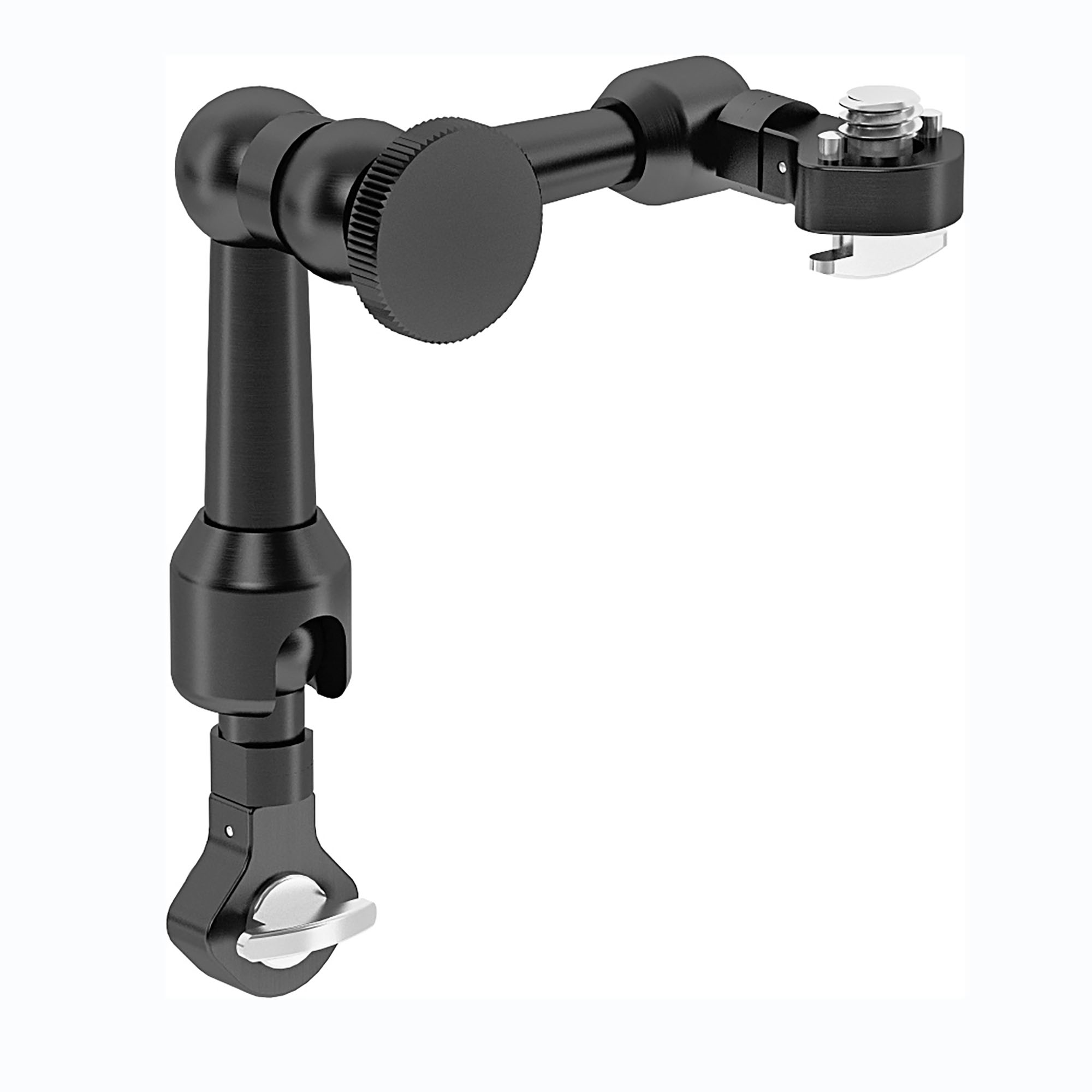

Articulated accessory holder arm for attaching accessories with 3/8-16 mounting points to cameras with 3/8-16 mounting points. 240mm / 9.4 long, with two swivel ball joints and one elbow joint.

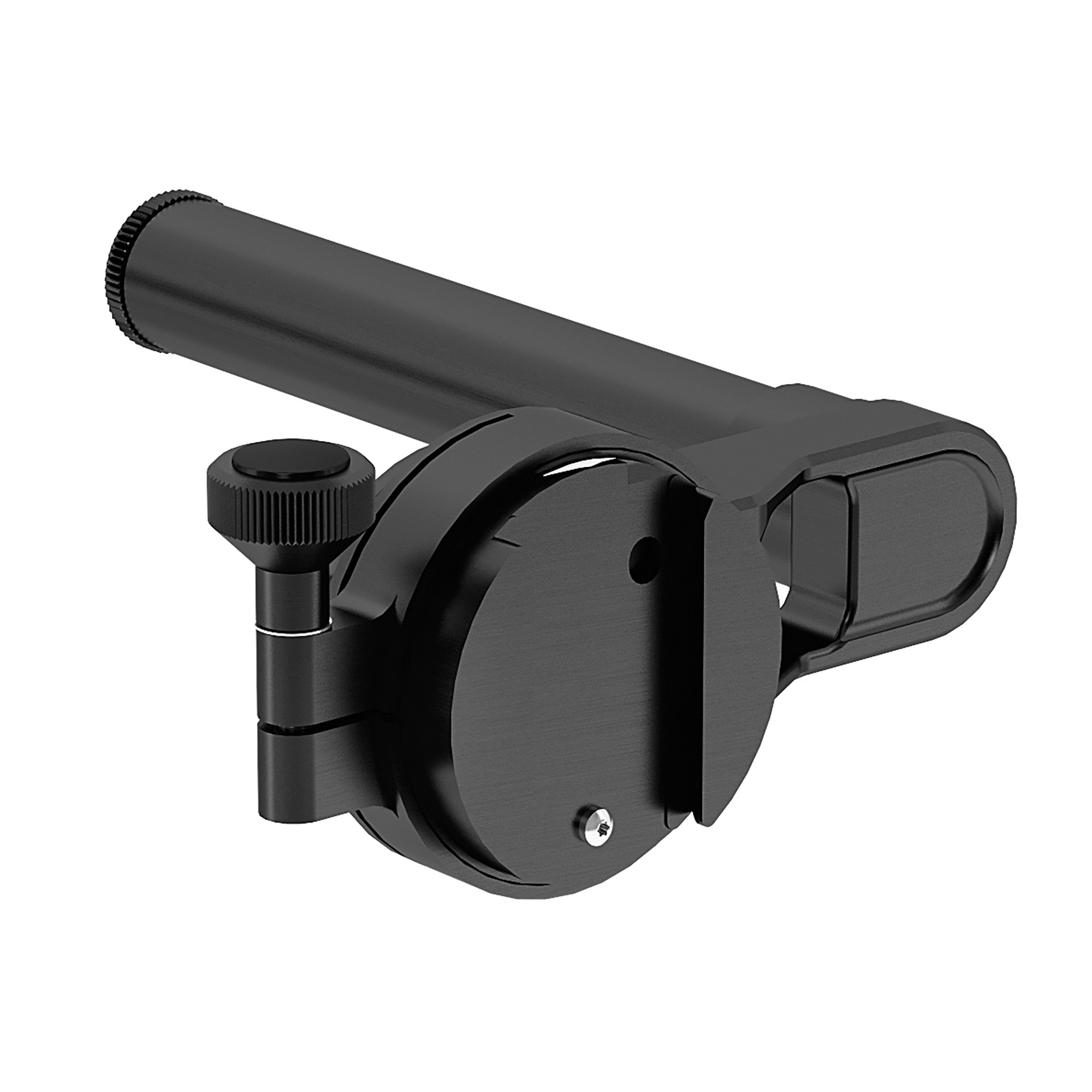

The ARRI Viewfinder Cross Pipe can be used in combination with the Viewfinder Mounting Bracket MVB-1 to attach ARRI or third party viewfinders in combination with the EVF brackets from ARRI PCA.

Offers protection and the possibility to attach accessories.NATO rail included with safety release mechanism.Provides multiple interfaces (NATO rail, ARRI Pin-Lock 3/8-16 and 1/4-20 threads).Mounted directly to the camera body using two M3 (Hex 3) screws and two dowel pins.Includes an additional 1/4-20 UNC thread that can be used either as a mounting interface or for securing a cable tie to provide cable strain relief.Compatible with Fujifilm GFX ETERNA 55 camera

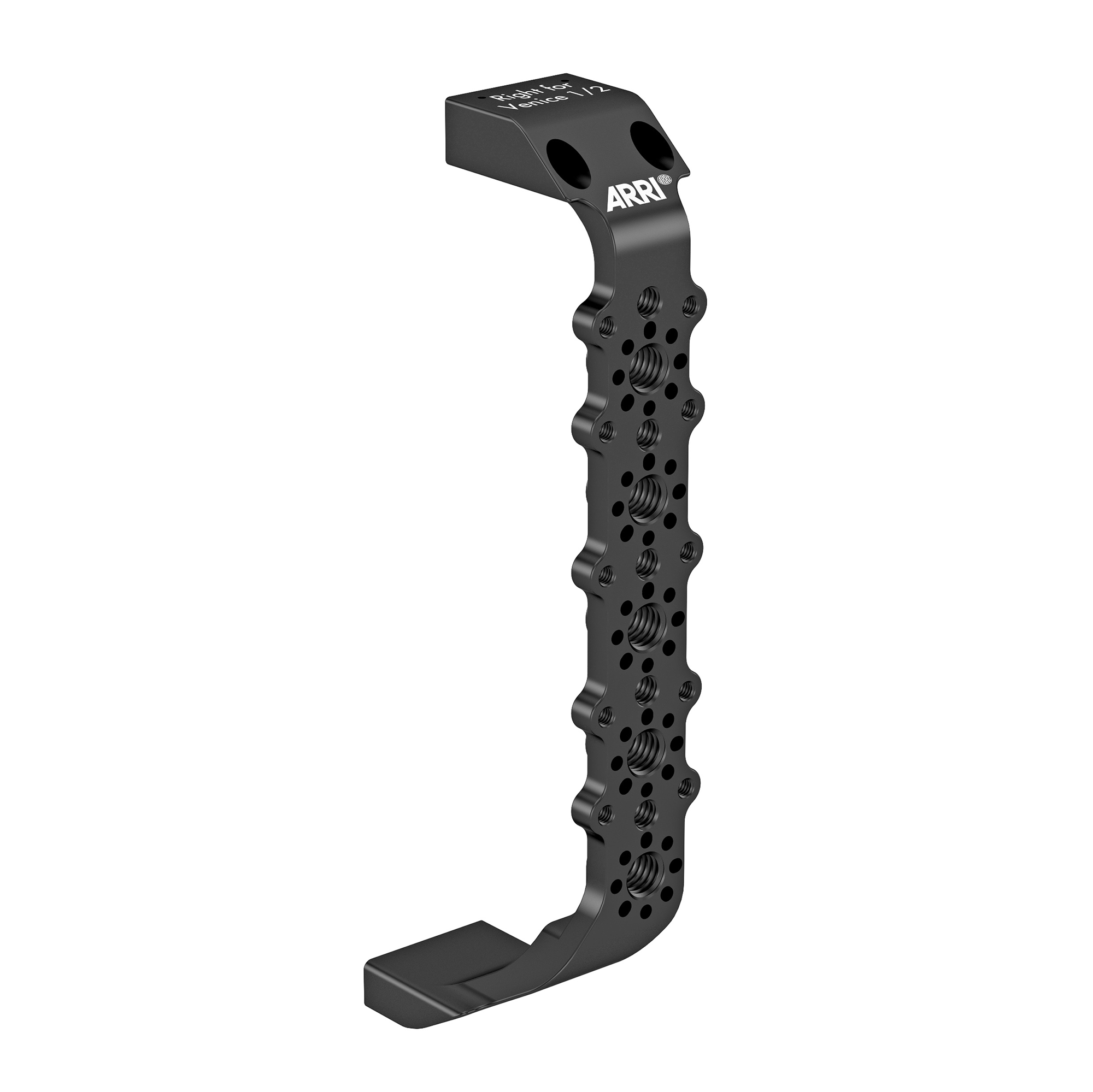

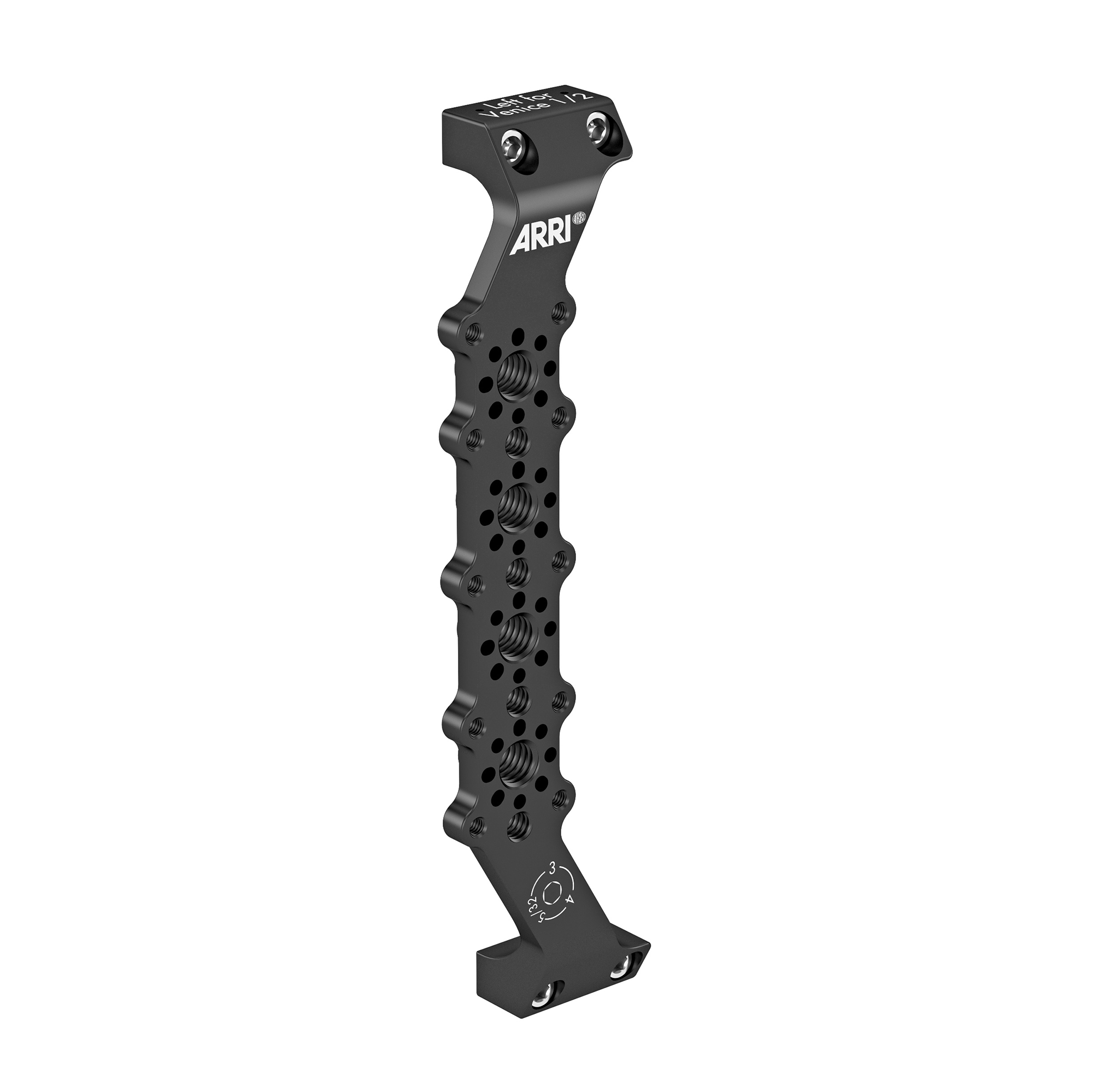

Compatible with the Top Plate for Sony Venice 1/2 and Plate for Sony Venice 1/2. Not compatible with Top Plate for Sony Venice and Plate for Sony Venice.The side bracket has been adapted in order to fit the geometry and controls of the camera. It offers 3/8-16, 1/4”-20, and M4 interfaces to fit with RMB-3, RMB-8, and RA-6.

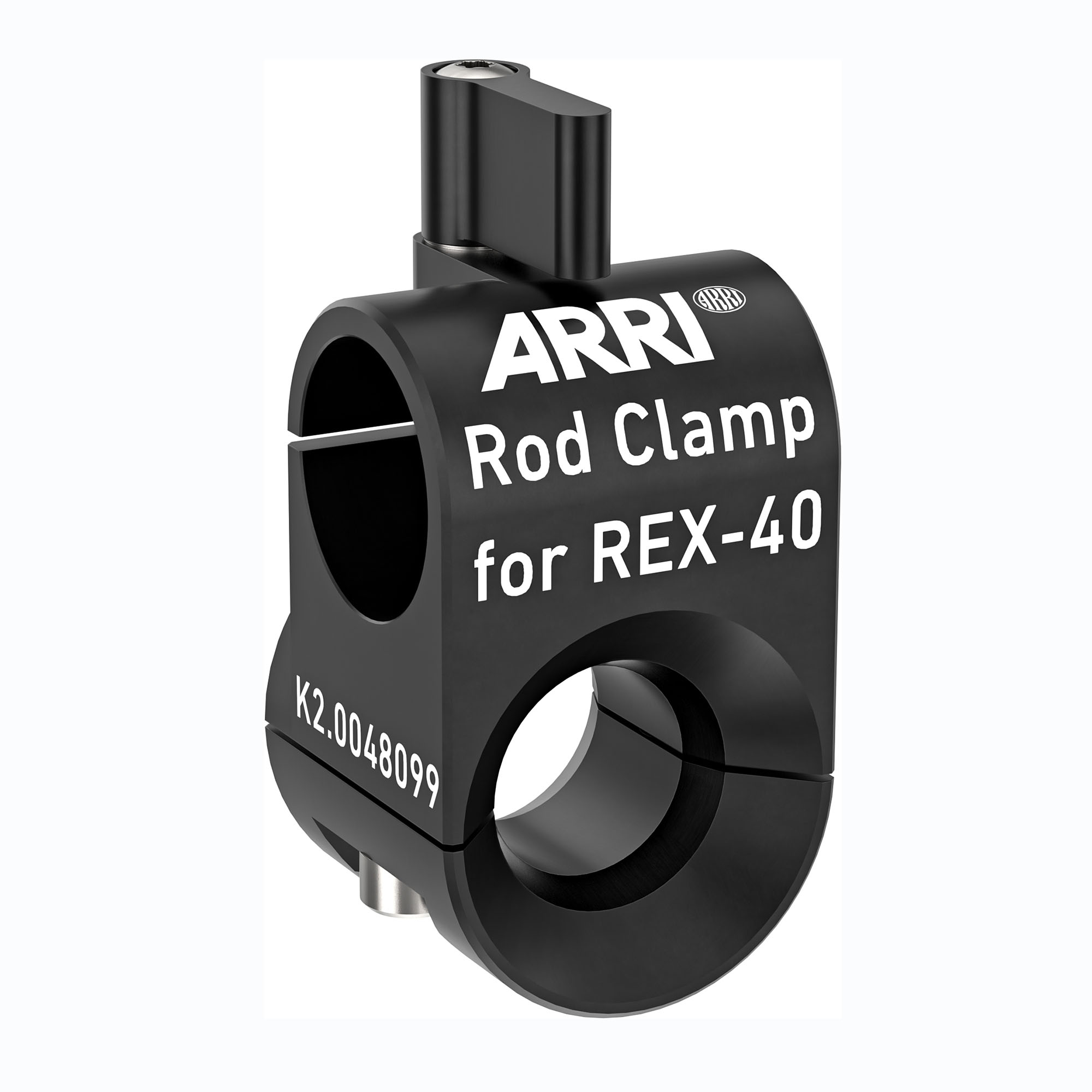

The Rosette Extension is a compact extension spacer featuring a 19mm rod clamp and a dedicated interface for the REX 40. The 19mm rod is secured via a wing screw. Compatible with any standard 19mm rod, it also supports our new Mountable Run Stop Button MRS-1.

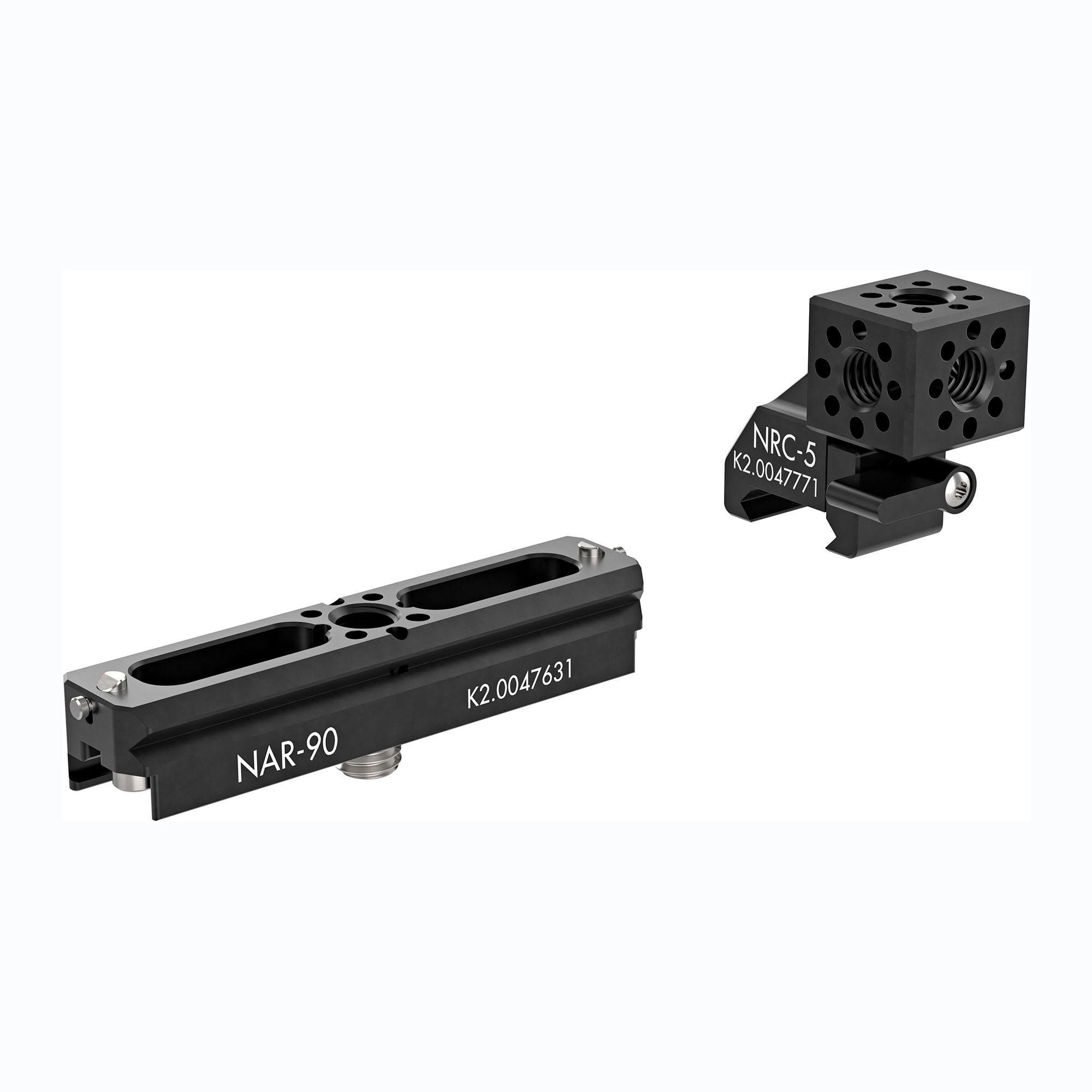

includes:K2.0047631 1x NATO Accessory Rail NAR-90K2.0047771 1x NATO Rail Clamp NRC-5

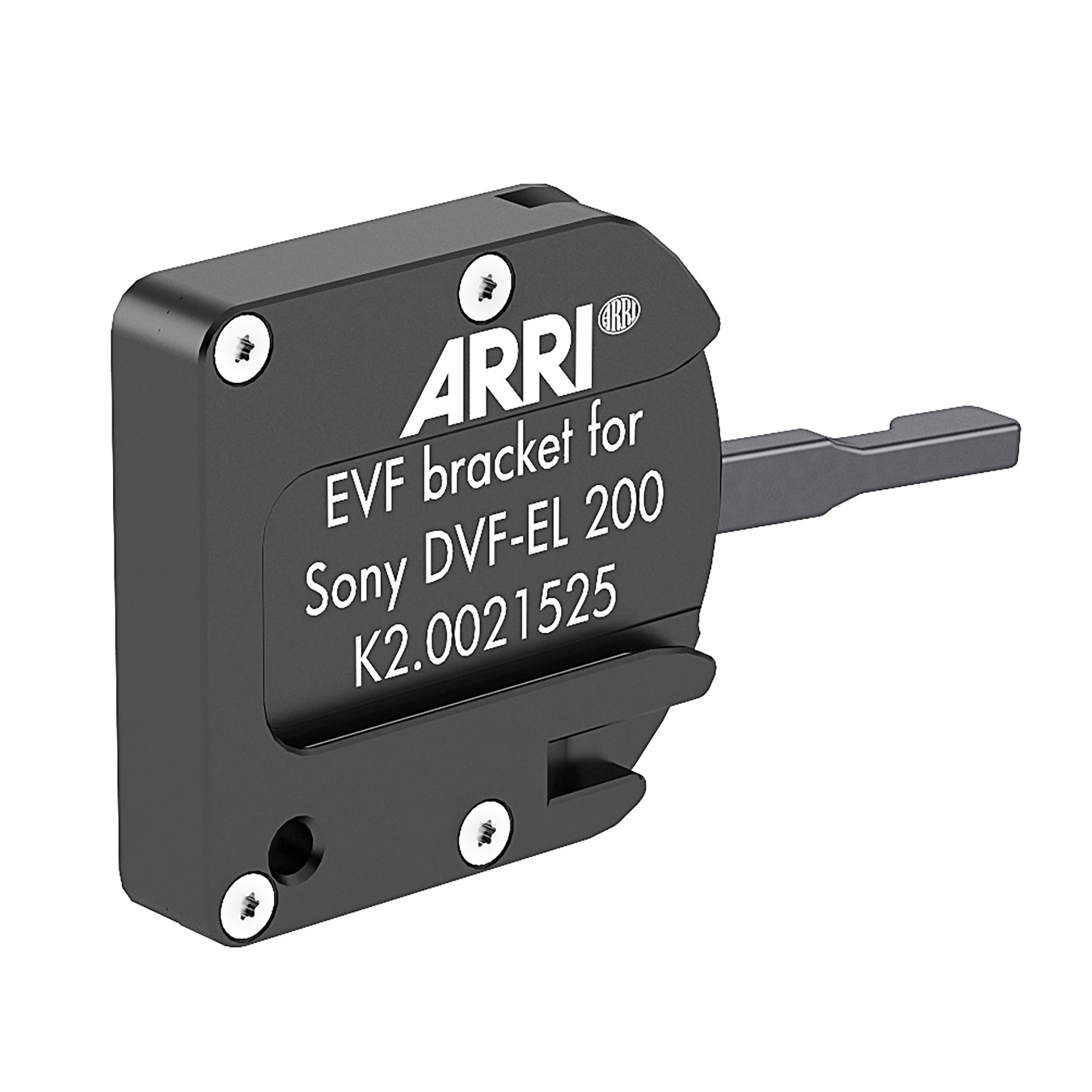

Viewfinder Bracket for Sony Viewfinder DVF-EL200 (Venice). It is compatible with ARRI`s viewfinder mounting bracket MVB-1.

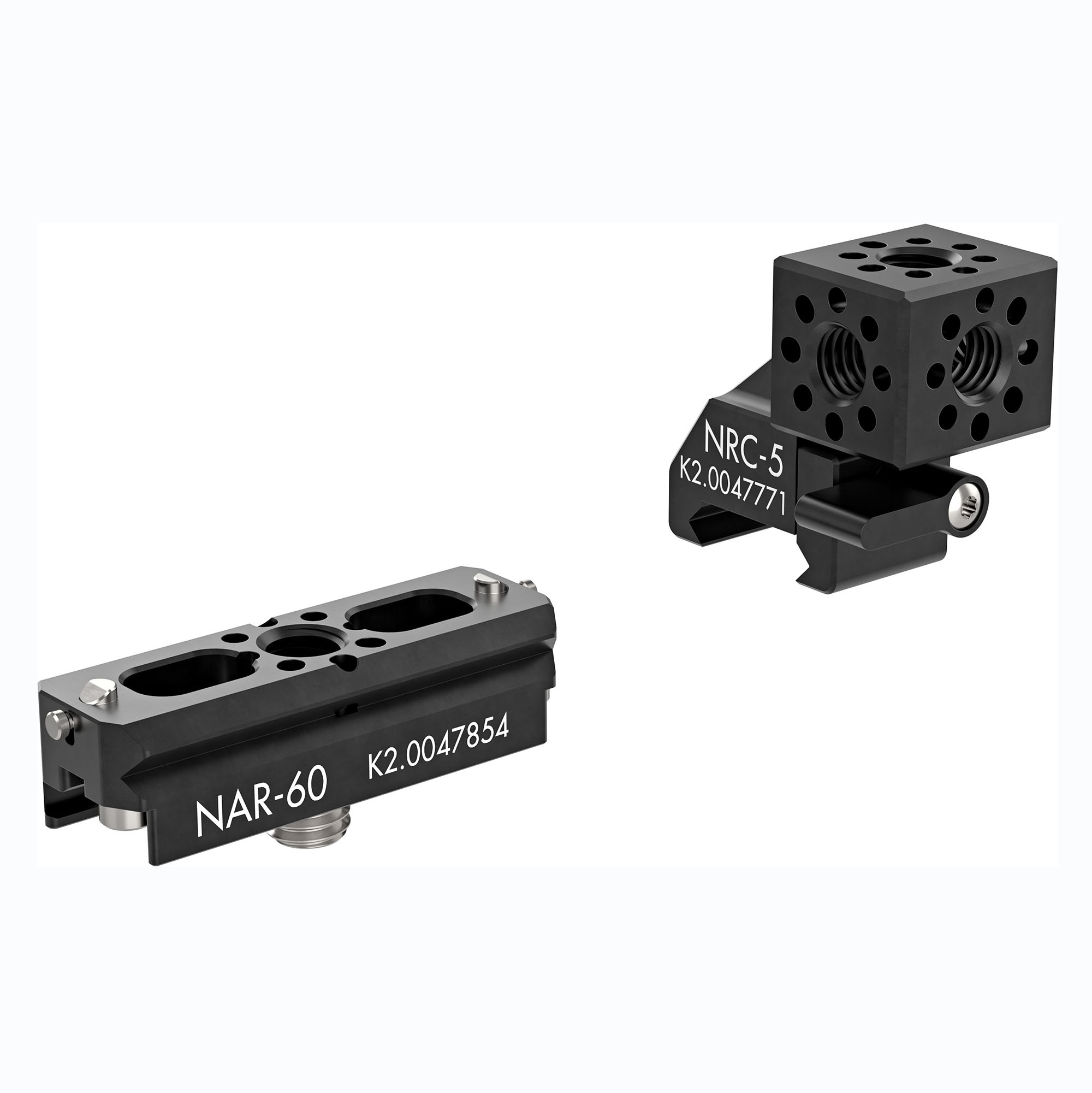

includes:K2.0047854 1x NATO Accessory Rail NAR-60K2.0047771 1x NATO Rail Clamp NRC-5

Side bracket for the left and right sides of the camera body, providing protection and multiple accessory mounting options.NATO rail included with safety release mechanism.Provides multiple interfaces (NATO rail, ARRI Pin-Lock 3/8-16 and 1/4-20 threads). Equipped with ARRI Multi-Hex (reduced Multi-Hex 3/4) screws.Mounted using one screw to the Top NATO Rail and two screws to the Base Plate – all three screws are captive.The Top NATO Rail and Base Plate are required for proper installation of the side brackets.When used in combination with the Top NATO Rail, the side brackets provide integrated cable routing and strain relief.Compatible with Fujifilm GFX ETERNA 55 camera.

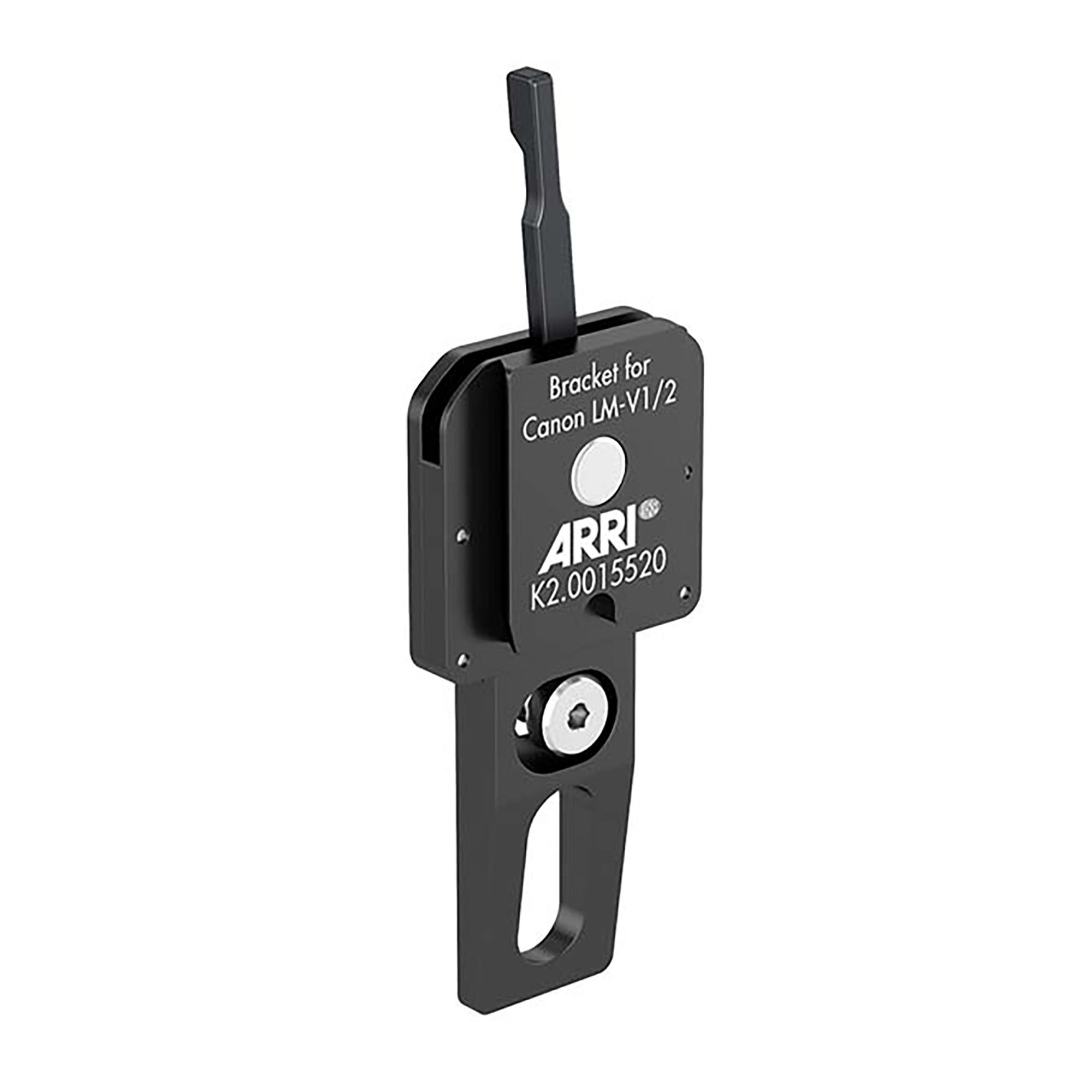

The monitor bracket for the Canon LM-V1/2 replaces the original bracket from Canon. The ARRI PCA monitor bracket is an improved bracket to fit with viewfinder mounting bracket MVB-1. It is compatible with the LCD from the C200, C300 MkIII and C500 MkII.

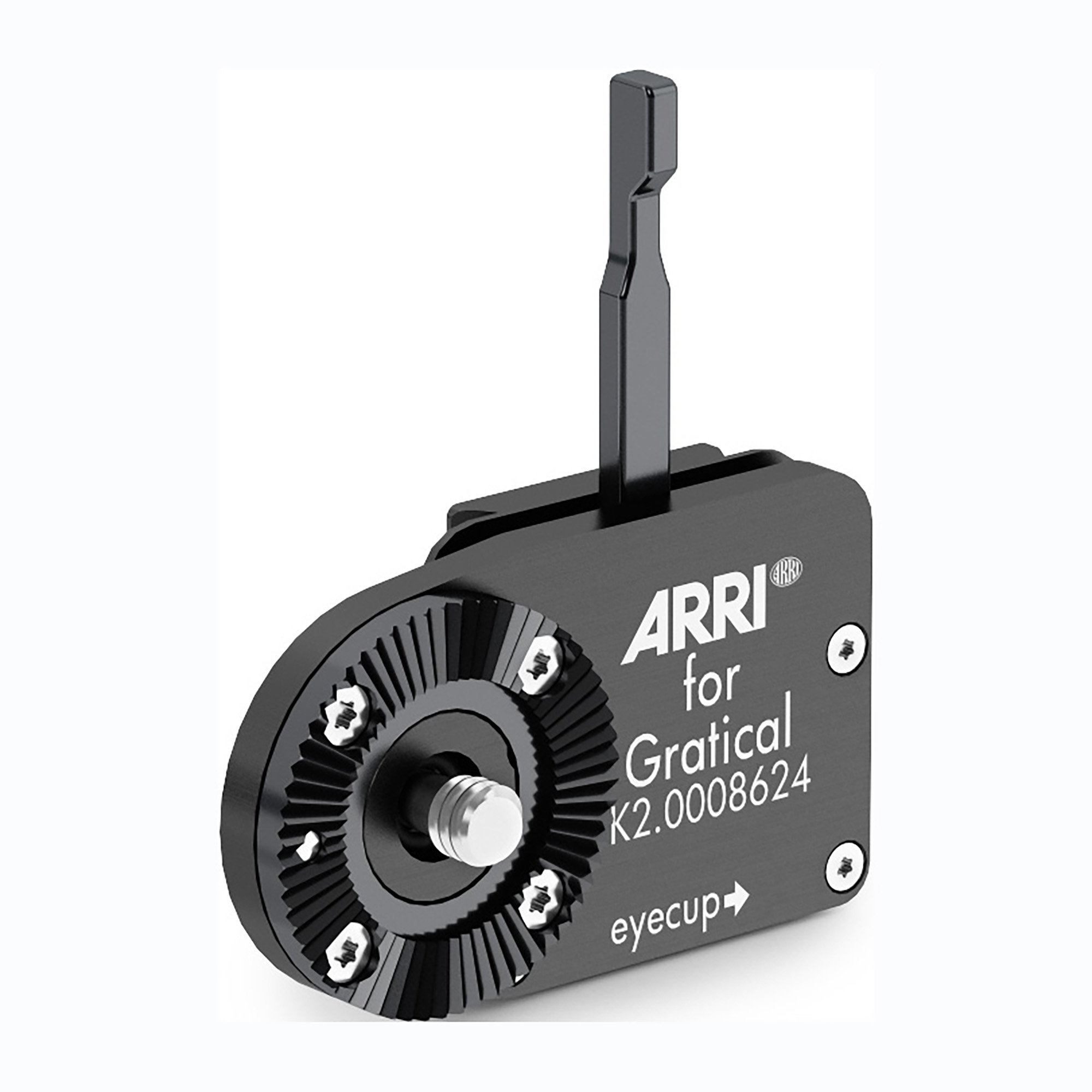

The bracket for Zacuto Gratical EVF electronic viewfinder provides a design-specific interface to the traditional ARRI viewfinder support. Also compatible with Zacuto Gratical Eye.

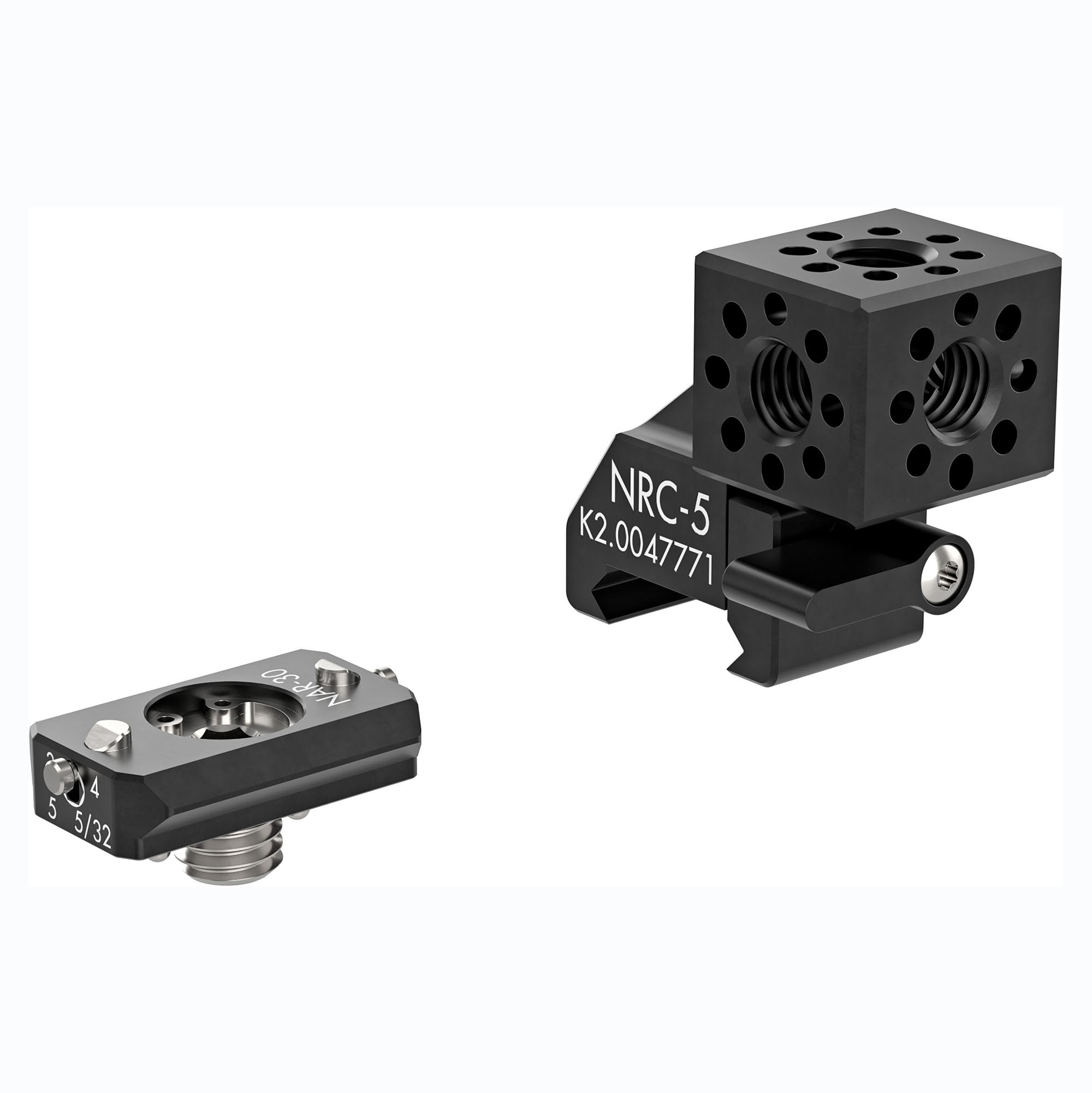

includes:K2.0047643 1x NATO Accessory Rail NAR-30K2.0047771 1x NATO Rail Clamp NRC-5

The side bracket has been adapted to the geometry and controls of the camera. It offers additional stability, additional 3/8 interfaces and a RA-6 interface.

Weight-optimized side bracket to increases stability and protects the camera.

Compatible with the Top Plate for Sony Venice 1/2 and Plate for Sony Venice 1/2. Not compatible with Top Plate for Sony Venice and Plate for Sony Venice.The side bracket has been adapted in order to fit the geometry and controls of the camera. It offers 3/8-16, 1/4”-20, and M4 interfaces to fit with RMB-3, RMB-8, and RA-6.

Offers protection and the possibility to attach accessories.NATO Rail included with safety release mechanism.Provides multiple interfaces (NATO rail, ARRI Pin Lock 3/8 and ¼ inch).ARRI Multi-Hex screws implemented.Top and bottom plate is necessary for mounting the side bracket.

Offers protection and the possibility to attach accessories.NATO Rail included with safety release mechanism.Provides multiple interfaces (NATO rail, ARRI Pin Lock 3/8 and ¼ inch).ARRI Multi-Hex screws implemented.Top and bottom plate is necessary for mounting the side bracket.

Side bracket for the left and right side of the camera body. Offers protection and the possibility to attach accessories.NATO Rail included with safety release mechanism.Provides multiple interfaces (NATO rail, ARRI Pin Lock 3/8 and 1⁄4 inch).ARRI Multi-Hex screws implemented.Top and bottom plate is necessary for mounting the side bracket.Compatible with Sony VENICE Extension System Mini.

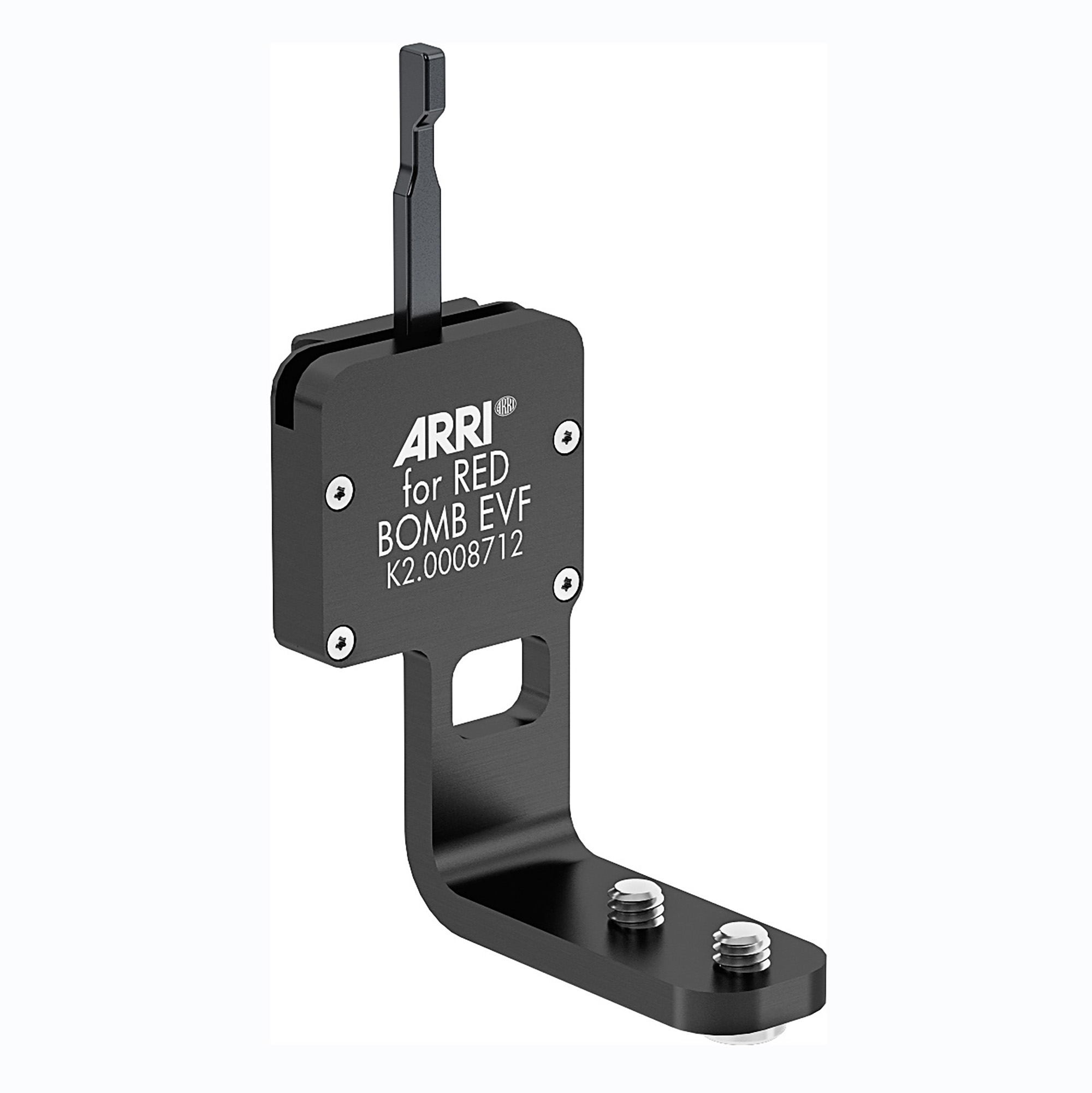

The viewfinder bracket for BOMB EVF (LCOS) allows the viewfinder to be attached to a camera via a classic ARRI viewfinder mount, such as the Mini Viewfinder Bracket MVB-1.

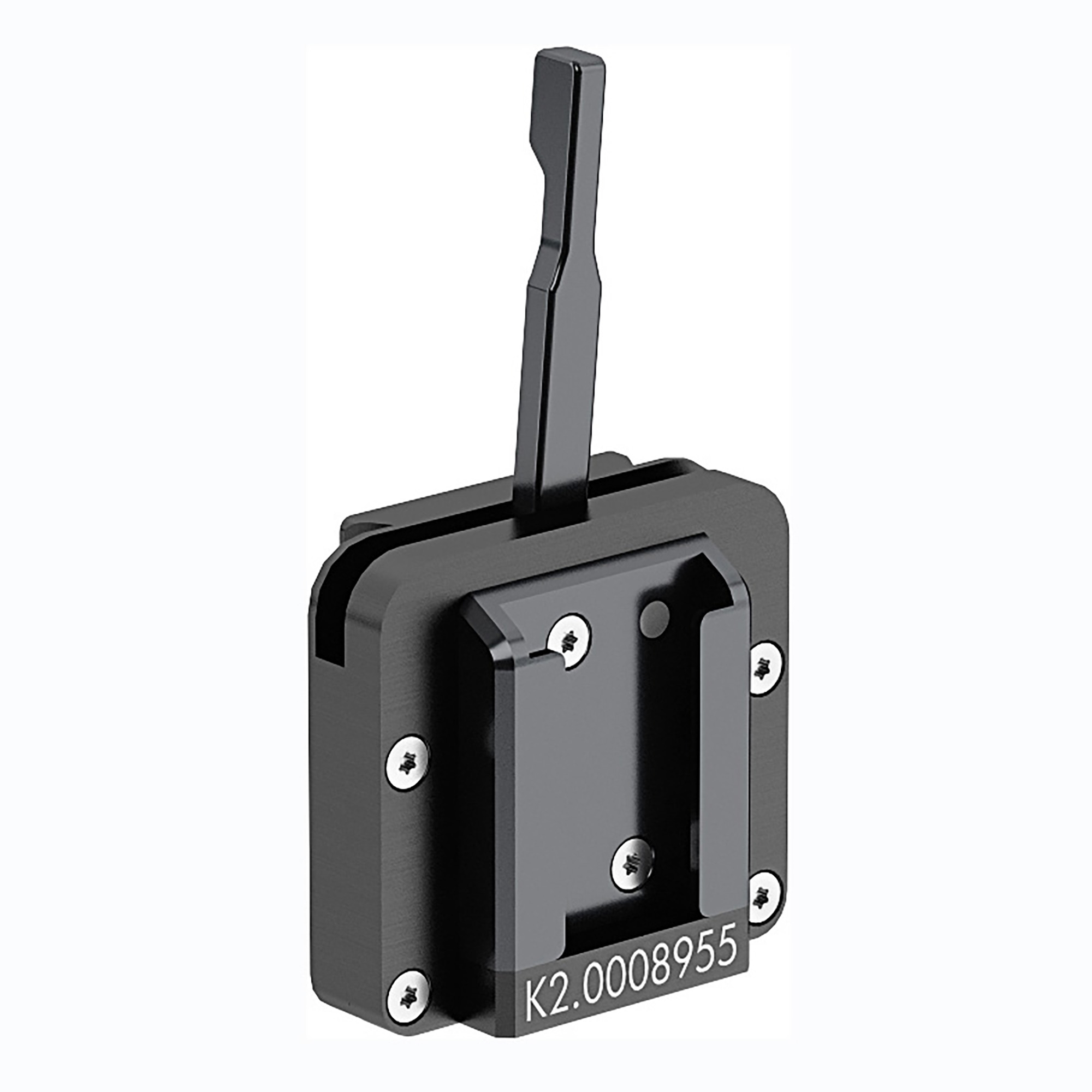

This bracket connects the Canon Monitor Unit to the traditional ARRI viewfinder mount, in order to benefit from the same ease of repositioning as a traditional electronic viewfinder.

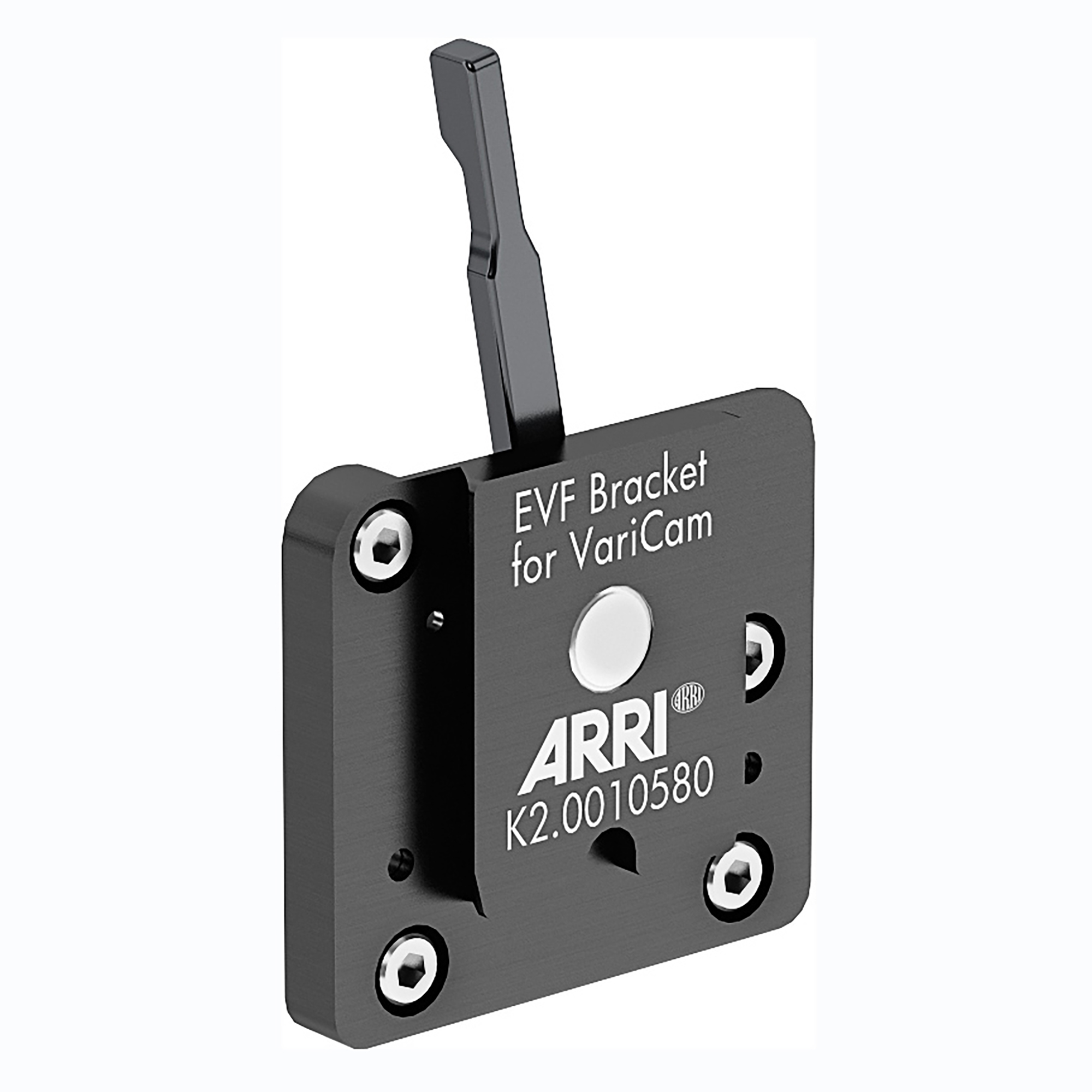

The Viewfinder Bracket for VariCam is attached to the camera viewfinder in place of the original quick release mechanism. This allows compatibility between the VariCam electronic viewfinder and classic ARRI mounts such as the Mini Viewfinder Bracket MVB-1.Compatibel with VariCam LT & VariCam 35/HS

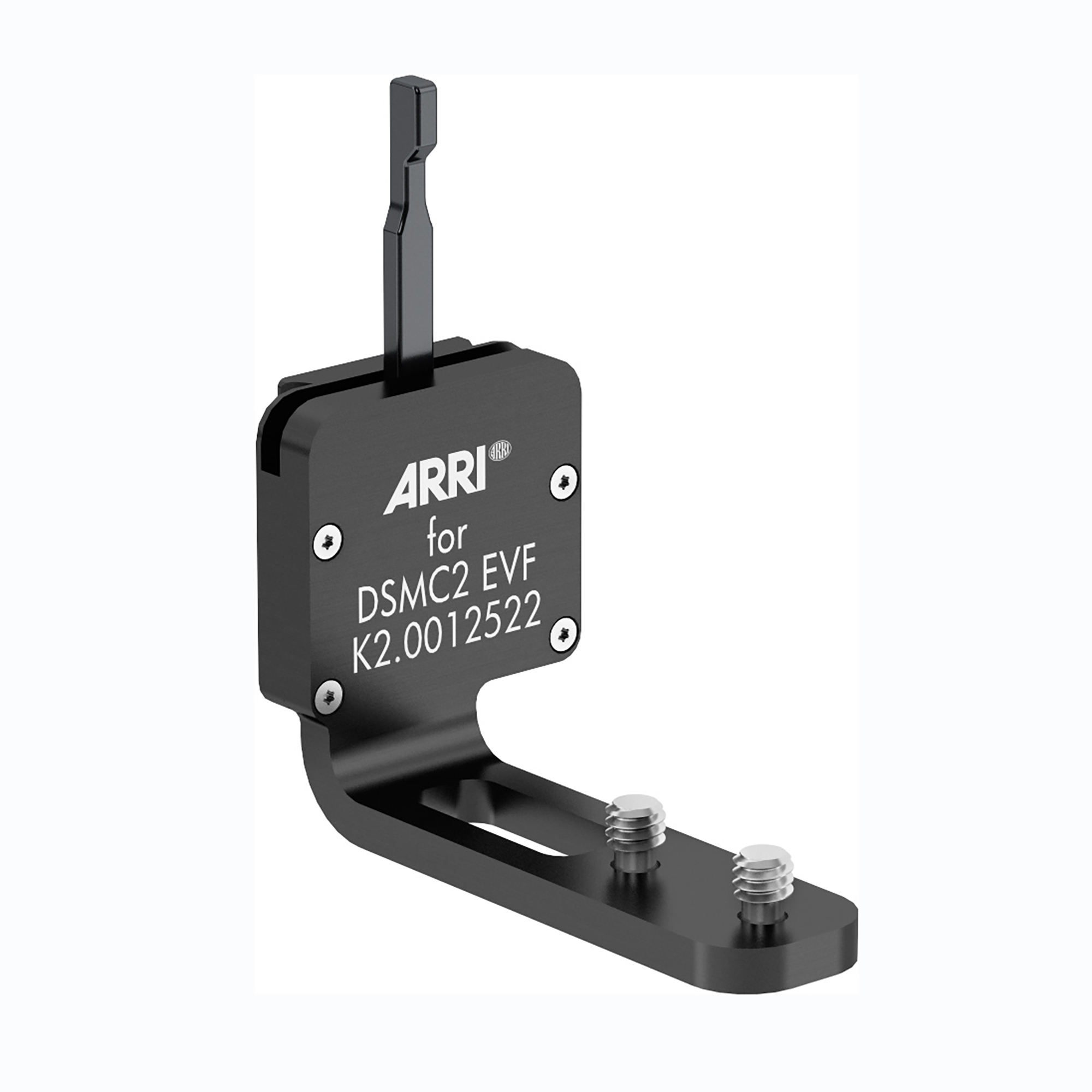

The viewfinder bracket for DSMC2 RED EVF (OLED) allows the viewfinder to be attached to a camera via a classic ARRI viewfinder mount, such as the Mini Viewfinder Bracket MVB-1. DSMC2 RED EVF Mounting Plate is needed for mounting.

The Bracket attaches the AU-EVA1 Monitor via 15mm LWS rods and a monitor mount.

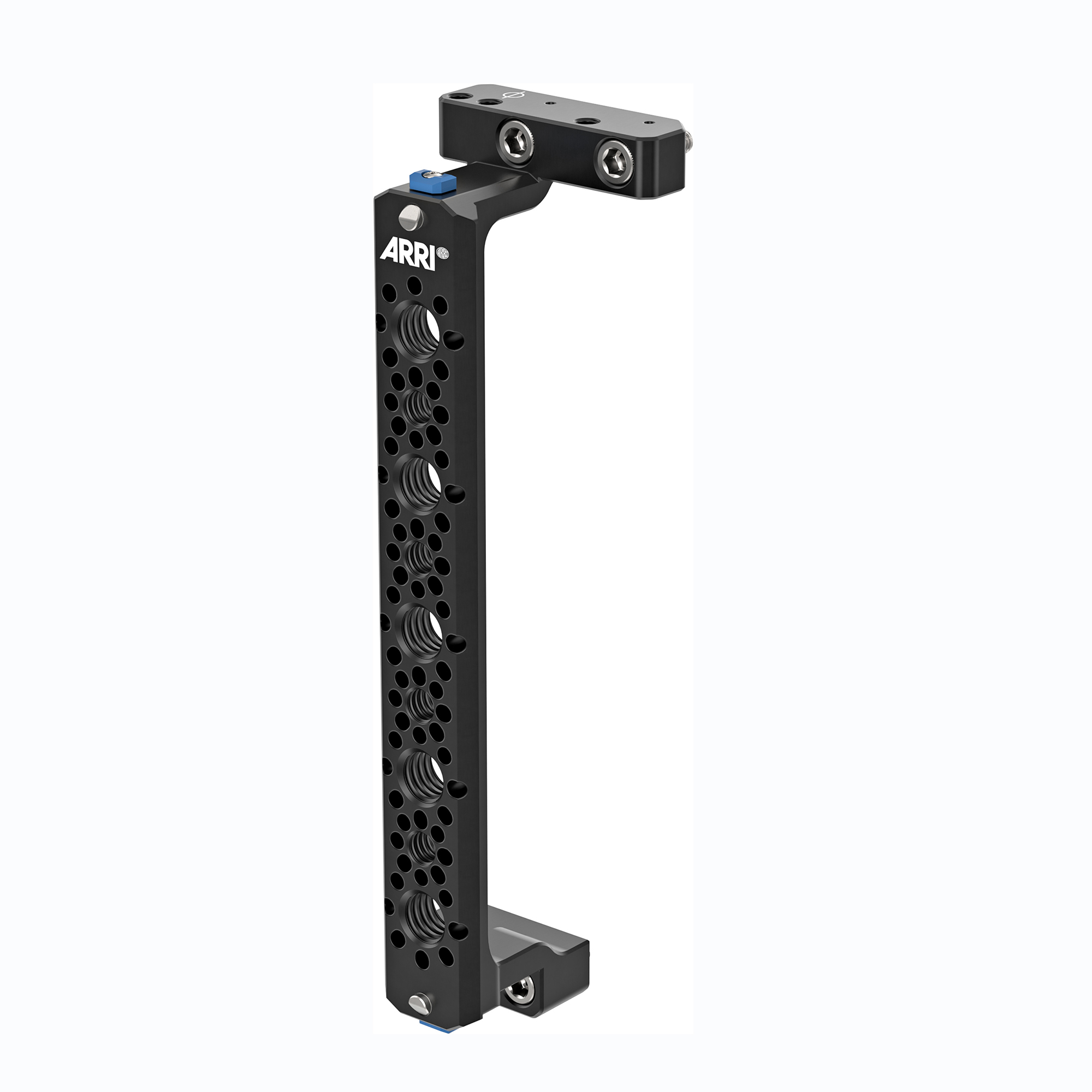

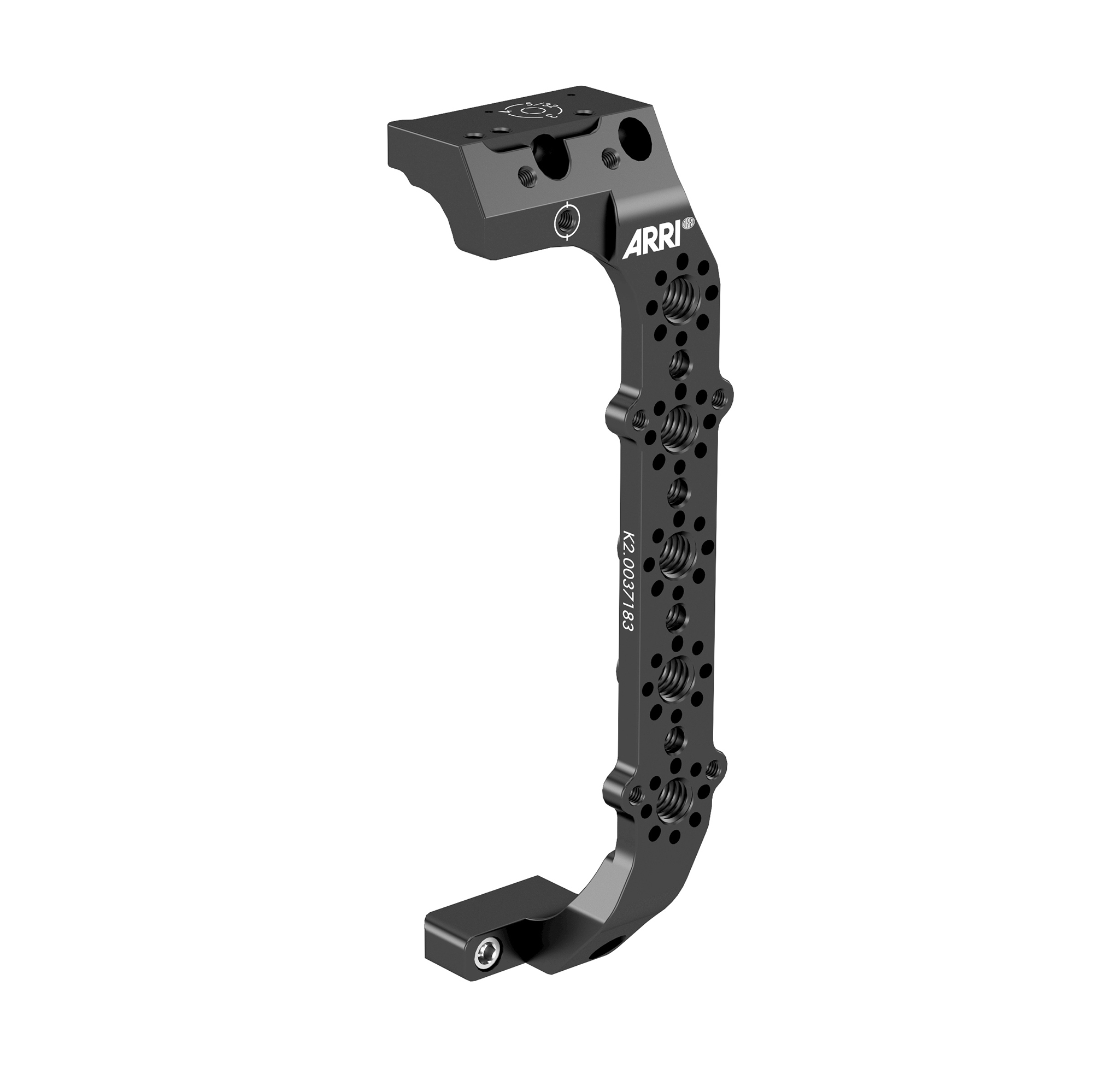

The Side Bracket Right has been adapted to the geometry and controls of the camera. It offers additional stability and interfaces such as 3/8-16, 1/4-20, RMB-3 and for the Canon Microphone bracket. It is compatible with the rosette adapters RA-6.

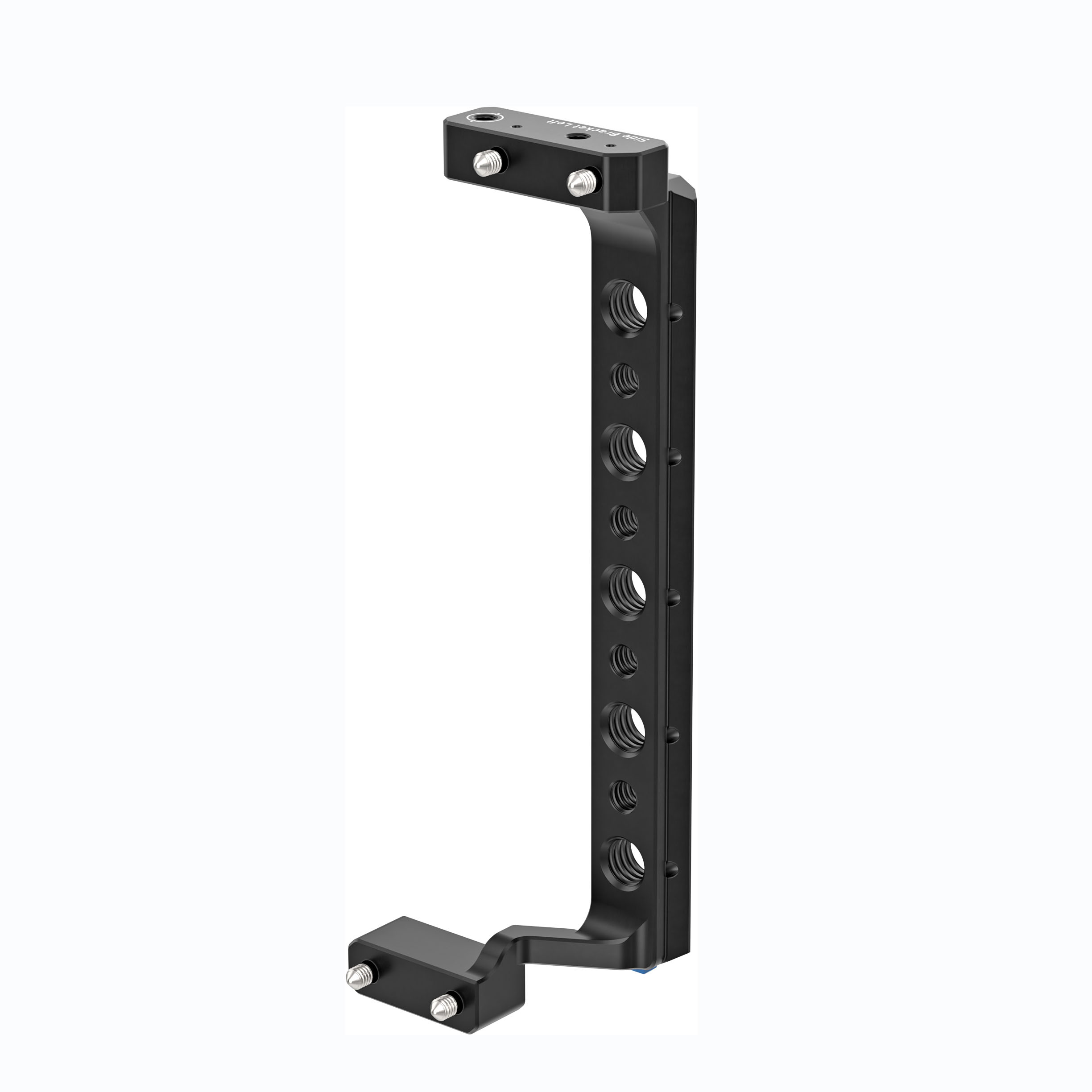

The Side Bracket Left has been adapted to the geometry and controls of the camera. It offers additional stability and interfaces such as 3/8-16, 1/4-20 and RMB-3. It is compatible with the rosette adapters RA-6.

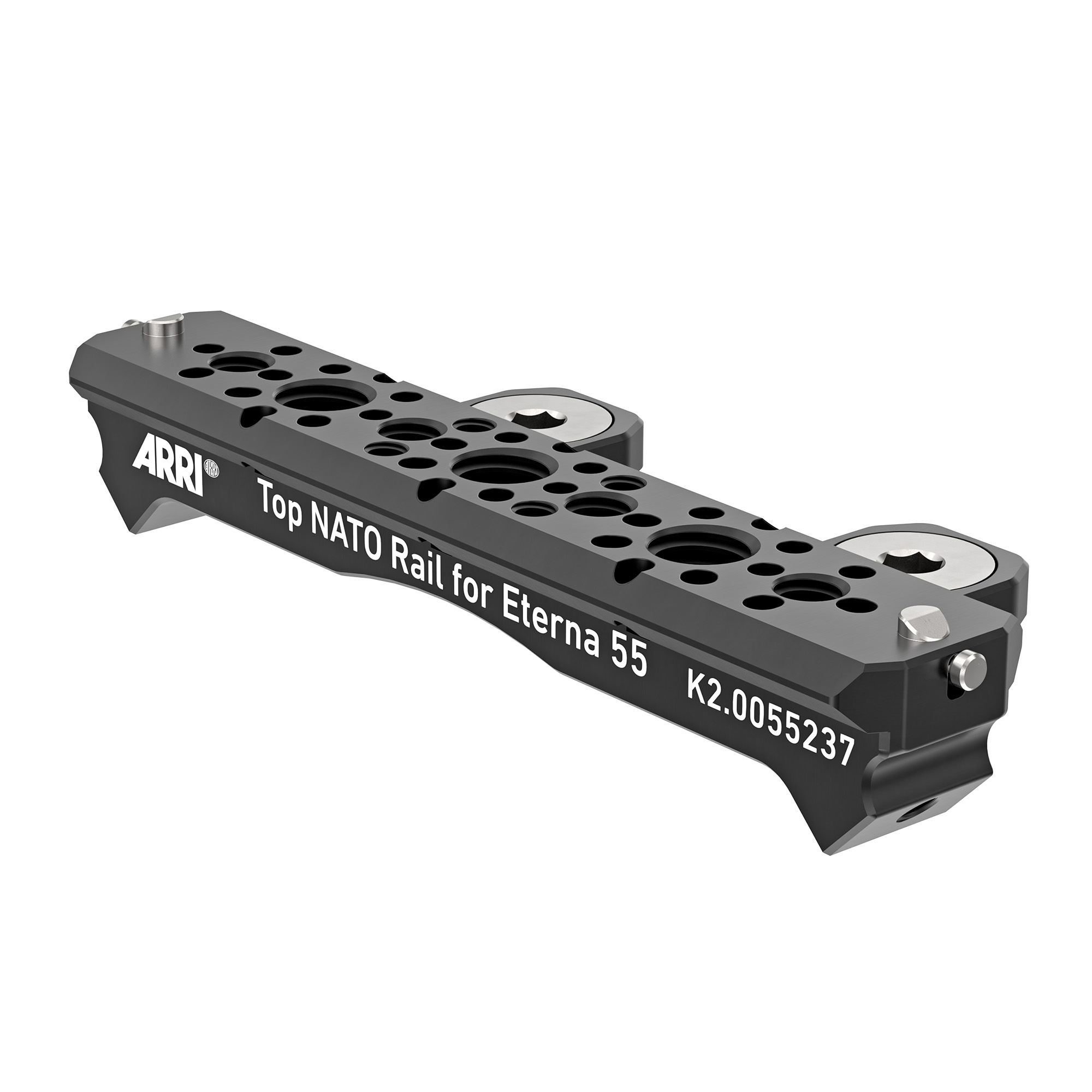

The Top NATO Rail for ETERNA is a top-mounted NATO rail designed to offer a mounting option for the NRC-1. When used in combination with the side brackets, it provides integrated cable routing and strain relief. The Top NATO Rail serves as an integrated stopper for the native Fujifilm camera handle and top plate, maintaining full NATO rail functionality and allowing smooth, unobstructed travel when using ARRI NATO components such as the NRC-1. It is also compatible with the ARRI CTH-2 top handle, enabling full 360° rotation.Compatible with Fujifilm GFX ETERNA 55 camera.

Offers protection (for the viewfinder plug) and the possibility to attach accessories.NATO Rail included with safety release mechanism.Provides multiple interfaces (NATO rail, ARRI Pin Lock 3/8 and ¼ inch).ARRI Multi-Hex screws implemented.

The viewfinder bracket for the Canon EVF-V70 replaces the original bracket from Canon mounted on their viewfinders. It is compatible with ARRI`s viewfinder mounting bracket MVB-1. Canon`s EVF-V70 works with C200 and C500 MkII.

Compatible with NIA-1, LCUBE CUB-1, and CUB-2 via sprung-loaded dovetail interface. Tool-free 3/8-16 mounting interface via knurled thumbwheel. ARRI Pin-Lock interface ensures secure positioning. Includes a pair of M4 mounting holes for attaching accessories such as cable clamps or an RMB-3.

A 19mm rod holder in vertical direction to the NATO rail attachment. For 15mm rods a reduction insert (K2.66255.0) is available.

For CCB-2 Clamp Bridge-2 (K2.0049885).Always mounted on the outer M4 screws.Additional compatibility with MAC-1, RMB-3/7/8, HEX- 1/2/3/4/5/90/A, CTH-1, NRC-1/2/3/4/5/6, and Counterweight CW-1/2/3/4.

Functions independently or in combination with the Swivel Mechanism Bracket via the ARRI Accessory Rail and can be mounted anywhere on the camera body or rig with an M4 mounting interface.With its ARRI Accessory Rail as a Mounting Interface on the back it is compatible with ARRI‘s AMP-1 (K2.0034182)Additional compatibility with MAC-1, RMB-3/7/8, HEX- 1/2/3/4/5/90/A, CTH-1, NRC-1/2/3/4/5/6, and Counterweight CW-1/2/3/4

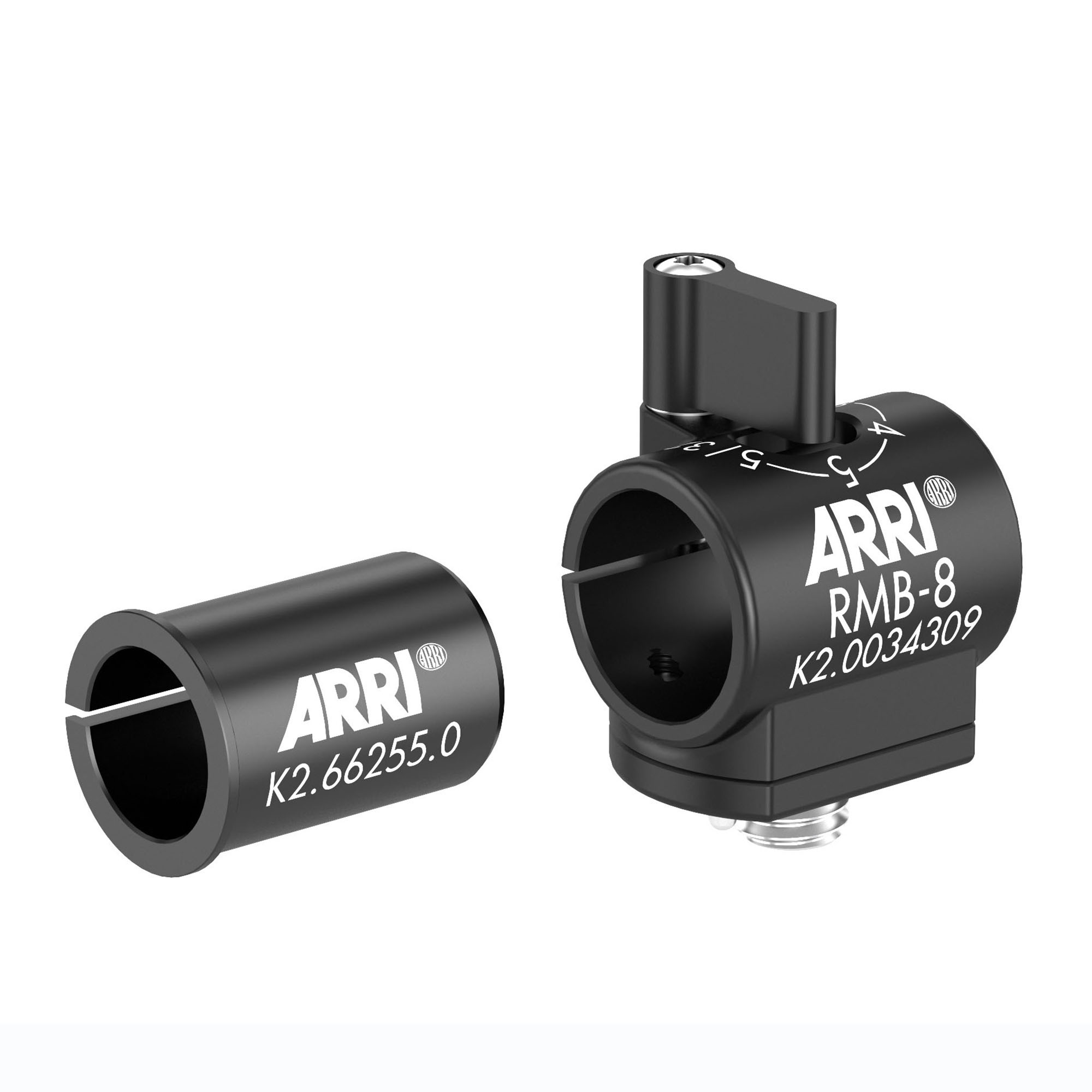

includes:K2.0034309 1x Rod Mounting Bracket RMB-8K2.66255.0 1x 15mm Reduction Insert

ARRI rosette attachment bracket for handgrips to be used with NATO rails. Allows smooth vertical adjustment along the rail for flexible positioning and comfort.

The monitor bracket allows the camera monitor to be repositioned on top-mounted 15 mm LWS rods.

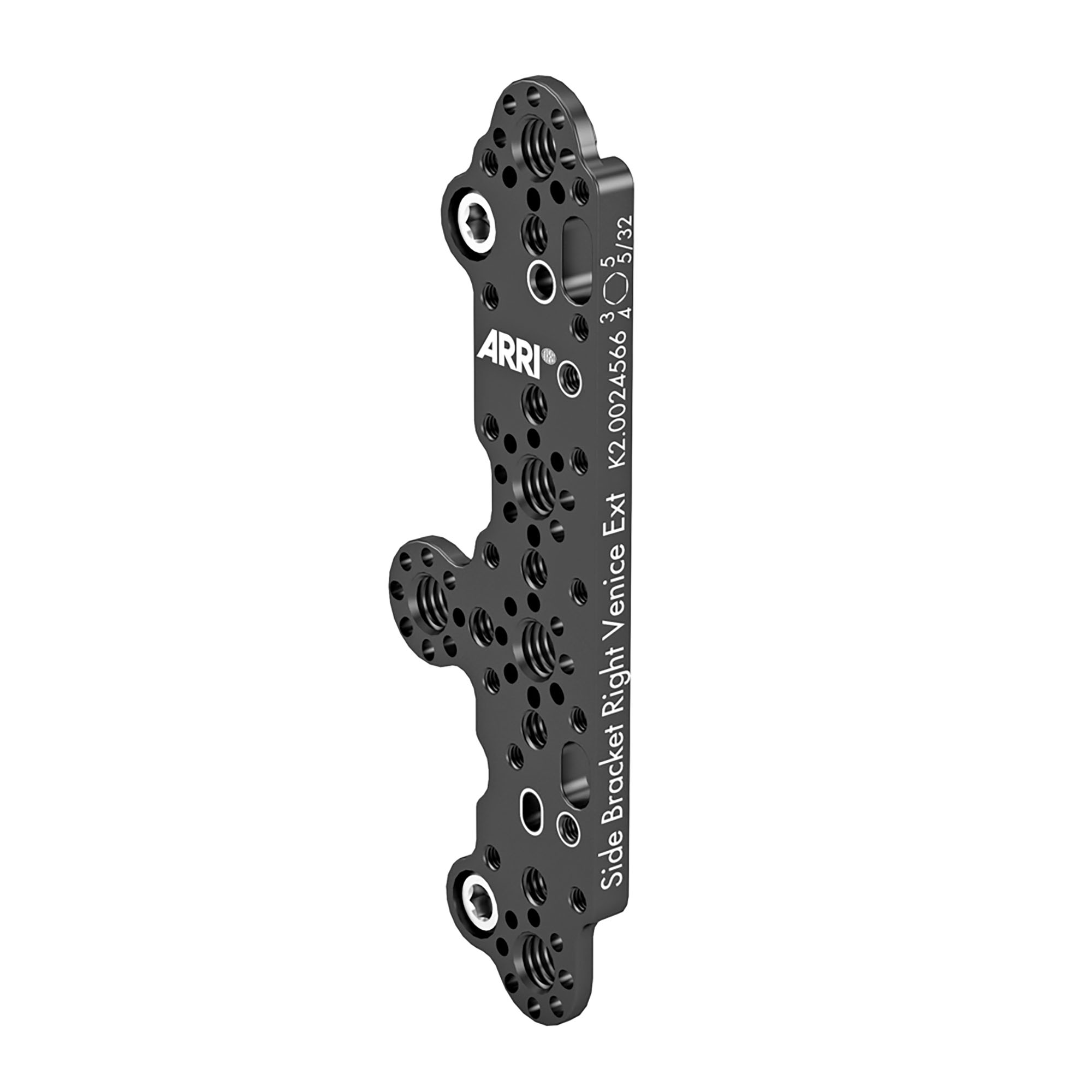

The Side Bracket Right offers plenty of interfaces (1/4-20 3/8-16 with anti-twist pin holes RMB-3 RA-6, Wooden Handgrip WHG-1, Cable Clamp and for the base plate to be used for vertical shooting).Compatible with Extension Unit (Rialto) 1 and 2.

The Side Bracket Right offers plenty of interfaces (1/4-20 3/8-16 with anti-twist pin holes RMB-3 RA-6, Wooden Handgrip WHG-1 and for the base plate to be used for vertical shooting).Compatible with Extension Unit (Rialto) 1 and 2.

19mm rod attachment bracket in horizontal to be used with NATO rails. For 15mm rods a reduction insert (K2.66255.0) is available.

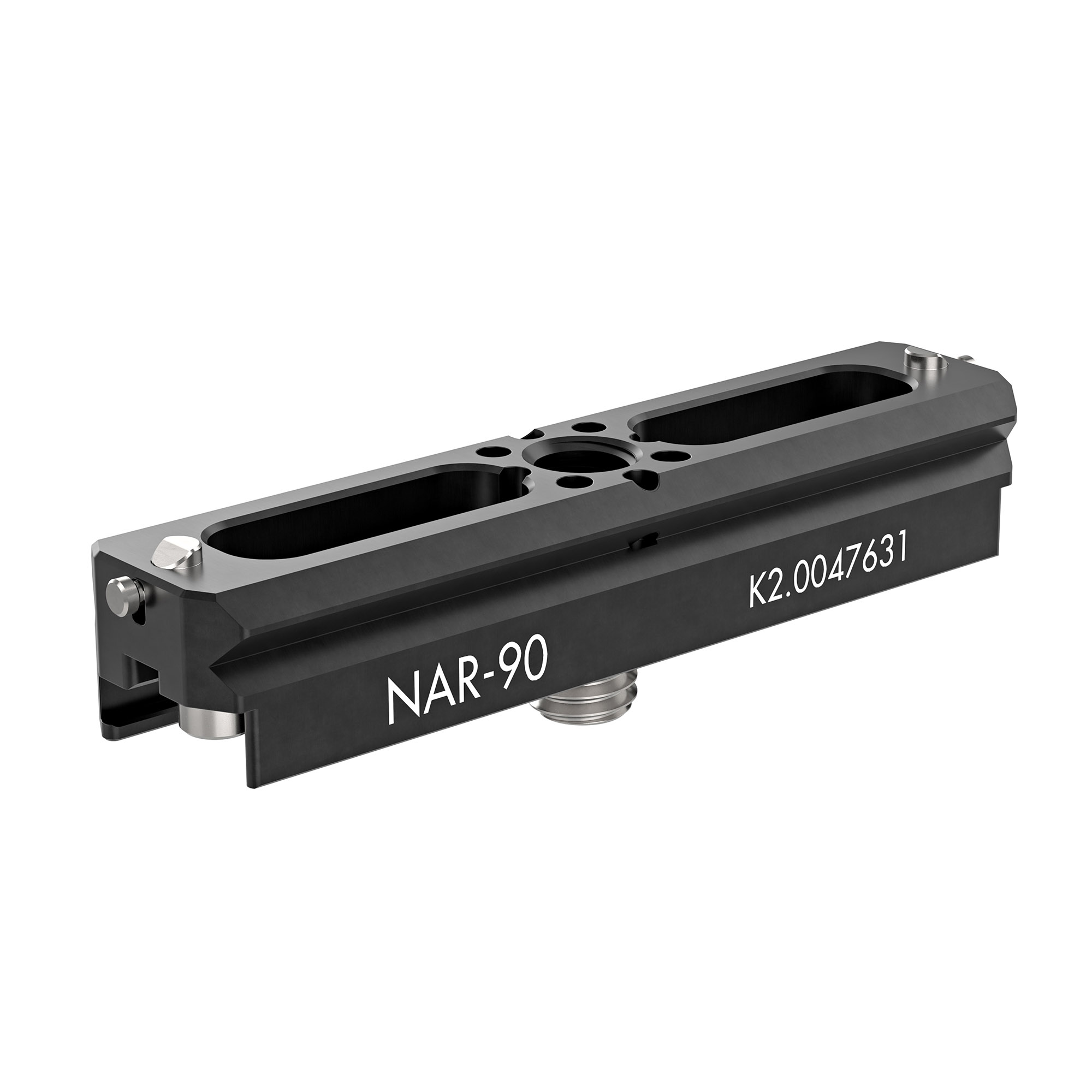

NATO Rail with 90mm length including a sliding 3/8in ARRI pin-lock/multi-hex screw which can be used with 4 different tools.Other sliders (1/4in + M4) are available and interchangeable.

A cube with 5 sides of 3/8in ARRI pin-lock attachment interfaces to be mounted on NATO rails.

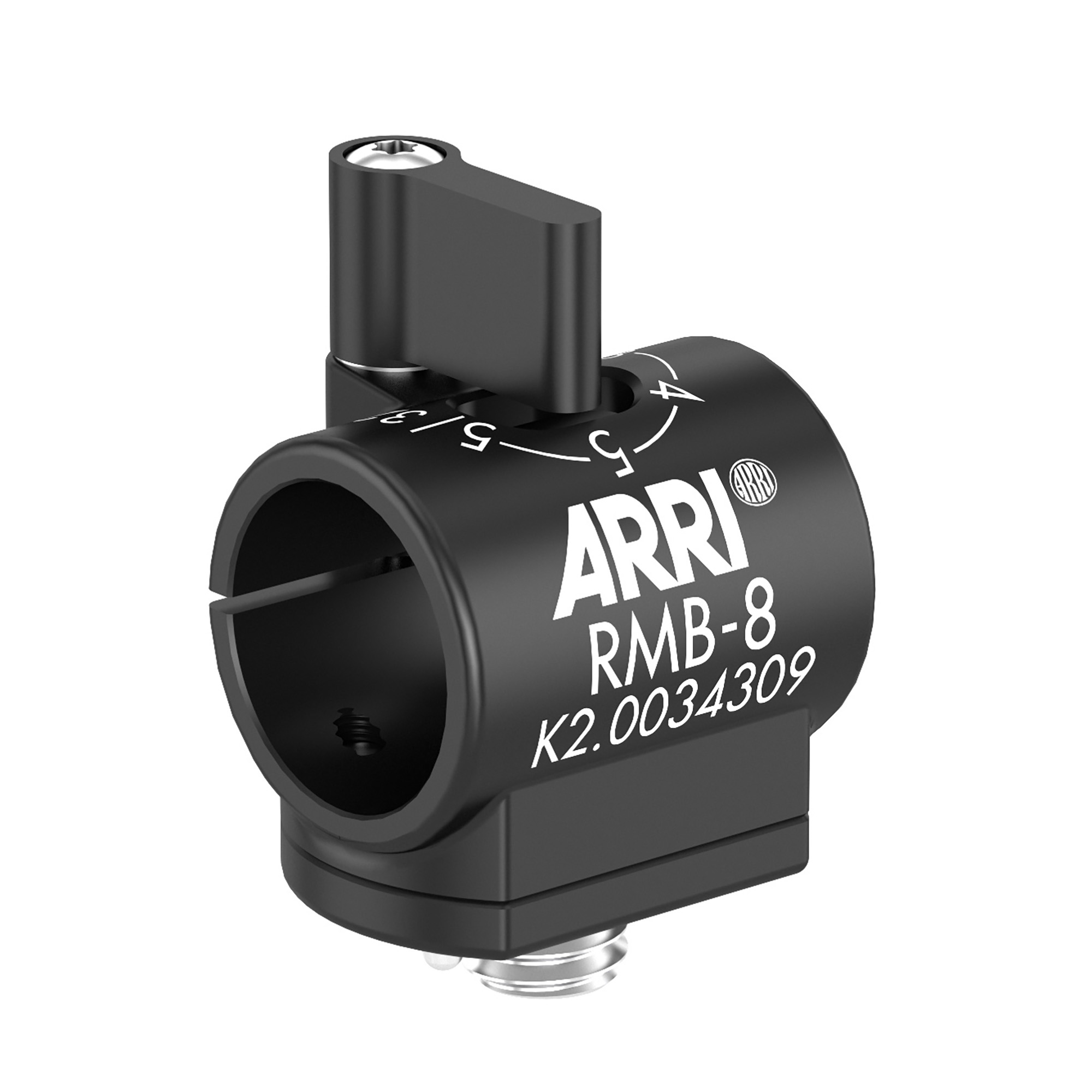

The Rod Mounting Bracket RMB-8 is a compact designed 19mm rod mount with 3/8-16 two pin interface (15mm rod via existing reduction insert K2.66255.0). The RMB-8 is equipped with a captive ARRI Multi HEX screw that allows the use of 3,4, 5, and 5/32 HEX keys.

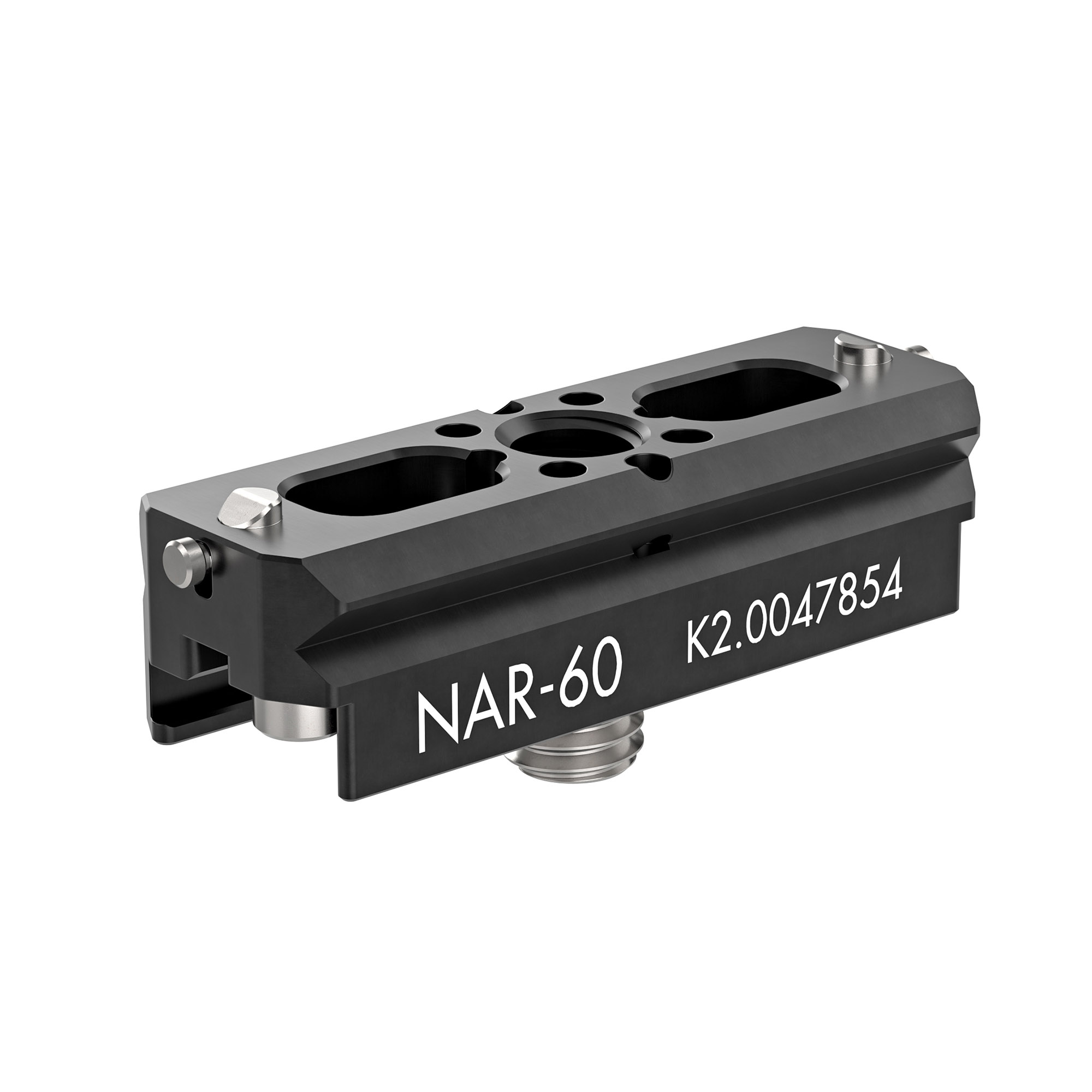

NATO Rail with 60mm length including a sliding 3/8in ARRI pin-lock/multi-hex screw which can be used with 4 different tools.Other sliders (1/4in + M4) are available and interchangeable.

The ARS-2 shares the same rail interface as the SMB and the LMB Accessory Adapter. Two ball-pressure pieces on each side of the rail prevent an attached Accessory Rail Bracket ARB-1 or the ARC-1 from slipping off. It is compatible with all 3/8-16” interfaces which offer holes for the two securing pins. A slotted hole extends the application area and allows it to move the rail into the desired position. Uniquely, four different sizes of hex key can be used with the Accessory Rail Small-2 without having to adjust it - 3, 4, 5 and 5/32 will all fit perfectly.

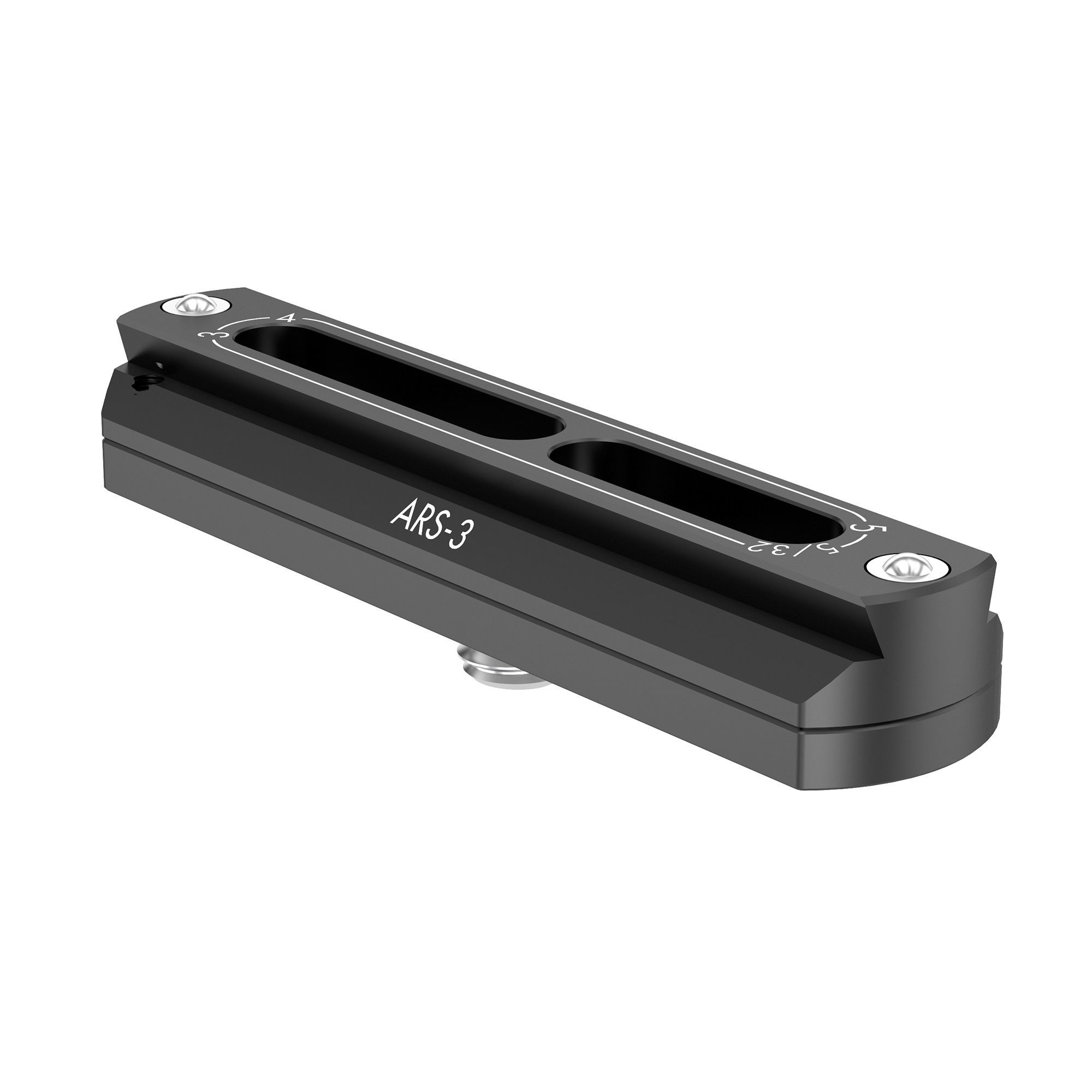

The ARS-3 shares the same rail interface as the SMB and the LMB Accessory Adapter. Two ball-pressure pieces on each side of the rail prevent an attached Accessory Rail Bracket ARB-1 or the ARC-1 from slipping off. It is compatible with all 3/8-16” interfaces which offer holes for the two securing pins. A slotted hole extends the application area and allow it to move the rail into the desired position. Uniquely, four different sizes of hex key can be used with the Accessory Rail Small-3 without having to adjust it - 3,4, 5 and 5/32 will all fit perfectly.

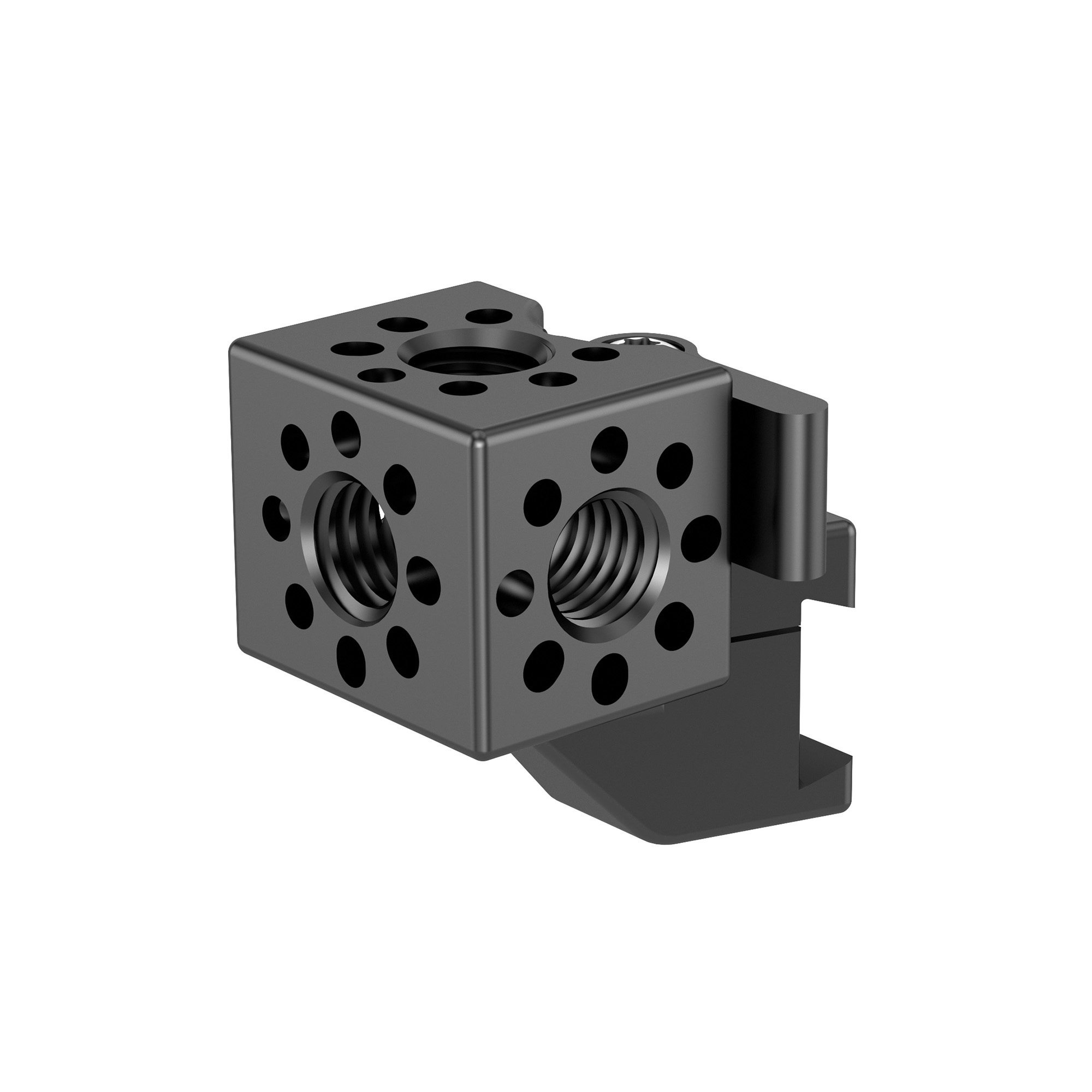

The Accessory Rail Cube ARC-1 can be used on the SMB and LMB Accessory Adapter as well as on the Accessory Rails ARC-1, ARC-2 and ARC-3. It can be locked off by turning the lever 90°. Accessories - such as an articulating arm or a Cinetape - can be mounted on four integrated 3/8-16” interface, which offers aight different holes for securing pins.

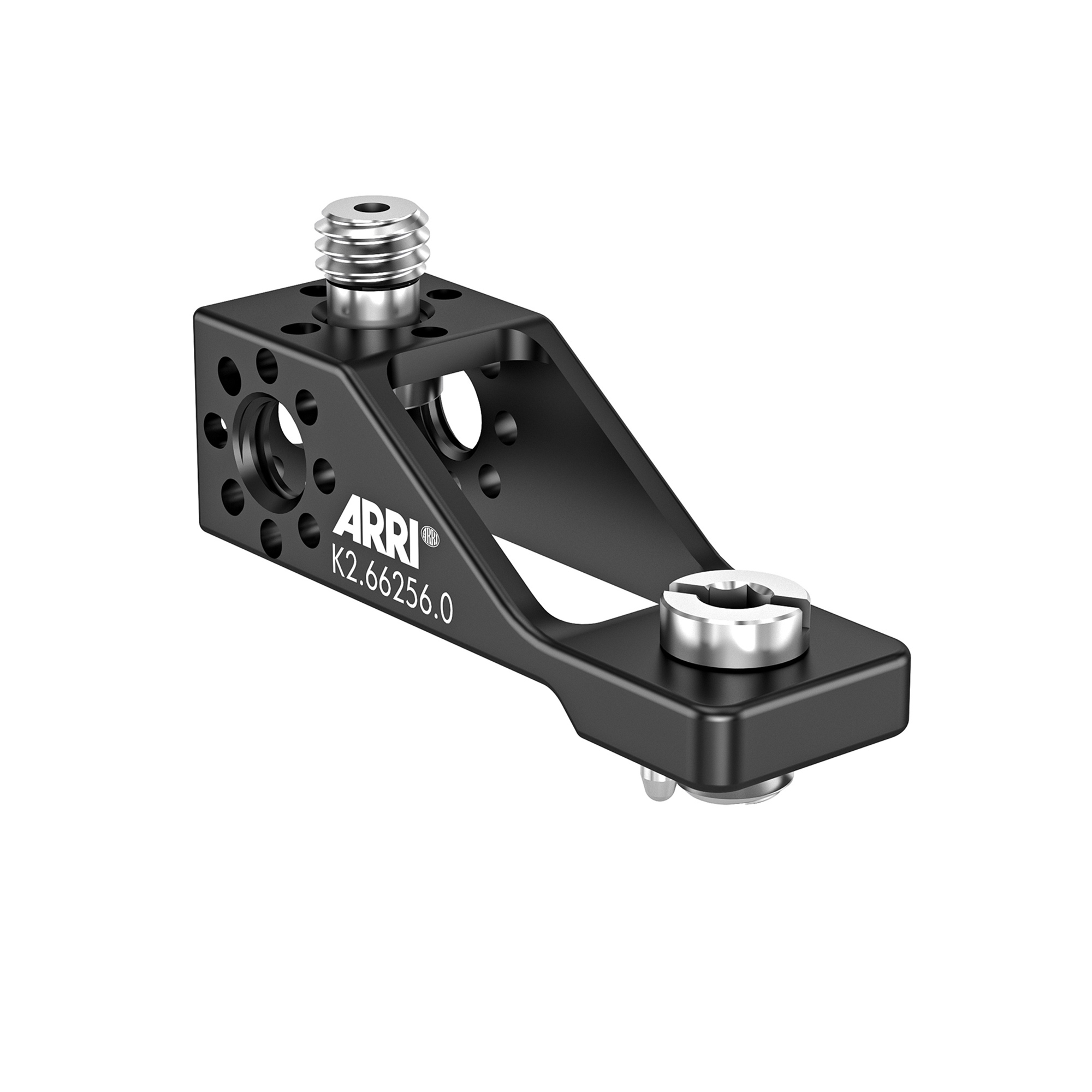

The Microphone Holder Bracket provides offset support for any standard microphone bracket fitted with a 3/8-16 thread. The Microphone Bracket Holder can be attached to any ARRI 3/8 inch accessory interface, such as handles, cage arms and top plates.

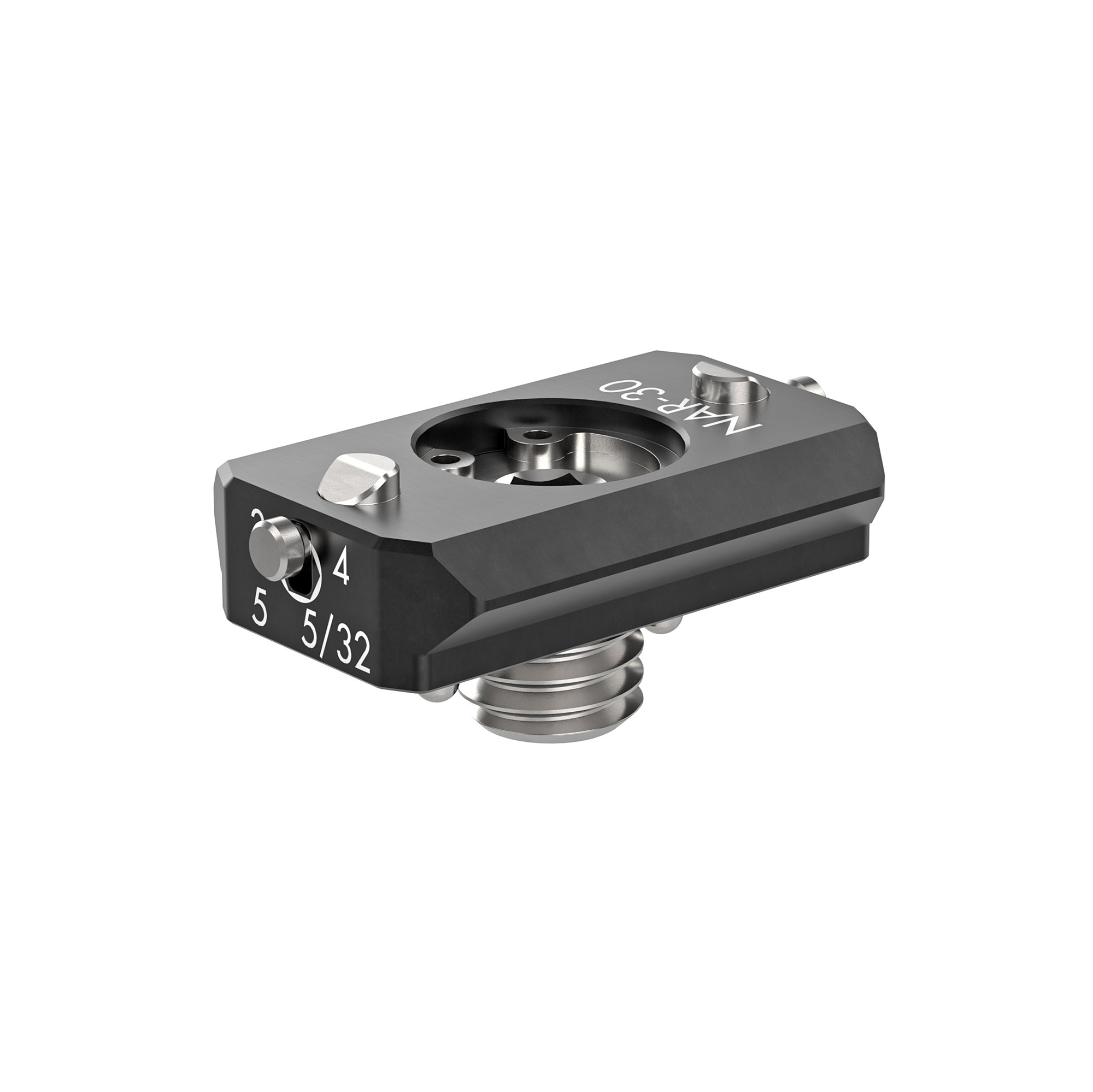

NATO Rail with 30mm length including a 3/8in ARRI pin-lock/multi-hex screw which can be used with 4 different tools.

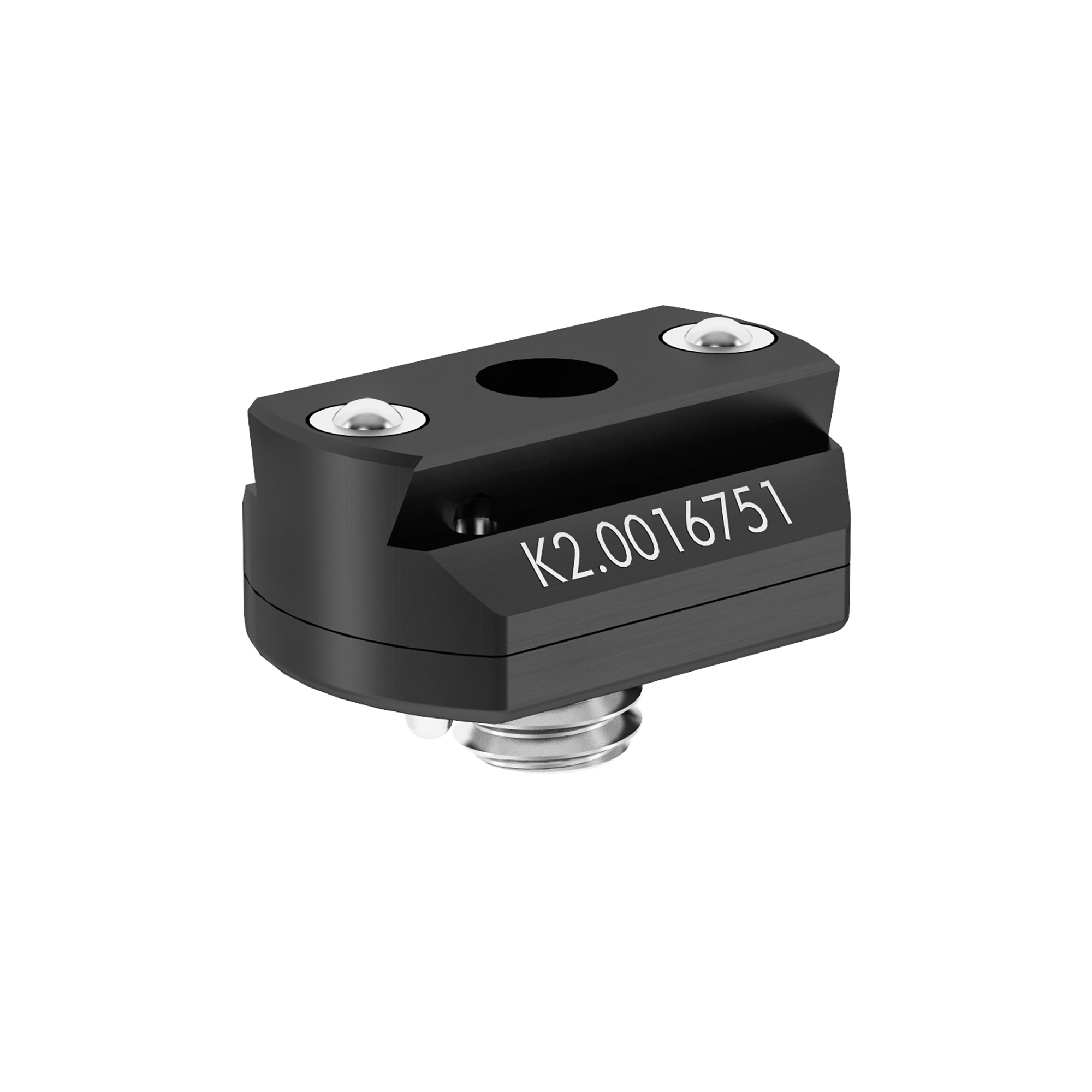

The ARS-1 shares the same rail interface as the SMB and the LMB Accessory Adapter. Two ball-pressure pieces on each side of the rail prevent an attached Accessory Rail Bracket ARB-1 from slipping off. It is compatible with all 3/8-16 interfaces which offer holes for the two securing pins. Uniquely, four different sizes of hex key can be used with the Accessory Rail Small without having to adjust it - 3,4, 5 and 5/32 will all fit perfectly. Length: 30mm/1.18”
