PCA: Mechanical Accessories - Support Systems - Adapters

26mm dovetail insert. Both sides attach to 3/8-16 UNC thread mounting points having standard ARRI 15,5mm counterbore for attaching and quickly removing accessories from a camera (compatible with all UMC versions).includes:K2.52082.0 1x Dovetail Insert 3/8in threadK2.52083.0 1x Dovetail Shoe 3/8in thread

includes:K2.0048099 1x Rod Clamp for REX-40K2.0049430 1x Rosette Extension REX-40K2.66255.0 1x 15mm Reduction InsertNote: RS cables not included!

Converts a 3/8-16 anti twist pin interface into an ARRI standard rosette.

Converts a 3/8-16 anti twist pin interface into an ARRI standard rosette.

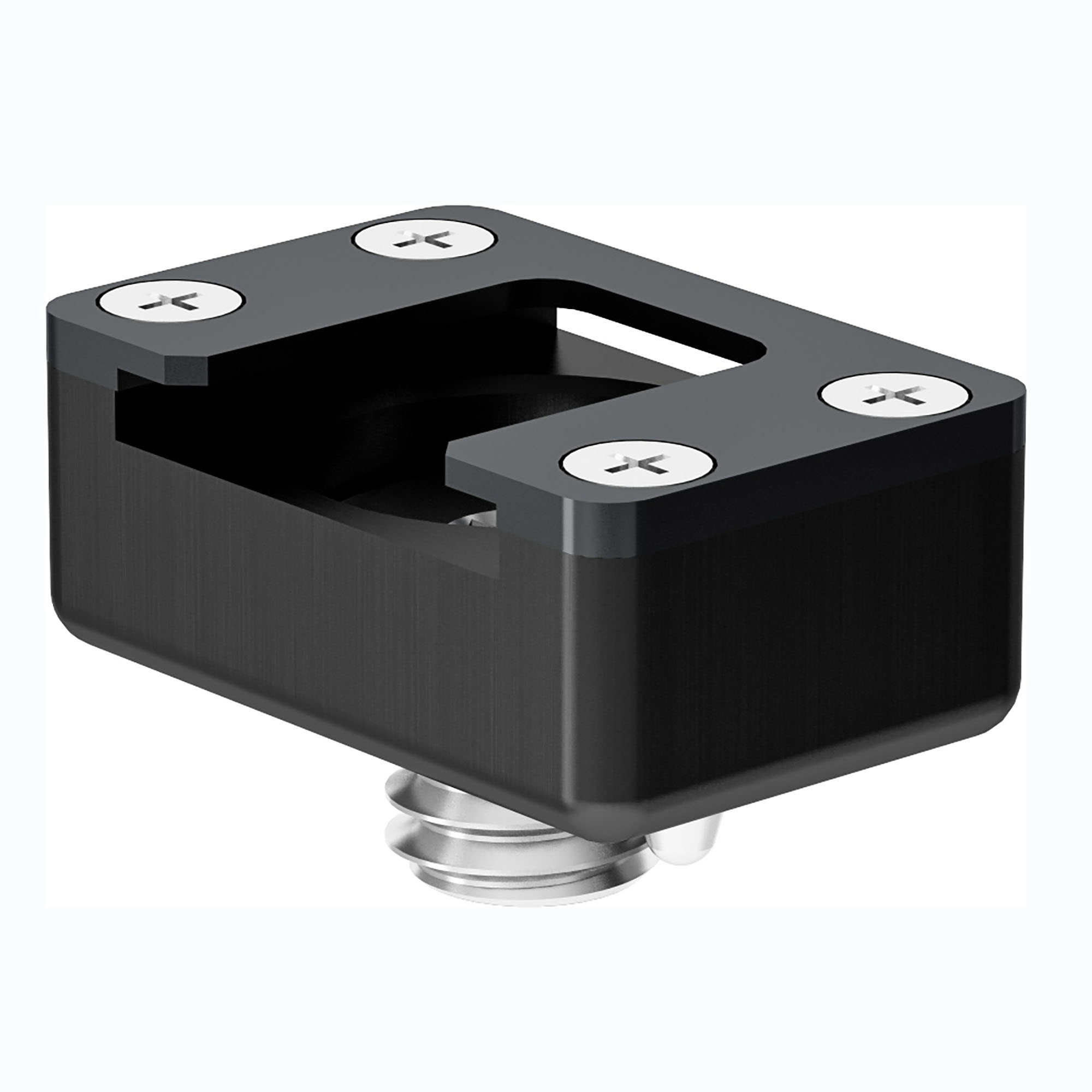

Attaches via 3/8 inch UNC thread with two locating pins for stability. For use with ARRI 18,65mm shoe-mounted accessories.

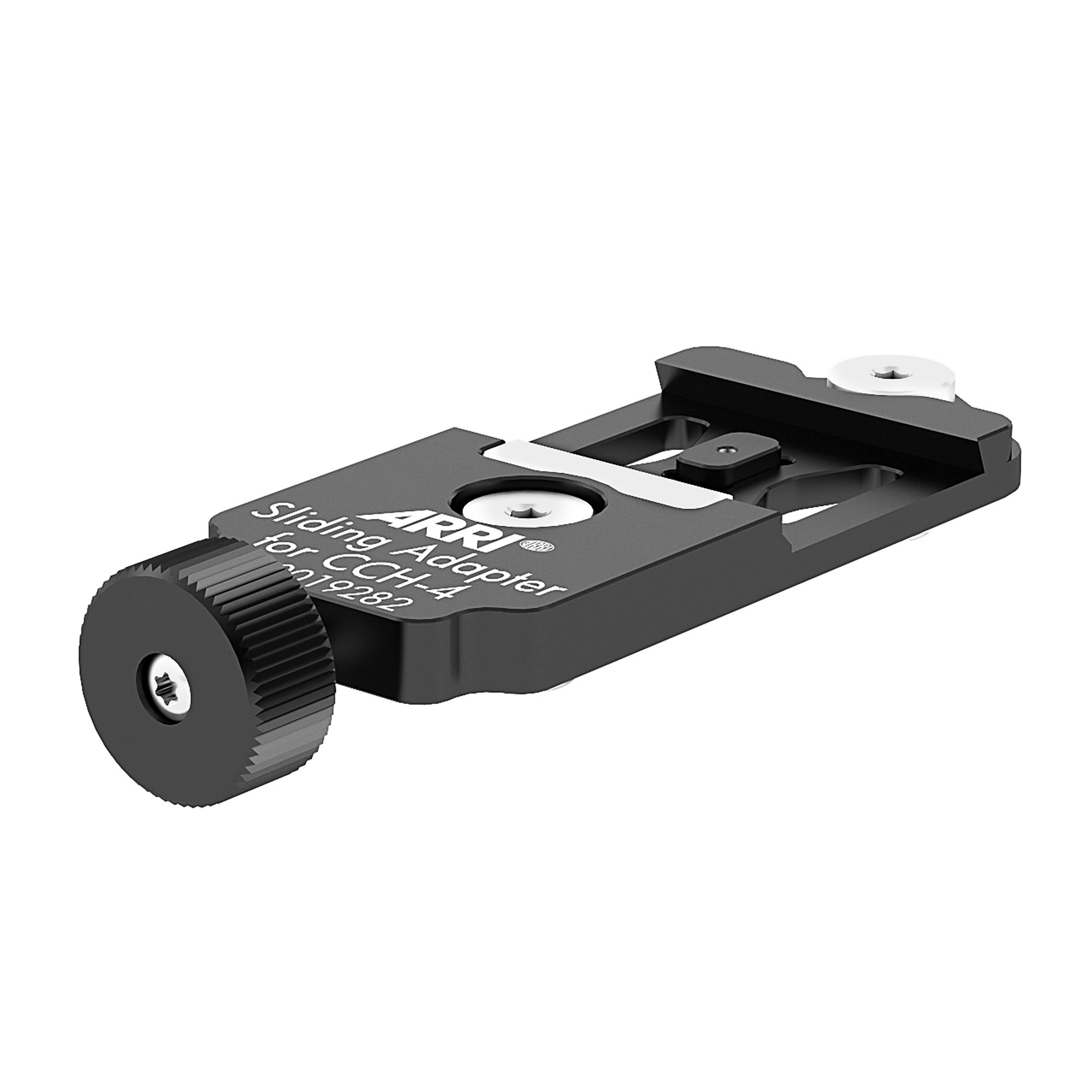

The sliding adapter enables the CCH-4 to slide back and forth for finding the perfect balancing point on the camera. It can be mounted in different positions on following ARRI top plates: Canon C200/ C500MKII/ C700, Panasonic EVA-1, VariCam, Sony F5/ F55/ FS7II/ FX9.

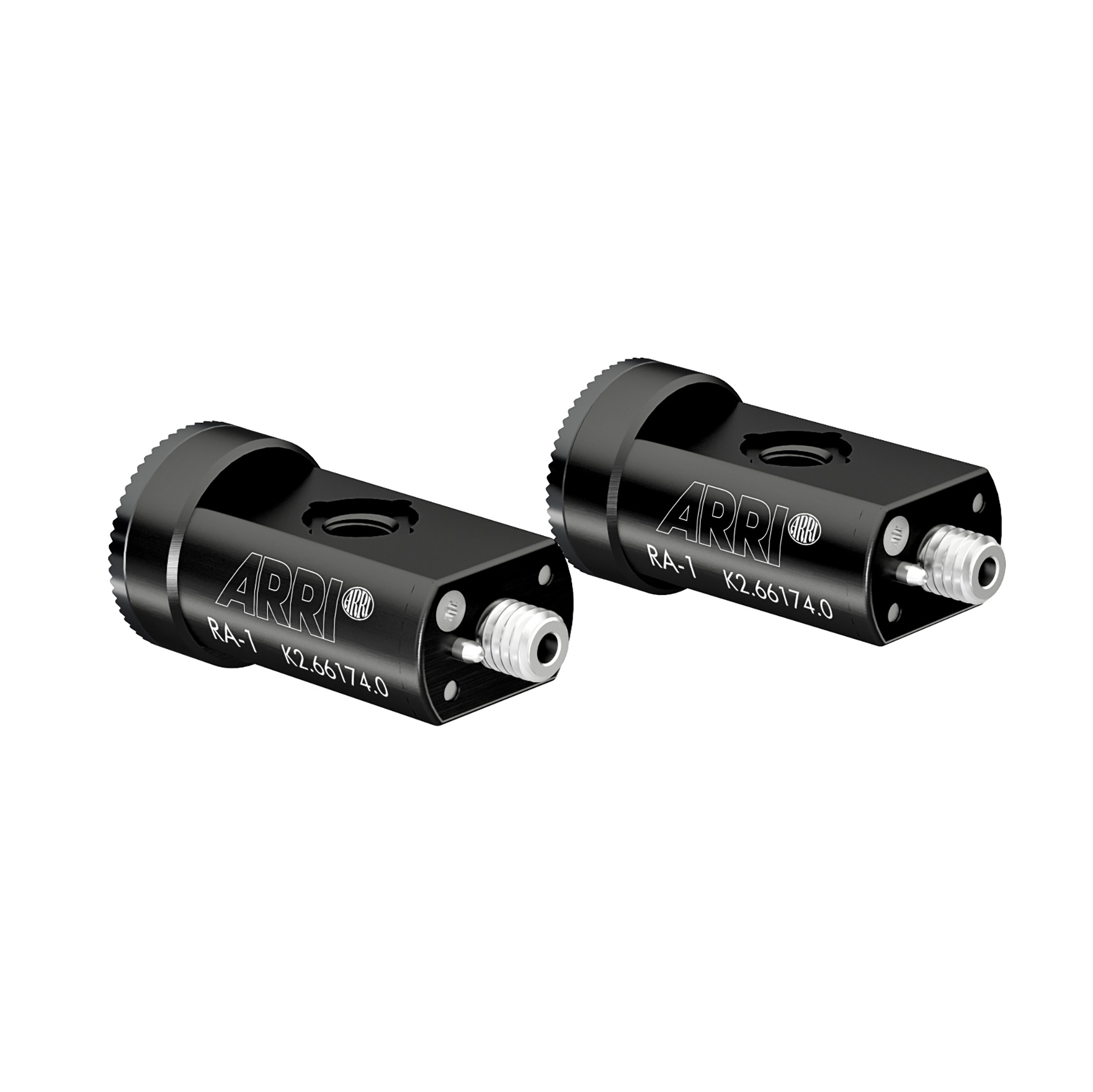

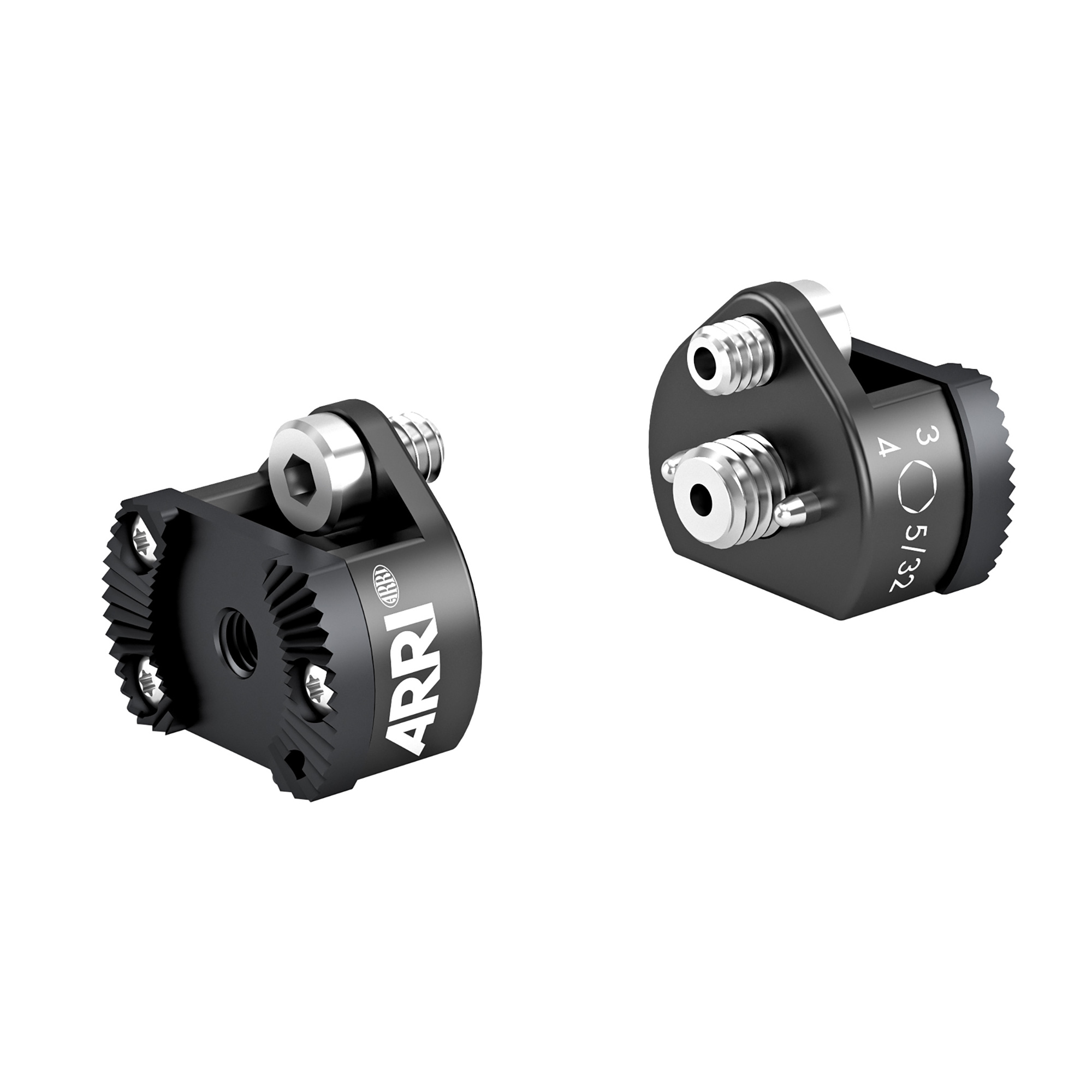

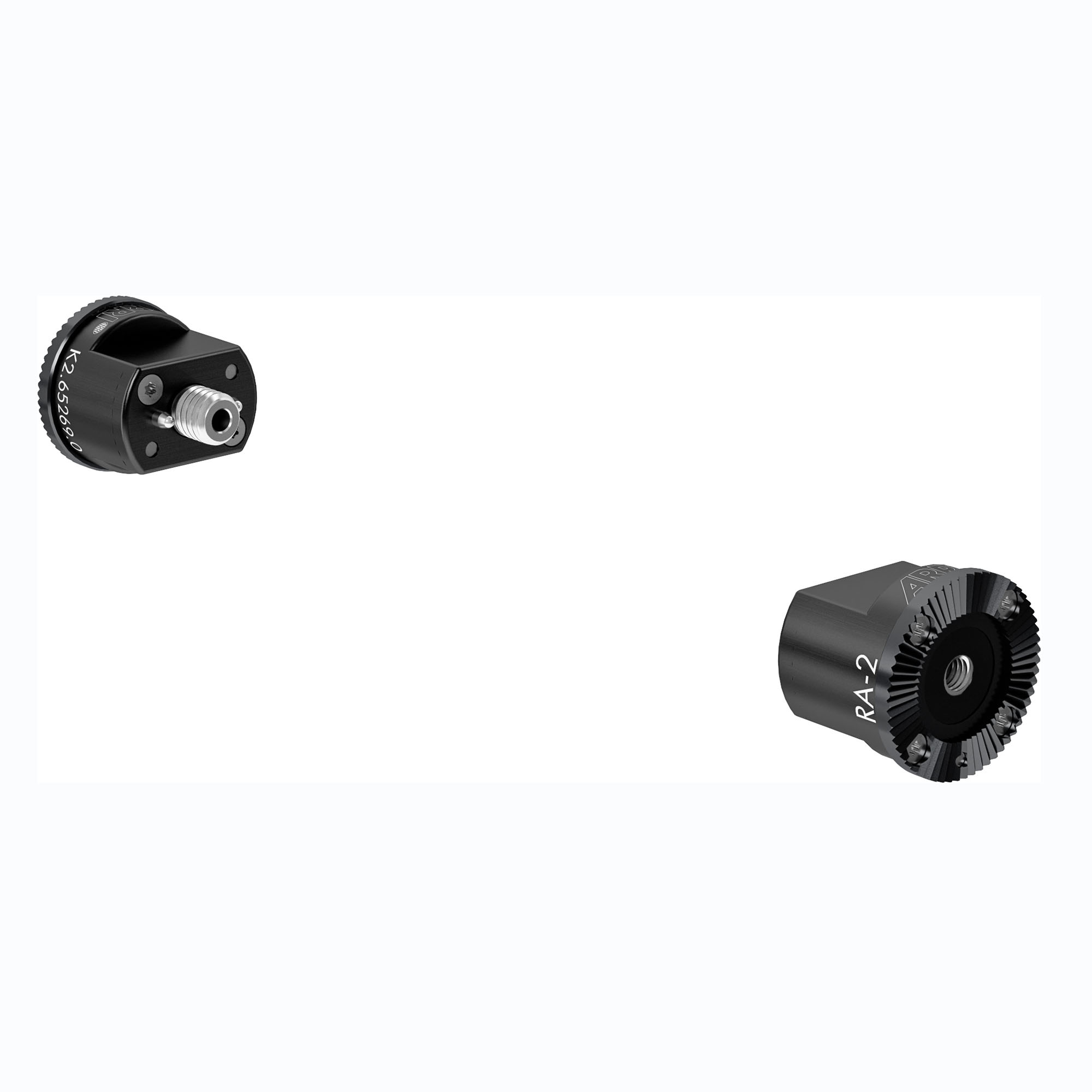

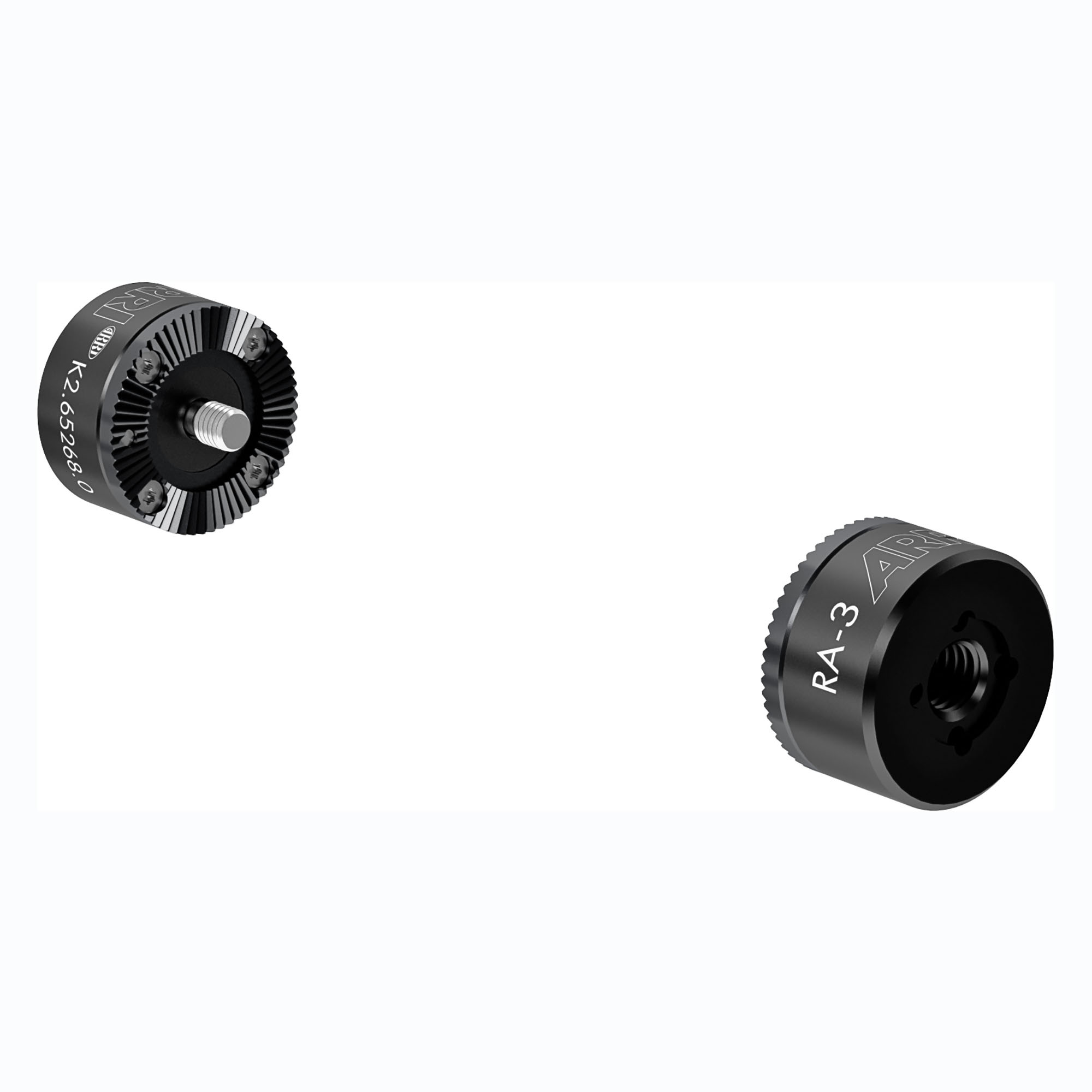

The Rosette Adapters allow to attach rosettes on different positions. They are compatible with the following side brackets: Sony Venice Extension Unit, Sony FX9, Canon C500 MKII. They will be attached by two screws and are rock solid.

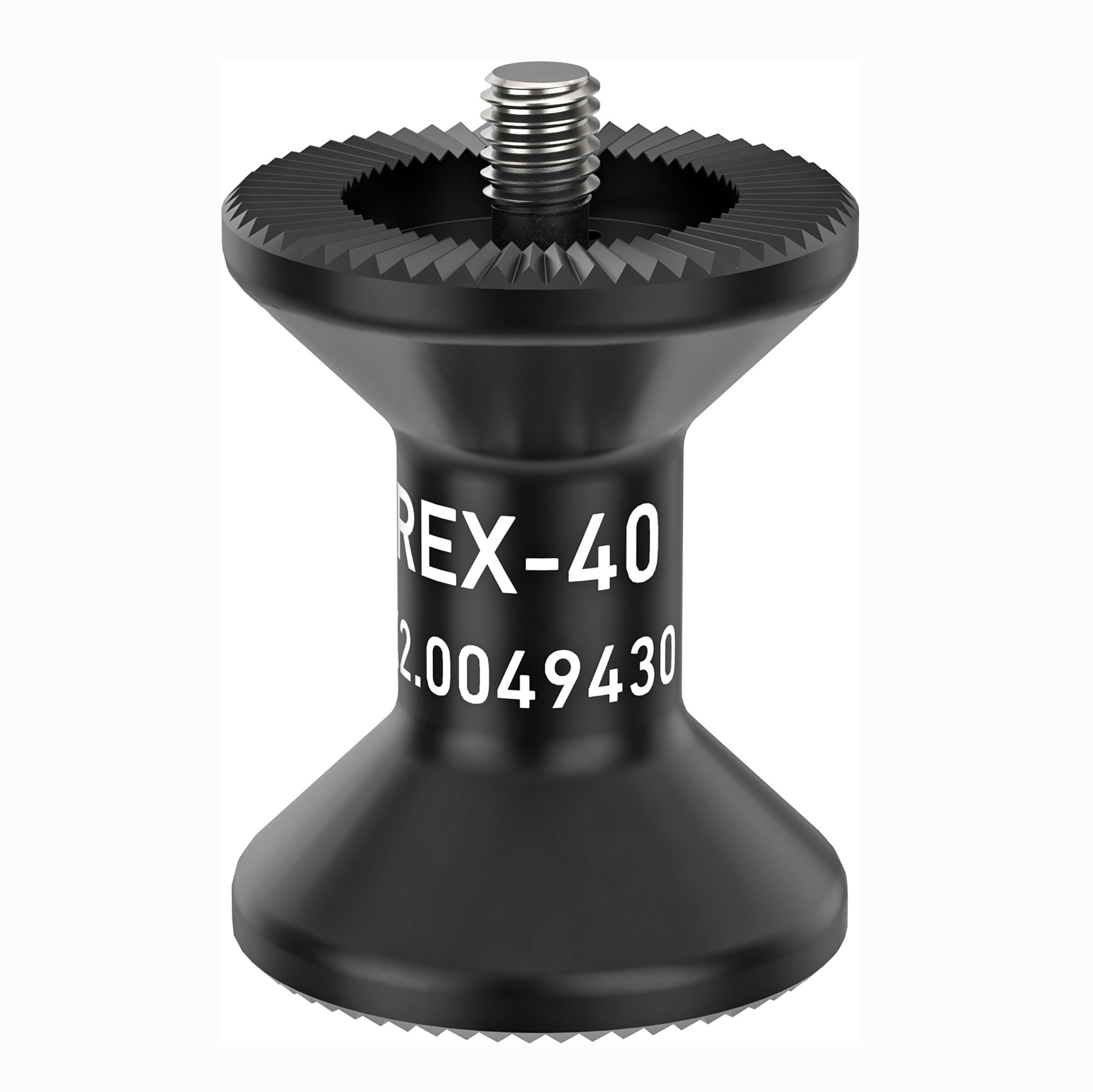

Offsets ARRI rosettes with a short aluminum rod that extends the handgrip 40mm / 1,57in further from the camera body, either to the left or right. ARRI Multi-Hex screw implemented.

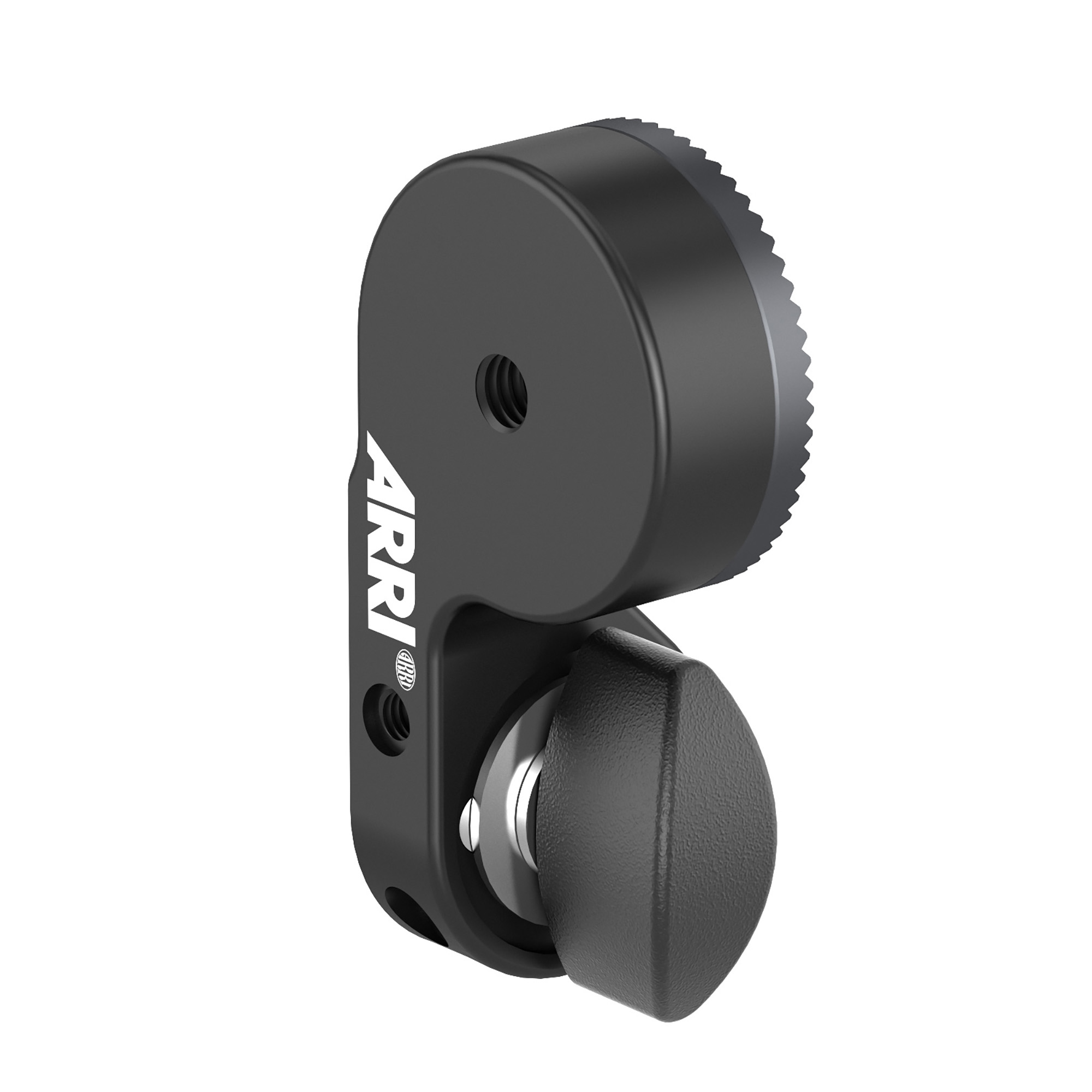

The Rosette Adapter RA-5 adapts a 3/8-16 anti twist interface to a 90° rotated rosette. Both pins can be unscrewed if necessary and stored in a parking position on the side of the bracket. The RA-5 can be mounted without tools by using the wing nut.

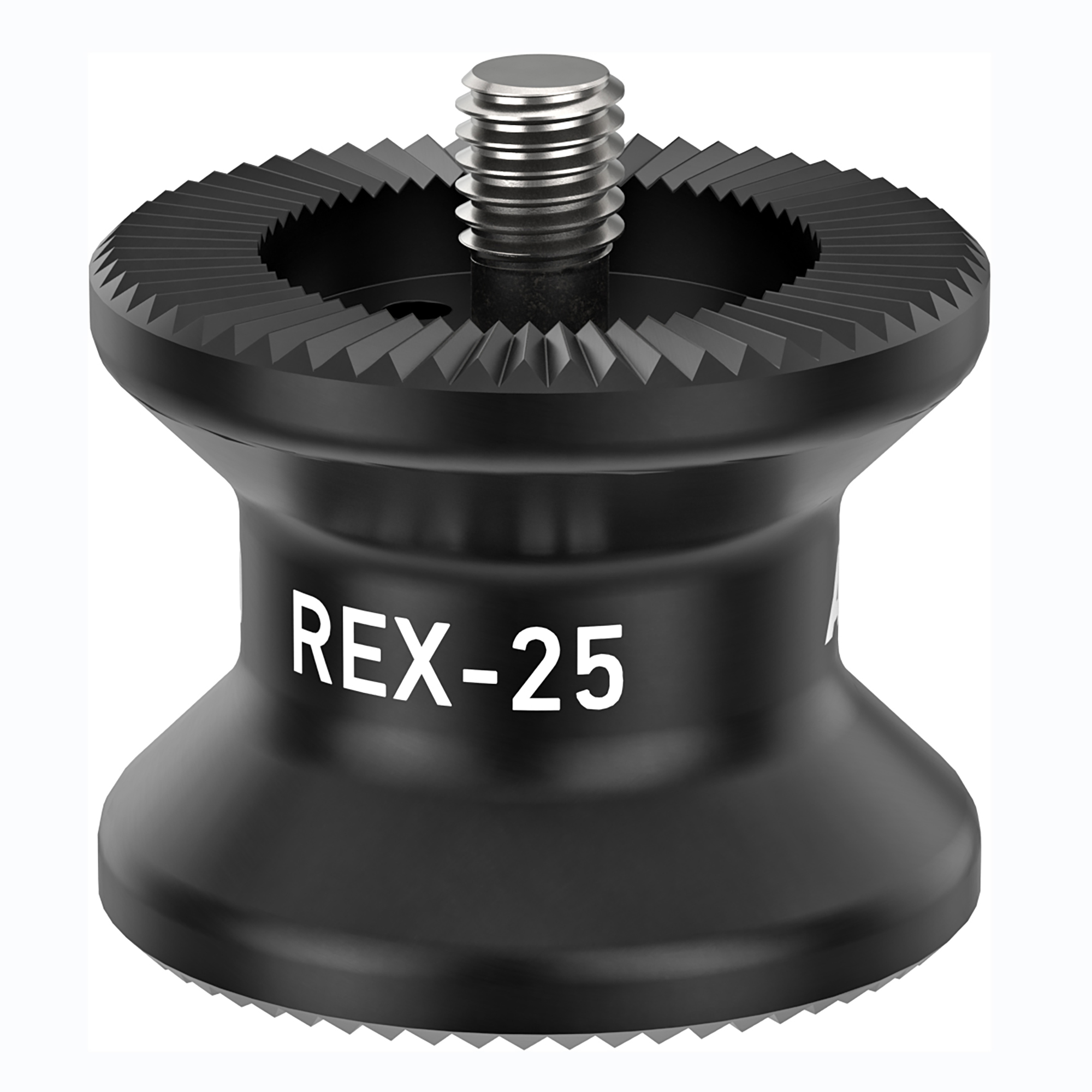

Offsets ARRI rosettes with a short aluminum rod that extends the handgrip 25mm / 0,98in further from the camera body, either to the left or right. ARRI Multi-Hex screw implemented.

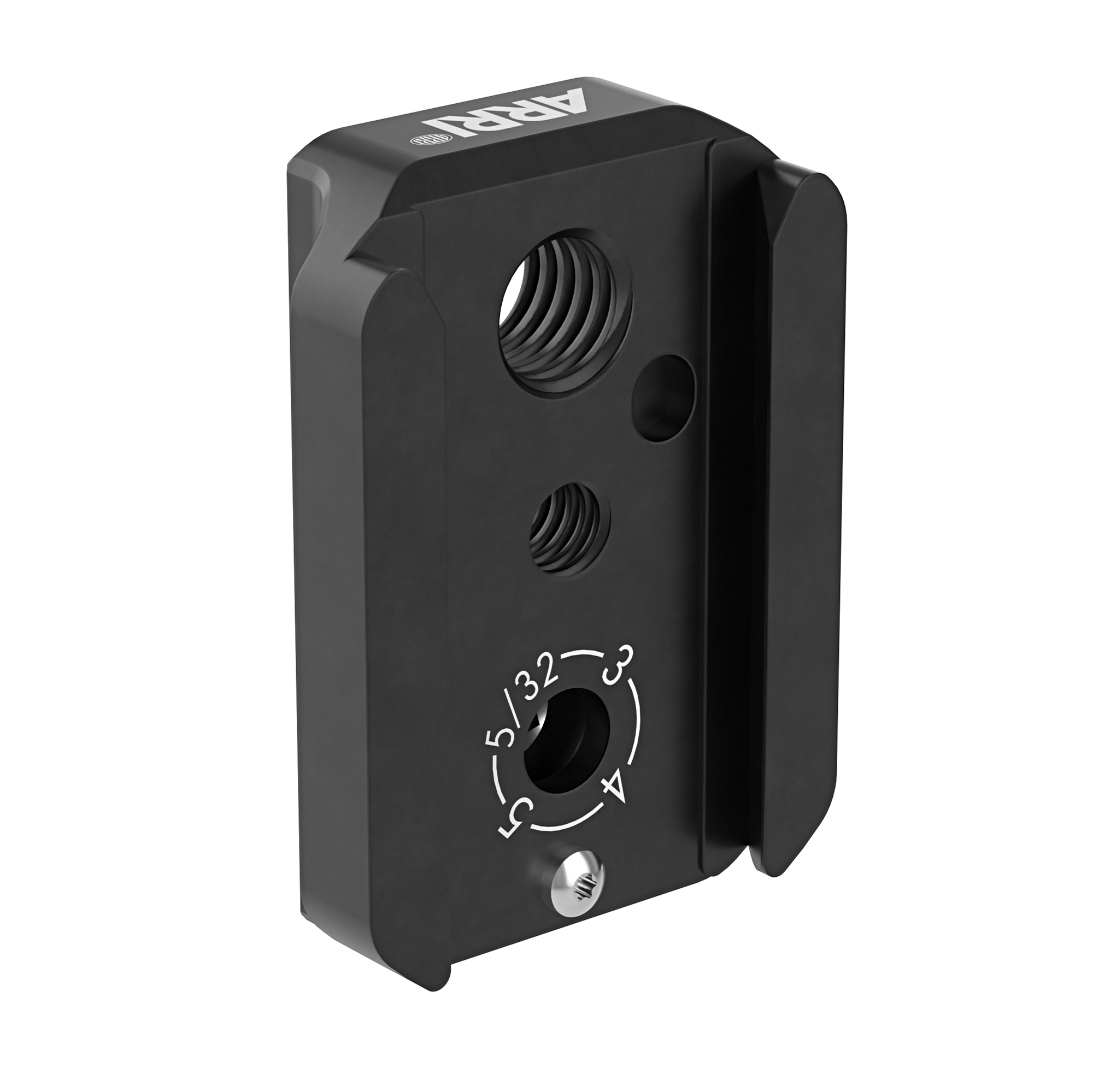

The ARRI Viewfinder Adapter VFA-3 is compatible with the Multi Viewfinder MVF-2 (K2.0020916) used with the ALEXA Mini LF and the ALEXA 35, as well as with the AMIRA Viewfinder MVF-1 (K2.75004.0). With its 3/8 screw in ARRI Multi-Hex design (HEX-3, -4, -5 and 5/23”) and the 3/8 2-pin and 1/4 threaded holes, it offers maximum mounting flexibility. The design of the VFA-3 has been optimized for weight reduction without compromising durability.
