Electronic Control System - Signal Converters

Filter products

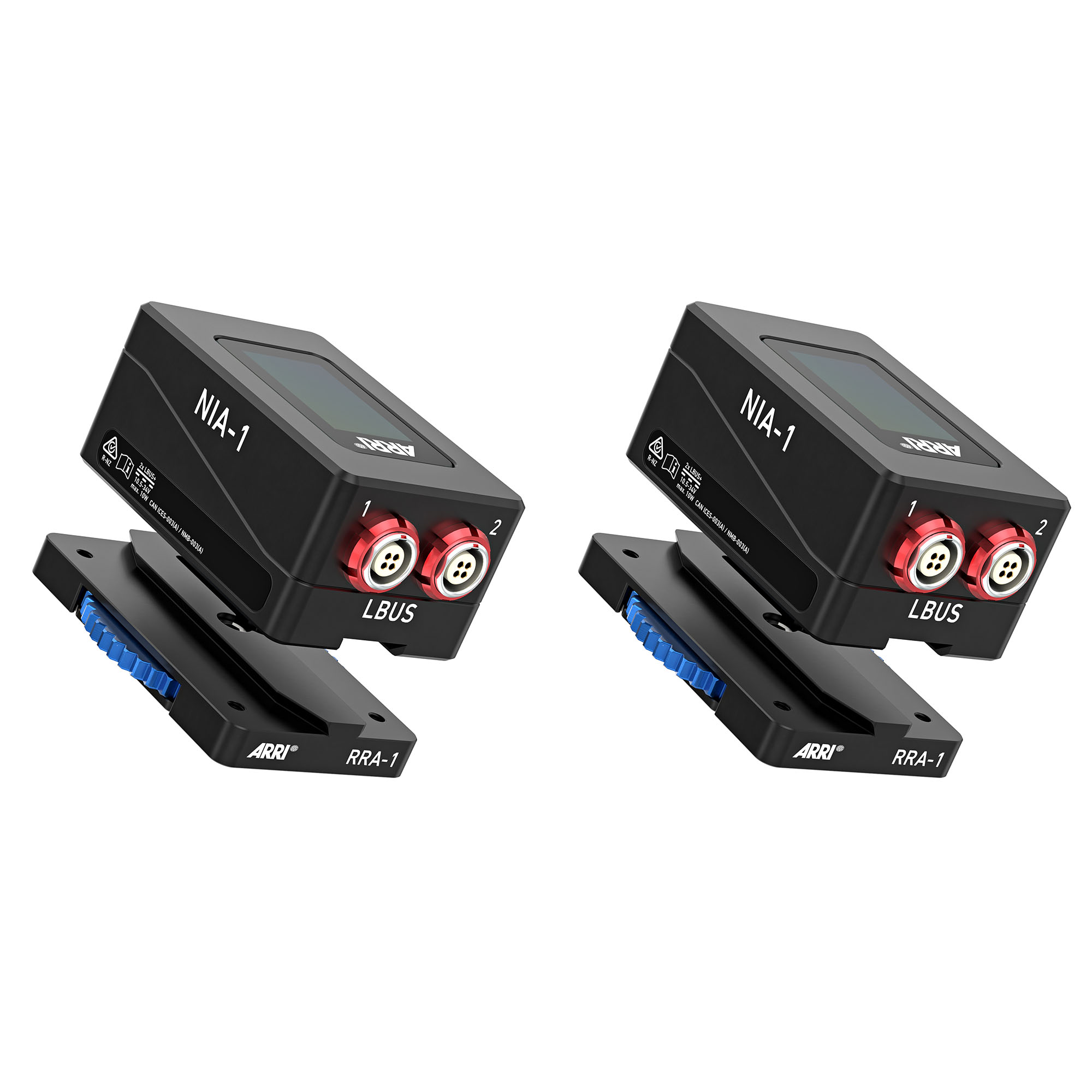

Network Interface Adapter NIA-1 Set (2x)
Network Interface Adapter NIA-1 Set (2x)
Set of two Network Interface Adapter NIA-1 and RRA-1 brackets.includes:K2.0052389 2x Network Interface Adapter NIA-1K2.0053976 2x Rotary Release Adapter RRA-1

2.950,00 €*
Details

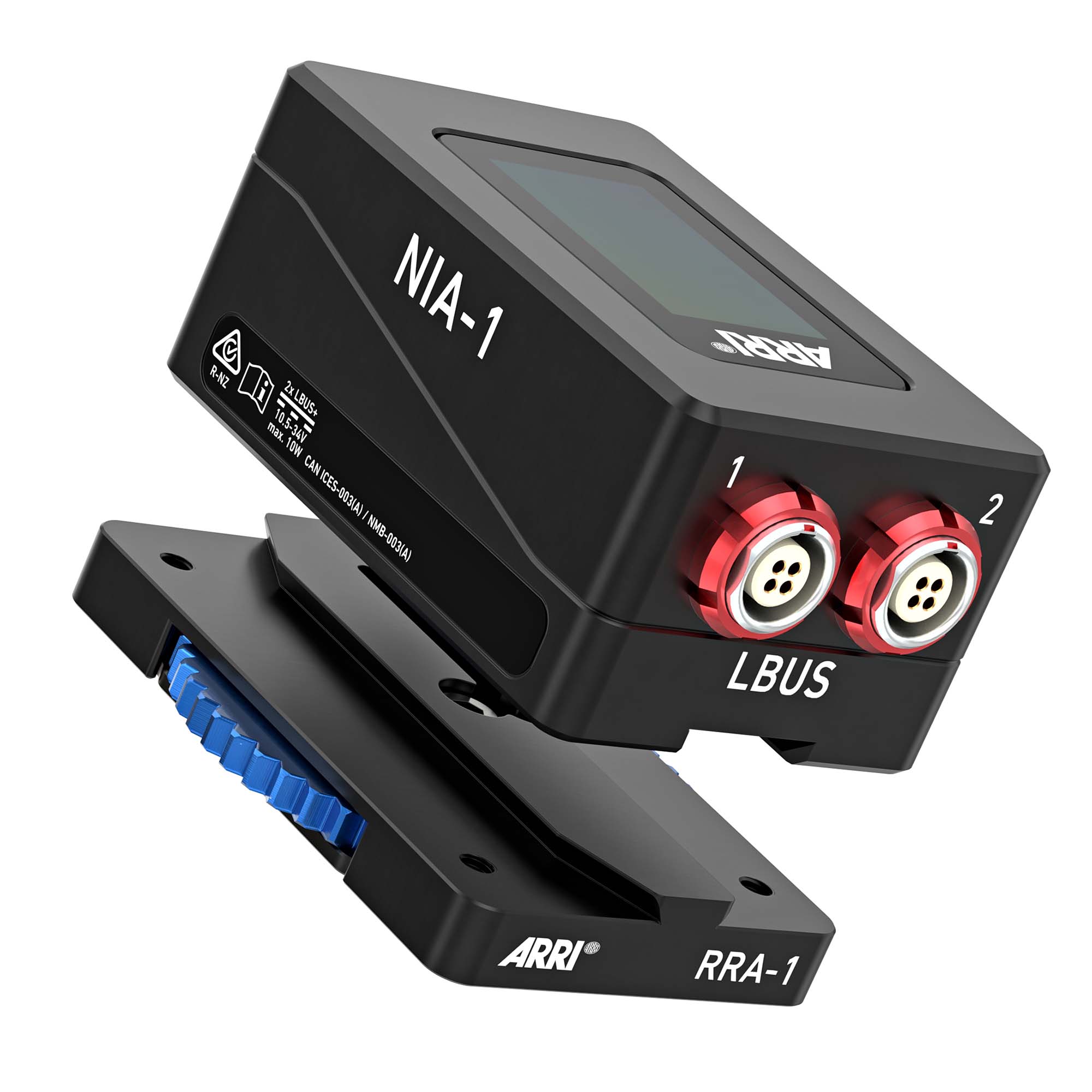

Network Interface Adapter NIA-1 Set
Network Interface Adapter NIA-1 Set
Set of Network Interface Adapter NIA-1 and RRA-1 bracket.The NIA-1 expands LBUS via Ethernet and enables IP workflows for cine and broadcast applications. It enables lens and camera control via IP networks, extended control of 3rd party cameras (Hi-5 license required), synchronized control of multiple lenses with one ECS control unit like Hi-5, long-range cable connection via Ethernet and much more. Setup and configuration are fast and easy, with the NIA-1 automatically managing complex network settings, although manual IP configuration is also an option when incorporating the NIA-1 into advanced networks.includes:K2.0052389 1x Network Interface Adapter NIA-1K2.0053976 1x Rotary Release Adapter RRA-1

1.480,00 €*
Details

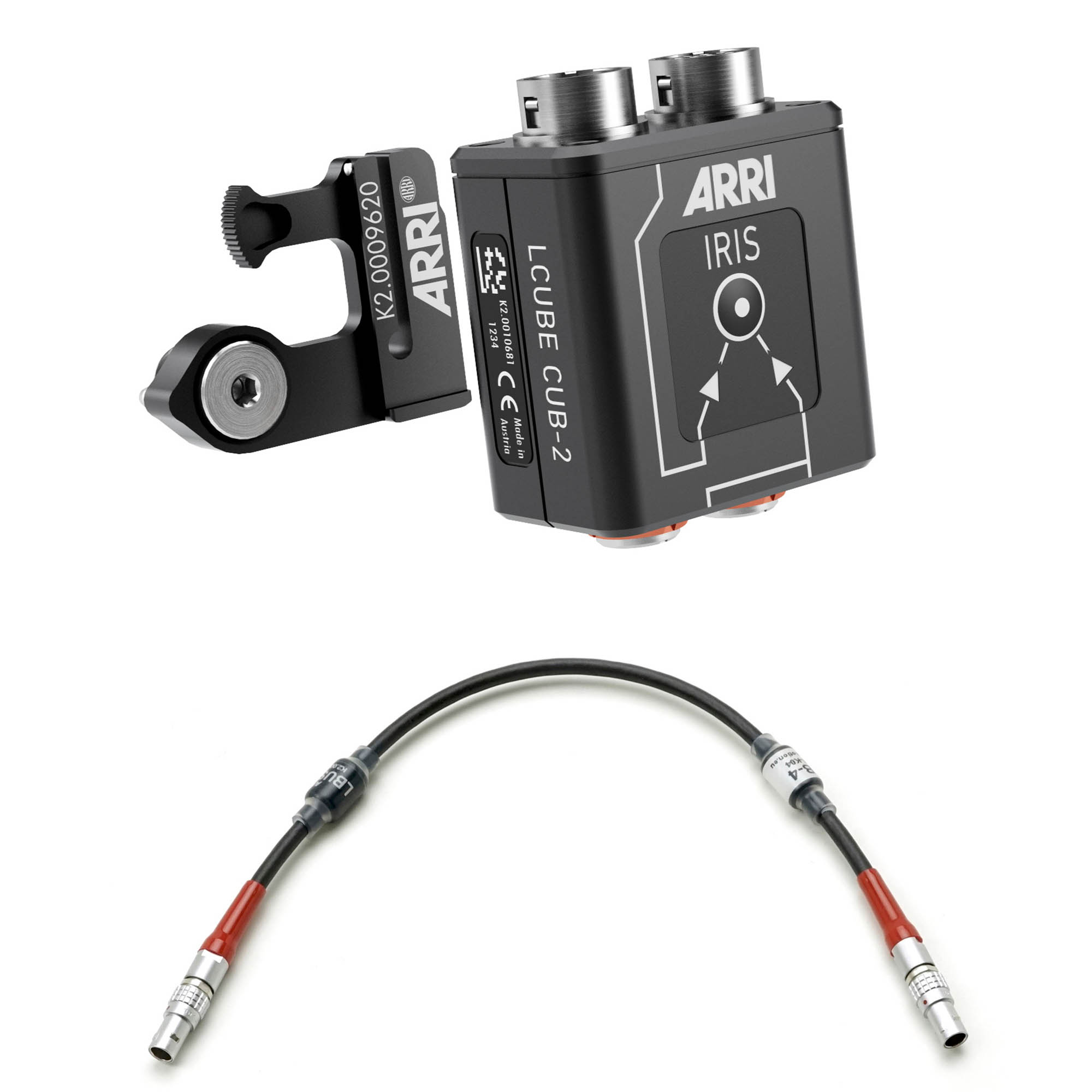

SRH LCUBE CUB-2 Set
SRH LCUBE CUB-2 Set
LCUBE CUB-2 set to use with the ARRI Stabilized Remote Head 360 EVO, SRH-3 and SRH-360. Adapts servo-zoom lenses (Hirose 12 pin) to LCUBE (Lemo 4 pin). Enables the Focus / Zoom Set for Remote Control Panel (K0.0019595) to control focus, iris and zoom of a servo-zoom lens. Provides a switch to select between iris control from camera (auto-iris cia camera Hirose 12 pin interface) or the Focus / Zoom Set for Remote Control Panel (via LBUS).The LCUBE has an integrated dovetail for mounting the LCUBE Bracket (K2.0009620) or the CLM-5/cforce mini Clamp Console 19/15mm (K2.0006176)Includes:K2.0010681 1x LCUBE CUB-2K2.0009620 1x LCUBE BracketK2.0022328 1x Cable LENS/ENG (12p) - Hi (12p) analogK2.0006751 1x Cable LBUS - LBUS (0.5m/1.5ft)For 360 EVO and SRH-3 and SRH-360

1.450,00 €*
Details

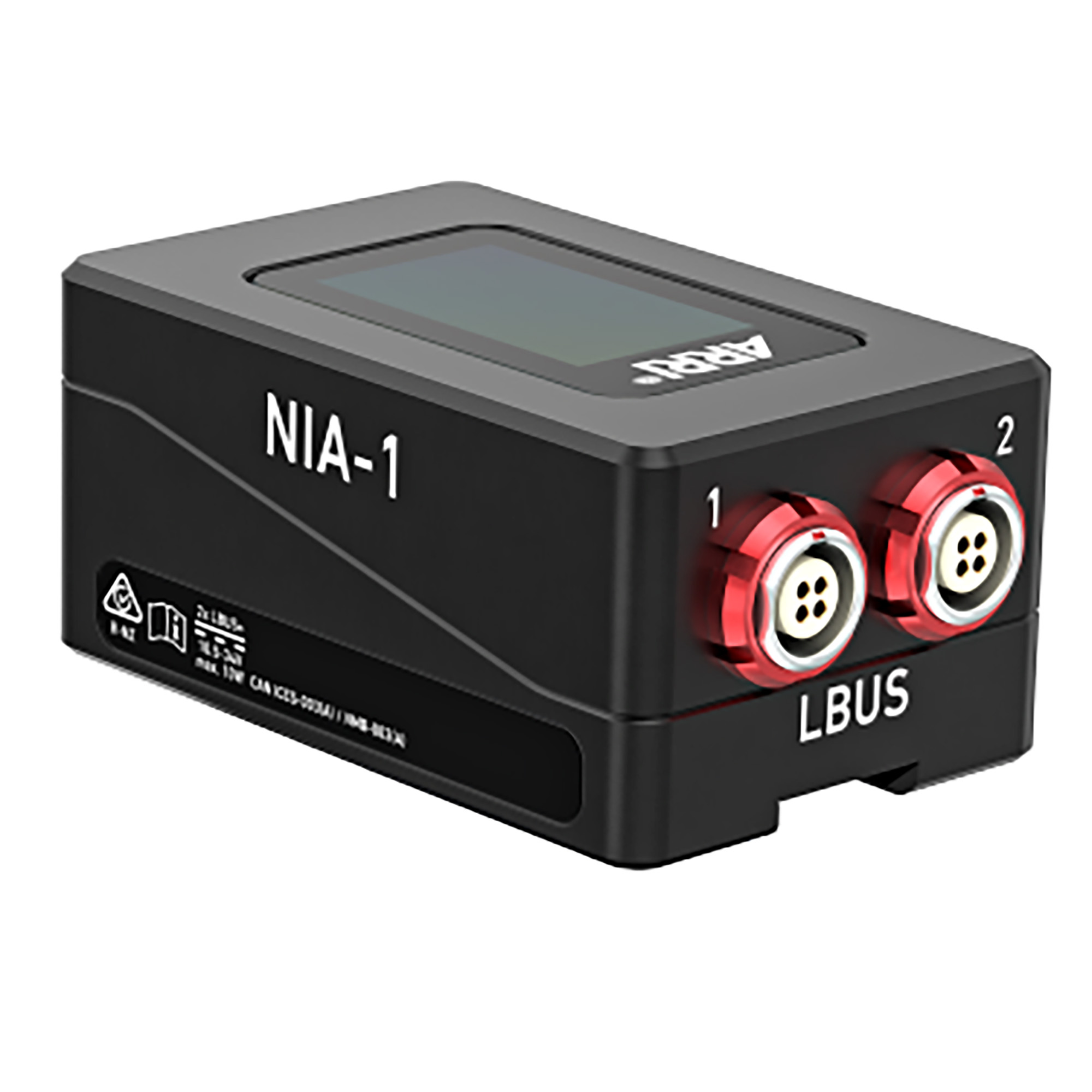

Network Interface Adapter NIA-1
Network Interface Adapter NIA-1
The NIA-1 expands LBUS via Ethernet and enables IP workflows for cine and broadcast applications. It enables lens and camera control via IP networks, extended control of 3rd party cameras (Hi-5 license required), synchronized control of multiple lenses with one ECS control unit like Hi-5, long-range cable connection via Ethernet and much more. Setup and configuration are fast and easy, with the NIA-1 automatically managing complex network settings, although manual IP configuration is also an option when incorporating the NIA-1 into advanced networks.

1.290,00 €*
Details

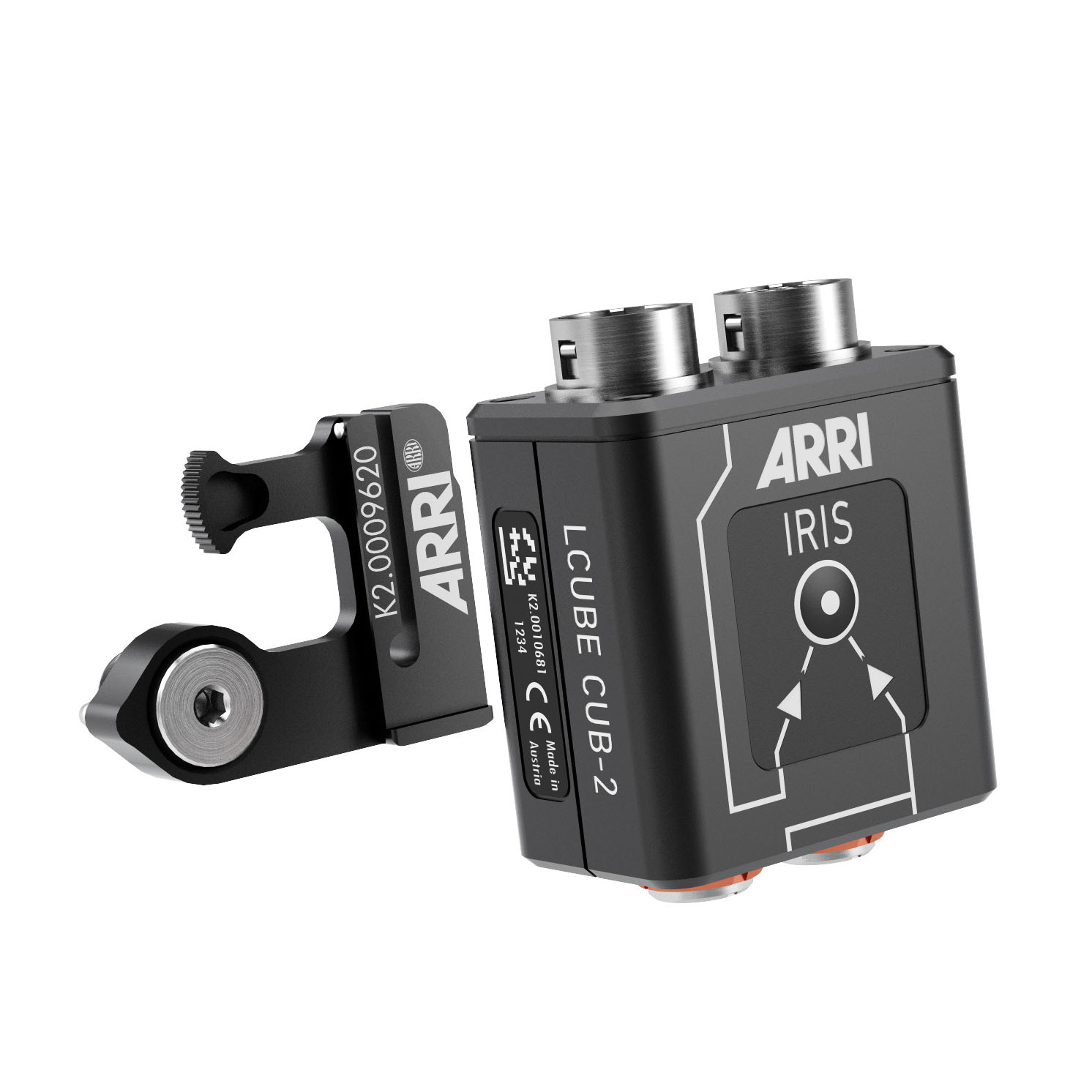

LCUBE CUB-2 Basic Set
LCUBE CUB-2 Basic Set
Adapts servo-zoom lenses (Hirose 12 pin) to LBUS (Lemo 4 pin). Enables Master Grips to directly control focus, iris and zoom of a servo-zoom lens. Provides a switch to select between iris control from camera (auto-iris via camera Hirose 12 pin interface) or Master Grips (via LBUS).The LCUBE has an integrated dovetail for mounting the LCUBE Bracket (K2.0009620) or the CLM-5/cforce mini Clamp Console 19/15 mm (K2.0006176).Includes:K2.0010681 1x LCUBE CUB-2K2.0009620 1x LCUBE BracketK2.0022328 1x Cable LENS/ENG (12p) - Hi (12p) analogNote: LBUS cables need to be ordered separately.

1.260,00 €*
Details

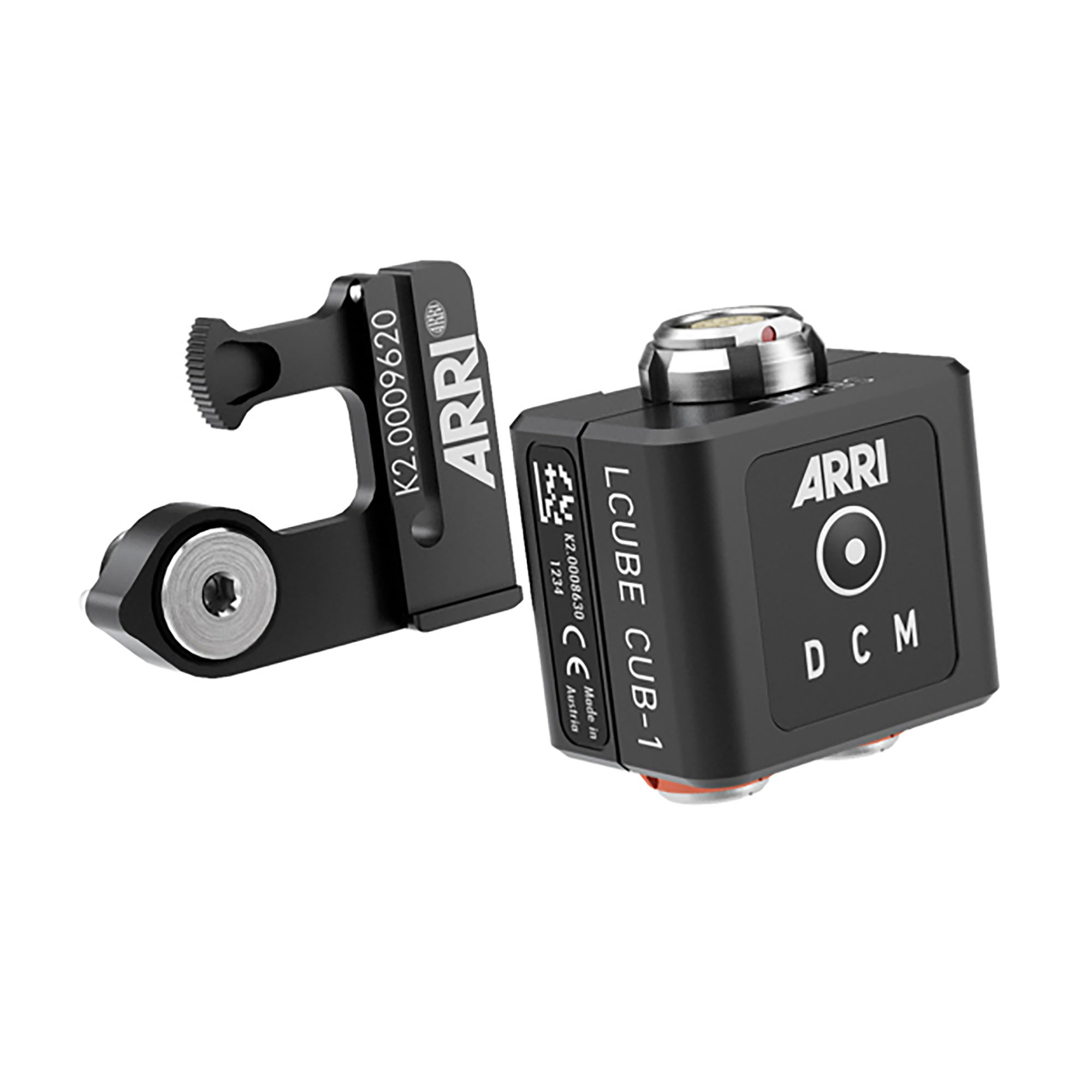

LCUBE CUB-1 Basic Set
LCUBE CUB-1 Basic Set
Miniature converter box converting the LBUS protocol to serial protocols and vice versa. Adapts Ultrasonic Distance Measure UDM-1 to ALEXA Mini and ALEXA Mini LF camera (for UDM-1 readout on WCU-4 handset). Provides two LBUS connectors (4 pin) and one SERIAL connector (7 pin). The LCUBE has an integrated dovetail for mounting the LCUBE Bracket (K2.0009620) or the CLM-5/cforce mini Clamp Console 19/15 mm (K2.0006176).includes:K2.0008630 1x LCUBE CUB-1K2.0009620 1x LCUBE BracketNote: LBUS cables need to be ordered separately.

990,00 €*
Details

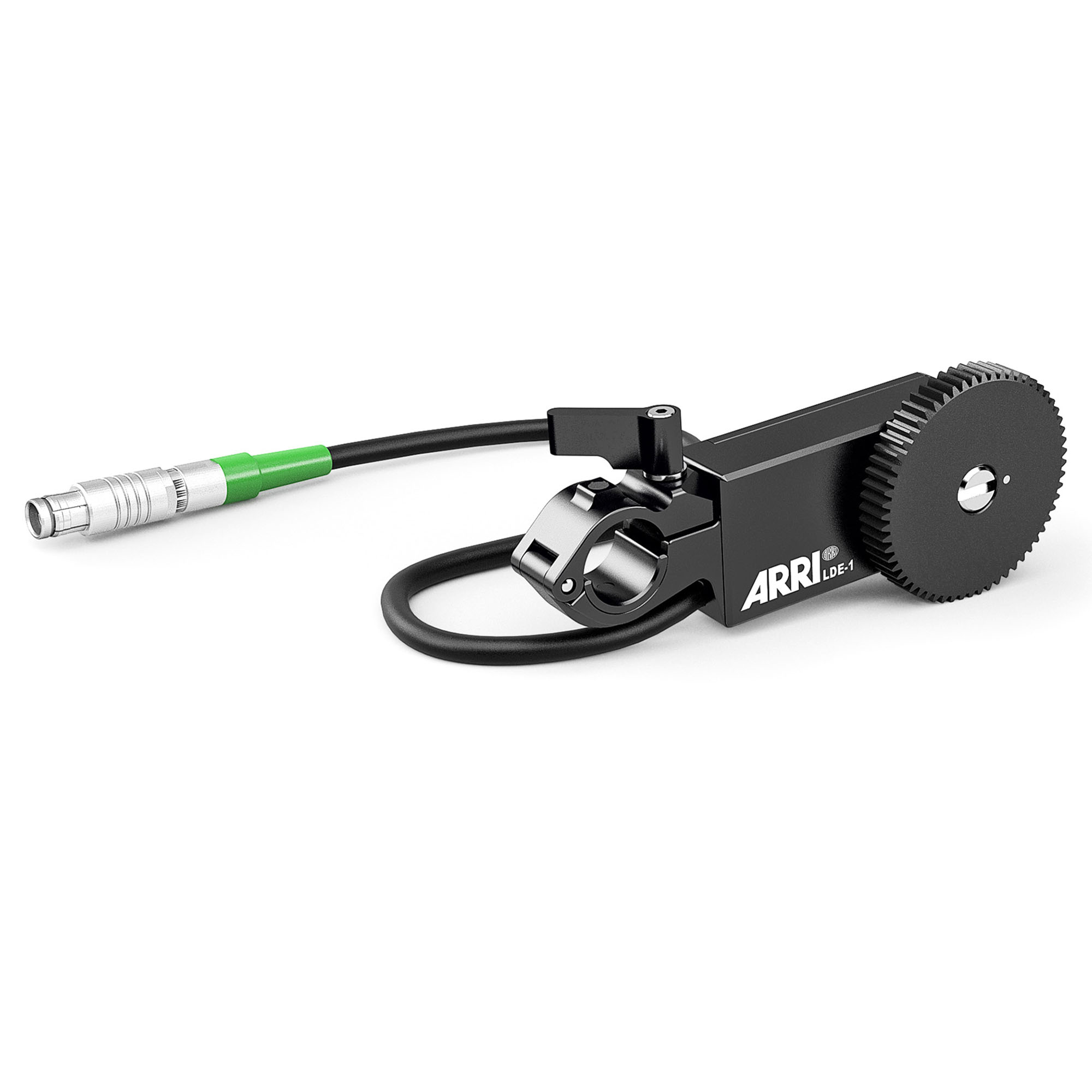

Lens Data Encoder LDE-1
Lens Data Encoder LDE-1
External lens encoder that connects to UMC-4 or ALEXA Plus motor sockets. Includes 19mm rod clamp and magnetic inserts for use with 15mm support rods. Compatible with CLM-3 inserts including the 5/8 inch inserts for Panavision rods (K2.66180.0).

700,00 €*
Details
