The CCP Live is based on the CCP-1 and has been expanded to include a HDMI downconverter, an HD SDI video out socket and a Tally out socket.This allows the operator to get a direct monitor video feed from the camera even when both video outputs are used for 2 x 6G video.The additional 1080 HD SDI video signal allows a control monitor to be connected to the camera if both video out sockets are already in use.If the camera is integrated into a multi-cam setup, the TALLY Gen. 2 system can be controlled via the Tally Out socket.Including:K2.0001967 1x L-BracketK2.0046784 1x CCP-LiveK2.0047286 1x Clamp 3/8in for RAB-1K2.0009337 1x Cable ALEXA Mini to CCP-1 0,5m/19inK2.0009367 1x Cable ALEXA Mini to MVF-1 0,5m/19inK2.0047301 1x Tally Trigger CCP-Live1080 HD SDI video downconverter.
Upgrade set that can be used to convert an existing CCP 1 into a CCP live.NOTEThis upgrade / conversion can only be carried out by the local ARRI service.Includes:K2.0001967 1x L-BracketK2.0047286 1x Clamp 3/8in for RAB-1K2.0047754 1x CCP-Live UpgradeK2.0009337 1x Cable ALEXA Mini to CCP-1 0,5m/19inK2.0009367 1x Cable ALEXA Mini to MVF-1 0,5m/19inK2.0047301 1x Tally Trigger CCP-Live
The IP box allows TCP-IP communication between the stabilisation systems: SRH-360, 360 EVO, TRINITY 2, TRINITY 2 with Pan Axis Module, as well as the remote control RCP-2, RCP-2 EVO and the RCP-3.Interfaces:Power In 2pin Lemo (7V- 36V max. 7,5W)FS CAN 4pin FischerLBUS 4pin Lemo LAN Ethernet RJ45
The external radio module offers reliable wireless communication over 2.4 GHz between the remote control and the Stabilized Remote Head 360 EVO and SRH-3 and SRH-360. The range of up to 1000 m/3280 ft. is based on so-called channel hopping.includes:K2.0037428 2x ERM-2400, SRH, Single ModuleK2.0033763 2x ERM-2400 Rubber Duck AntennaK2.0033762 2x SRH FS CAN Bus Cable, 1m/3.2ftK2.0033761 1x ERM Power Cable, ERM-2400 & ERM-900Range: Up to 1000 meter / 3280 ft.For 360 EVO, SRH-3, SRH-360, TRINITY 2
An ERM-2400 LCS set of radio modules basically extends an LCS/LBUS/EXT (CAN bus) cable connection over air. As such, it can connect ARRI and cmotion hand units to cameras and motor controllers and they behave as if they were hardwired, but with an exceptionally great wireless range (up to 1,000 m/3,280 ft).includes:K2.0037440 2x ERM-2400,LCS, Single ModuleK2.0033763 2x ERM-2400 Rubber Duck AntennaK2.0036900 2x ERM LCS to FS CAN Bus Adapter Cable, 0.2m/0.65ftK2.0036903 2x ERM LBUS to FS CAN Bus Adapter Cable, 0.2m/0.65ftK2.0036901 1x ERM EXT. to FS CAN Bus Adapter Cable, 0.2m/0.65ftK2.0036902 1x ERM D-Tap Pwr Cable, 0B Lemo 2-pin to D-Tap, 1m/3.2ftK2.0033762 2x SRH FS CAN Bus Cable, 1m/3.2ftCompatibility:The ERM-2400 LCS module is compatible with equipment supporting LCS, EXT and LBUS protocols. A pair of ERM-2400 LCS modules can replace a cabled connection between two devices, for example:• WCU-4 or SXU-1 and ALEXA Plus camera (LCS socket)• WCU-4 or SXU-1 and ALEXA Mini camera (EXT socket)• WCU-4 or SXU-1 and ALEXA Mini LF camera (EXT socket)• WCU-4 or SXU-1 and UMC-4 (LCS socket)• Master Grip or OCU-1 and cforce motor• cmotion cPRO hand unit and cforce motor• ARRI Wheels DRW-1 and Digital Encoder Head DEH-1NOTEThe OCU-1 override function is not supported with ERM-2400 LCS, because override is not possible in hardwired mode neither.NOTEThe basic set is only supplied with adapter cables.Recommended and required optional extension cables:SRH FS CAN Bus Cable, 10m/32.8ft (K2.0019302)SRH FS CAN Bus Cable, 25m/82ft (K2.0019301)SRH FS CAN Bus Coupler, 0.2m/0.65ft (K2.0019300)For 360 EVO, SRH-3, SRH-360, TRINITY 2
The external radio module offers reliable wireless communication over 900 MHz between the remote control and the Stabilized Remote Head 360 EVO and SRH-3 and SRH-360. The range of up to 3000 m/6560 ft. Is based on so-called channel hopping.includes:K2.0037425 2x ERM-900, SRH, Single ModuleK2.0033765 2x ERM-900 Rubber Duck AntennaK2.0033762 2x SRH FS CAN Bus Cable, 1m/3.2ftK2.0033761 1x ERM Power Cable, ERM-2400 & ERM-900Range: Up to 3000 meter / 6560 ftFor 360 EVO and SRH-3 and SRH-360

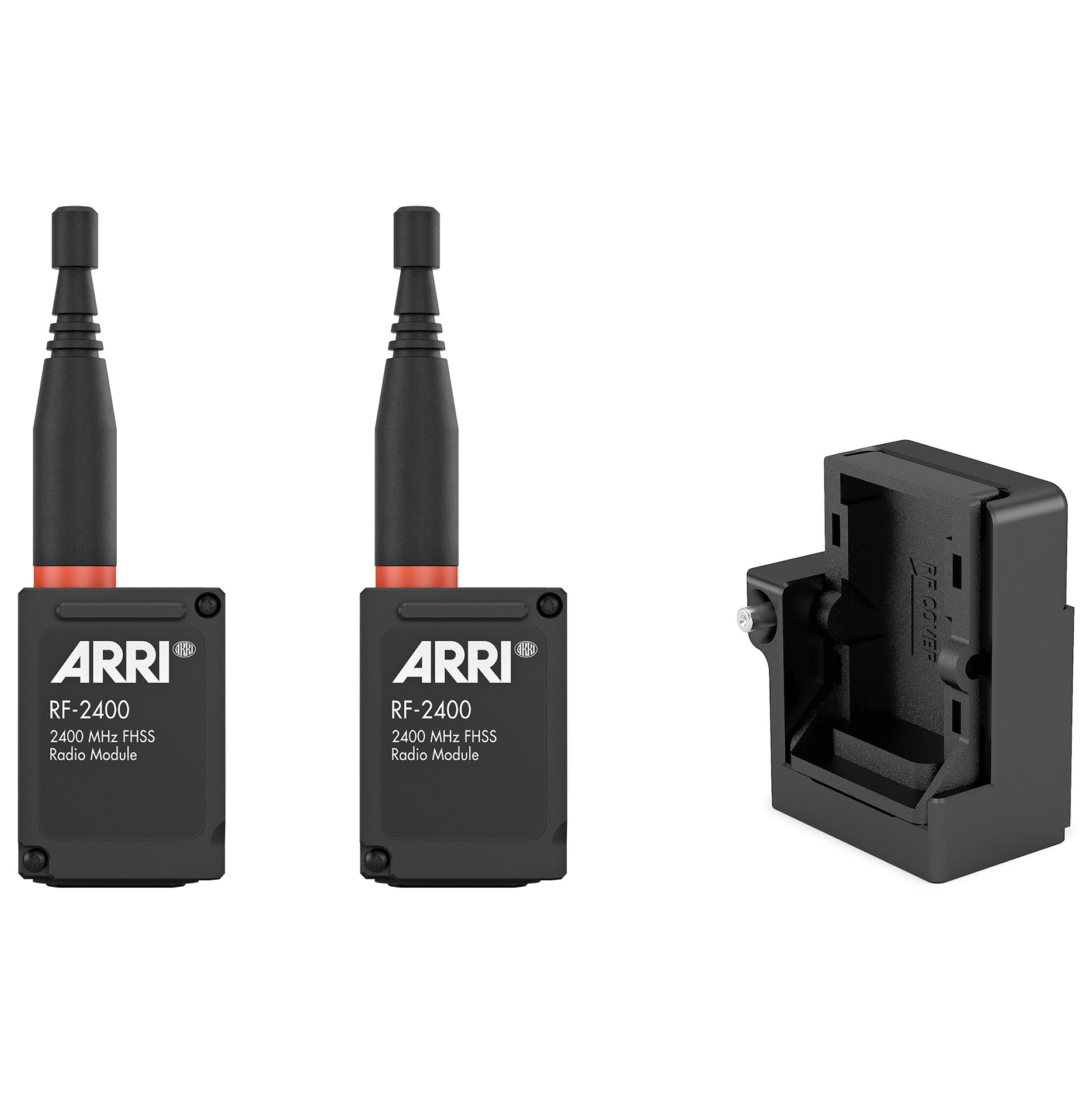

Set of two exchangeable radio modules for TRINITY 2.Point-to-point communication for connecting RCP-3 to the TRINITY 2Frequency: 2400 MHzModulation: Frequency-hopping spread spectrum (FHSS)Number of channels: 100includes:K2.0038704 1x RAT-1, Radio Adapter TRINITY 2KK.0039984 1x RF-2400 Radio Module 2400 MHz FHSS Set (2x)K2.0033763 2x ERM-2400 Rubber Duck AntennaNOTEFor TRINITY 2
Mounting Bracket for the TRINITY 2 head to addapt the RF-2400 Radio Module 2400 MHz FHSS Set (KK.0039984).The two rubber duck antennas enable easy use in the TRINITY 2 head.includes:K2.0038704 1x RAT-1, Radio Adapter TRINITY 2K2.0033763 2x ERM-2400 Rubber Duck AntennaFor TRINITY 2
